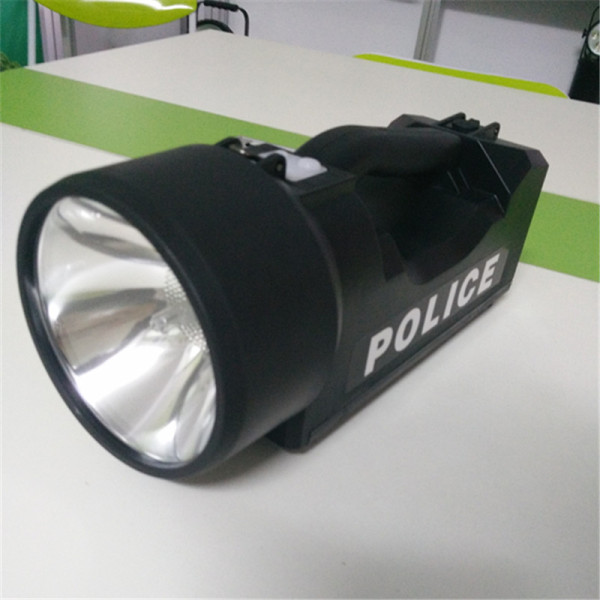

Portable high-light search lamp xenon lamp field investigation portable HID searchlight SW2360 Item NO.: Portable high-light search

Technical parameters

1. Rated voltage: dc10-16v

2. Rated capacity: 6.6Ah

3. Rated power: 35W

4. Luminous flux: 4000lm

5. Color temperature: 6000K

6. Beam Angle: 0.1-15°

7. Bulb life: 3000h

8. Continuous discharge time: ≥2.5 hours

9. Charging time: 4-5 hours

11. Effective range: 1.5km

12. Overall dimension: 310*130*150mm

13. Weight: 1.9kg

14. Protection grade: IP65

The performance characteristics of

1. The shell is processed with imported materials, with a completely sealed design, with good waterproof performance and can be used normally in heavy rain.

2. The light source is ultra-white HID xenon gas discharge lamp with high luminous efficiency and color temperature of 6000K. The light color is close to daylight sunlight and the brightness is more than 3 times that of halogen lamp.

3. The transparent parts are made of imported high quality tempered glass, with extremely high light transmittance. The reflective cup is designed with special light distribution curve, so that its reflective efficiency reaches the highest level and the concentration effect is good.

4, built-in high-storage polymer memory-free lithium battery, small size, light weight, large capacity, long life, low self-discharge rate, no external power supply.

5, intelligent protection circuit design, can effectively prevent the damage caused by overcharge, overdischarge and short circuit, cooperate with high quality stability stabilizer, work efficiency ≥ 90%, extend the service life of lamps and lanterns.

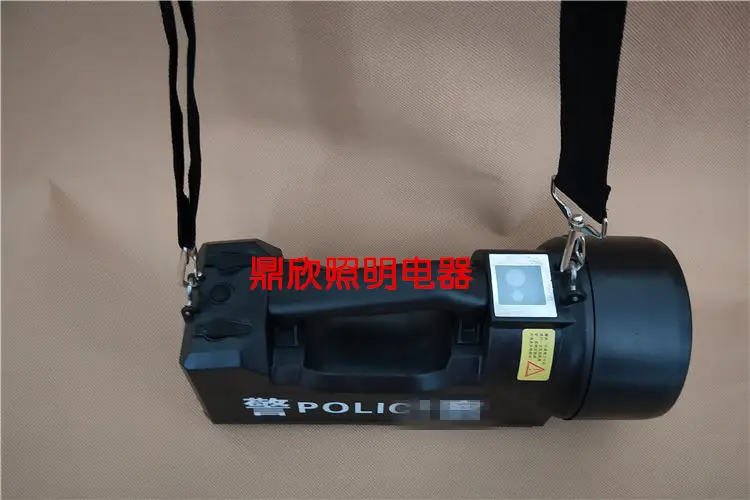

6, beautiful shape, can use a variety of ways such as portable, table to place, shoulder shoulder, easy to operate.

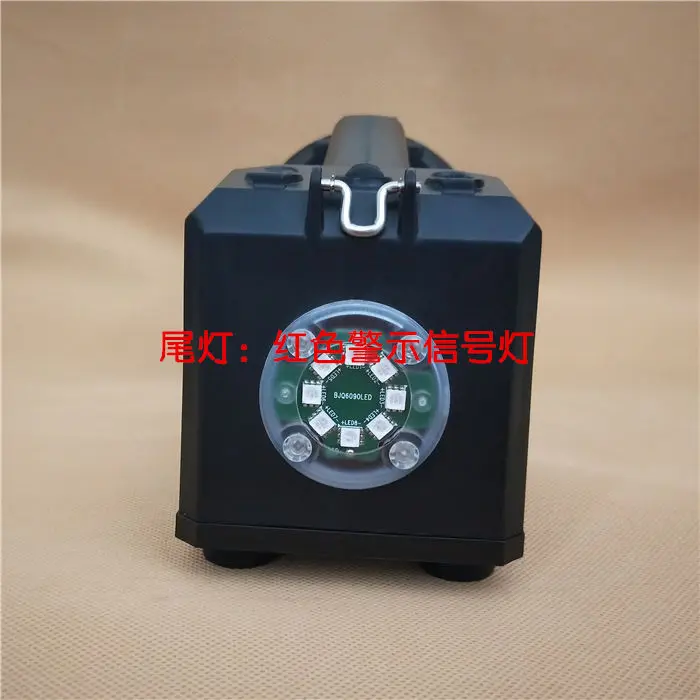

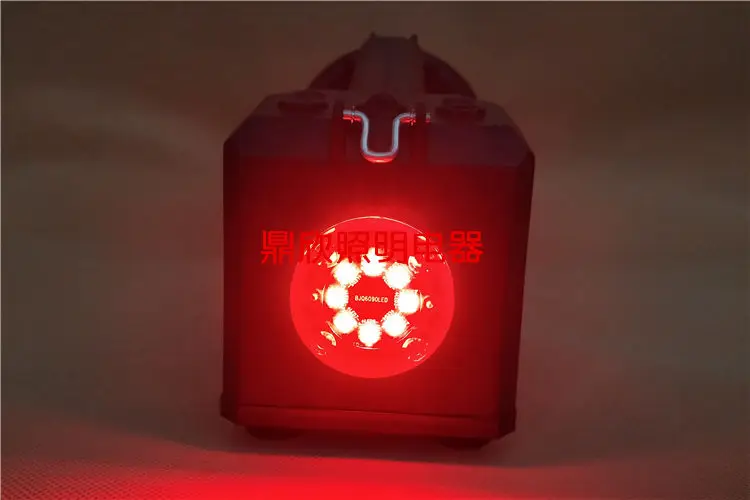

7. It is equipped with power indicator function to detect battery power at any time. The strobe function can realize signal indication and azimuth display.

The order number

Rated power (W)

SW2360 HID 35

SW2360 LED 30

SW2360 LED 15
