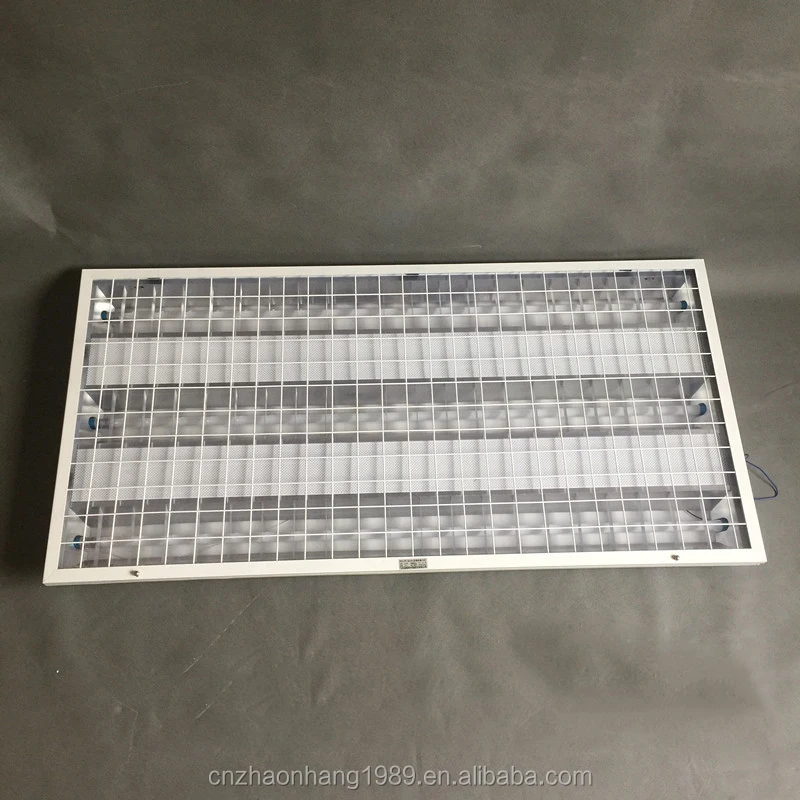

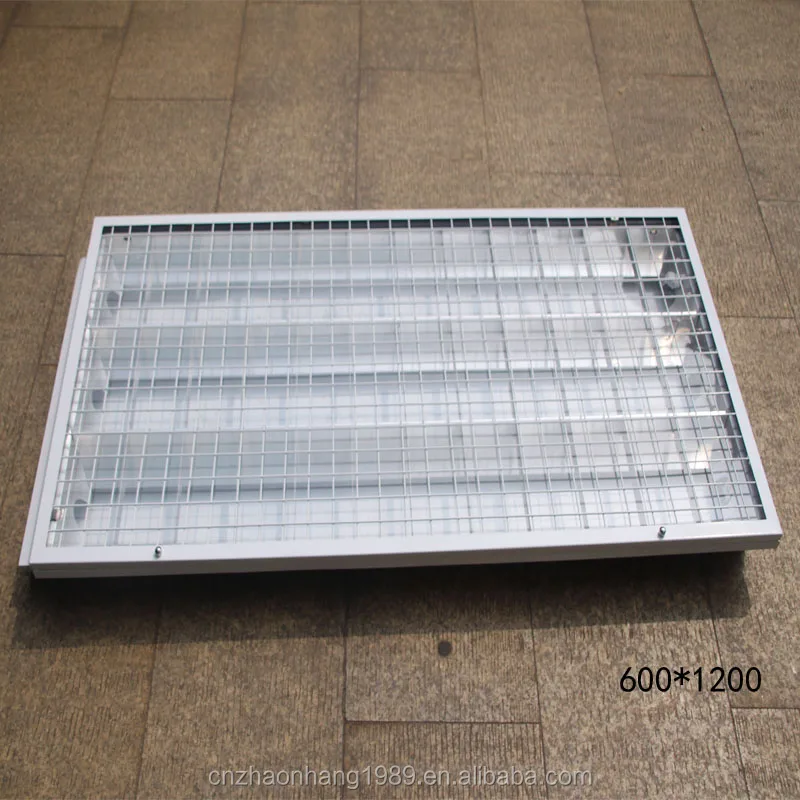

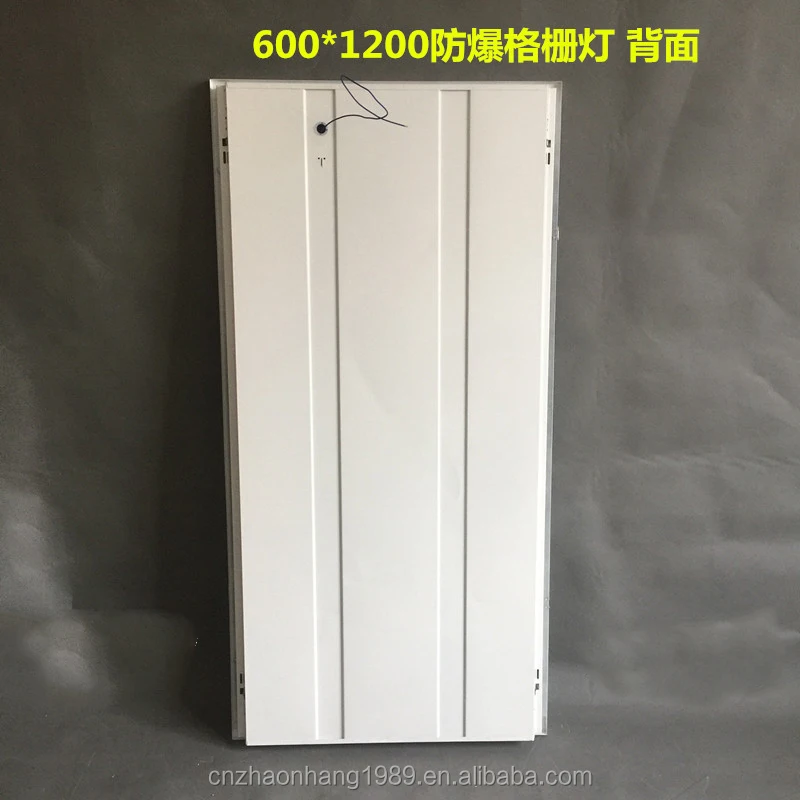

Explosion-proof grille lamp 600*1200 embedded ceiling light LED grille lamp gas station ceiling lamp Item NO.: 335083

Scope of application:

It is applied to indoor public places that need to be protected from impact, such as low-canopy indoor sports venues, factory areas and parking lots.

Material/process:

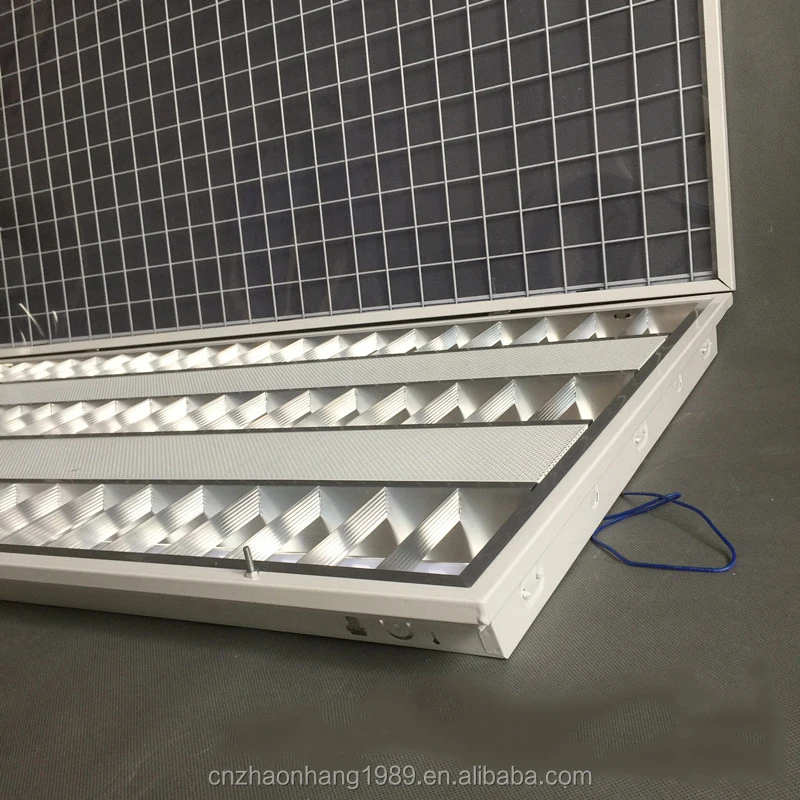

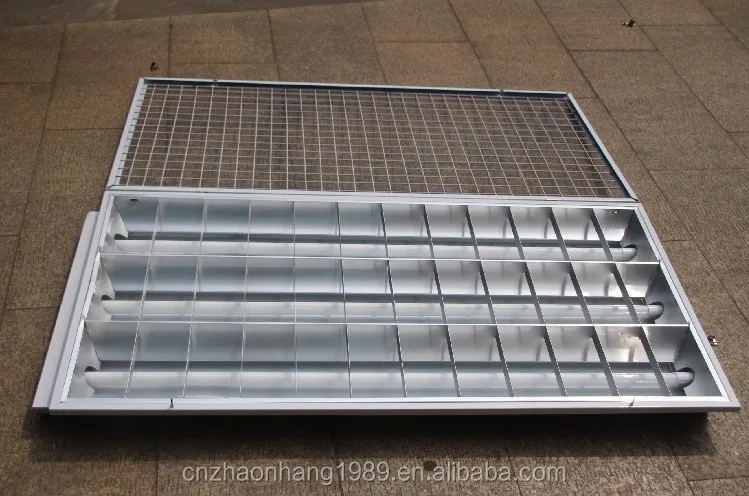

The shell of the lamp is made of high strength and high quality steel plate, the surface is treated by electrostatic spraying, the powder has strong adhesive force, uniform and bright, long-term use is not easy to peel off, the shell is welded, the welding spot and splicing gap are polished flat, the gap defect is completely not seen after spraying; Equipped with high-purity aluminized reflector, reasonable light distribution, to create a high brightness lighting environment, to meet the requirements of illumination in some special occasions; The surface cover with arch steel wire protection net can effectively prevent the impact of external objects on lamps and light sources.

Lamp holder and terminal are made of blocking PC material

High temperature resistance 90℃, high voltage resistance 300/500v

Can be equipped with emergency system, dimming system.

Installation/maintenance:

Ceiling type installation, or through the suspension system to do lifting;

Directly remove the protective net with bare hands, the light source can be replaced, line detection and other maintenance;

Technical parameters:

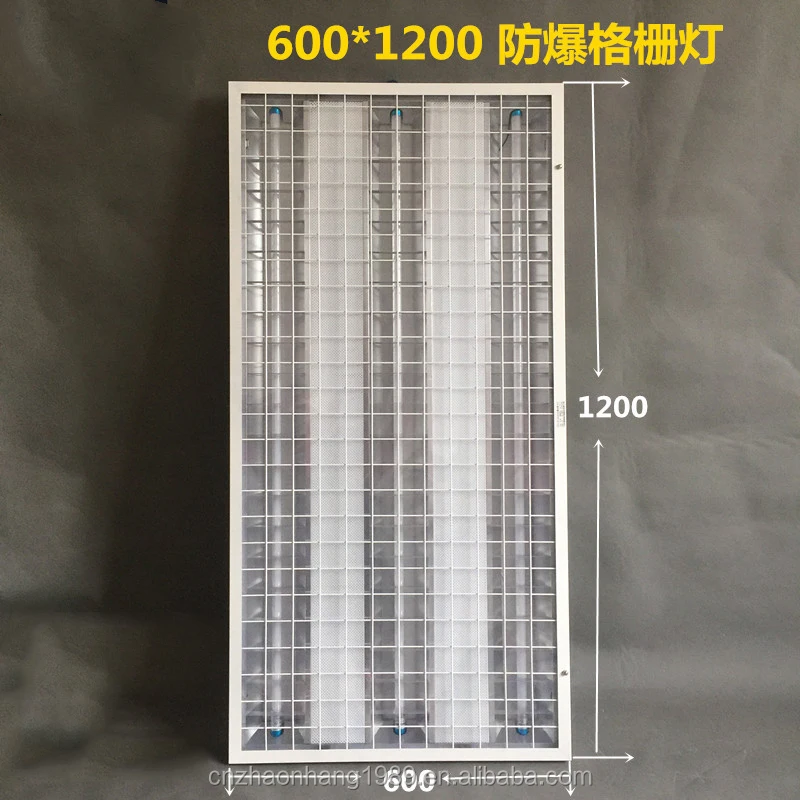

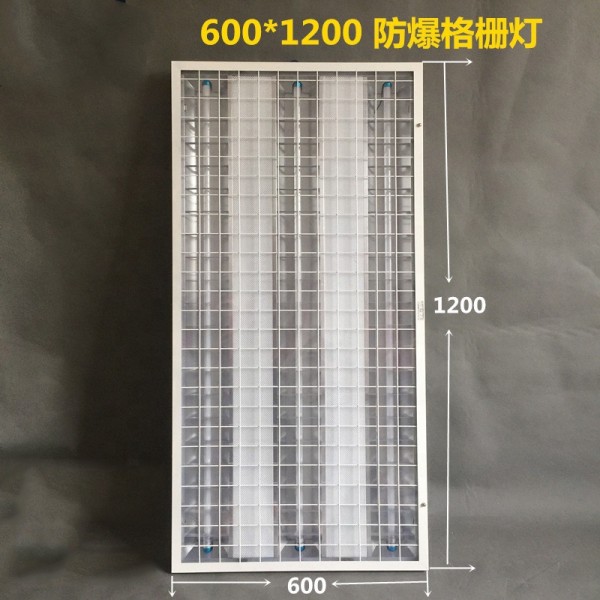

Overall dimension: 1200*600*85mm

Opening size: 1170*570mm

Material: cold rolled steel plate, surface powder spraying, powder spraying material thickness is 0.7

Power: 3 * 20 w

Light source: LED light source

Protection grade: IP65

Explosion protection grade: Ex IIB T6
