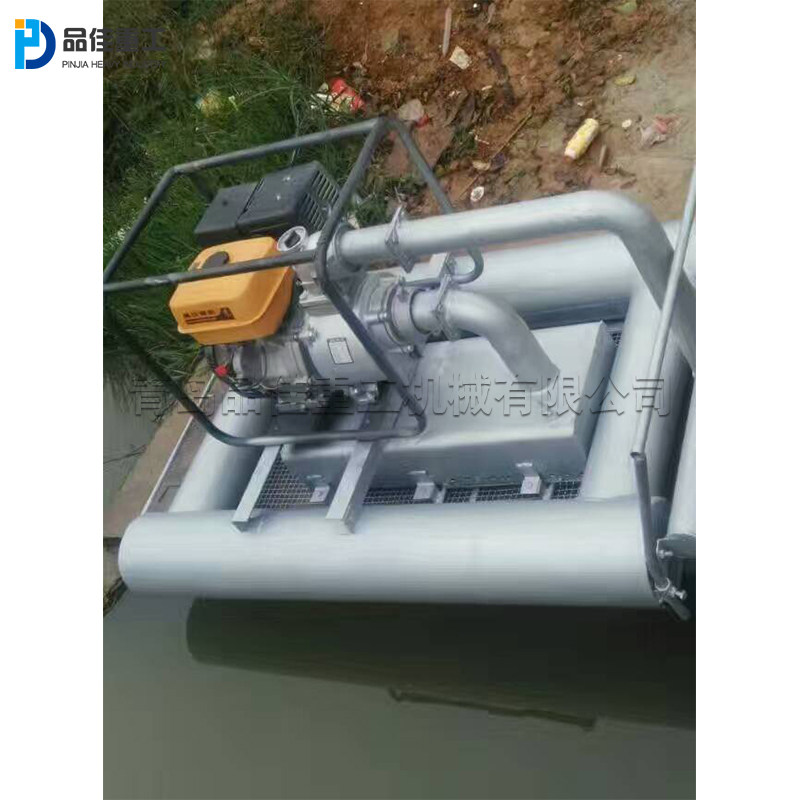

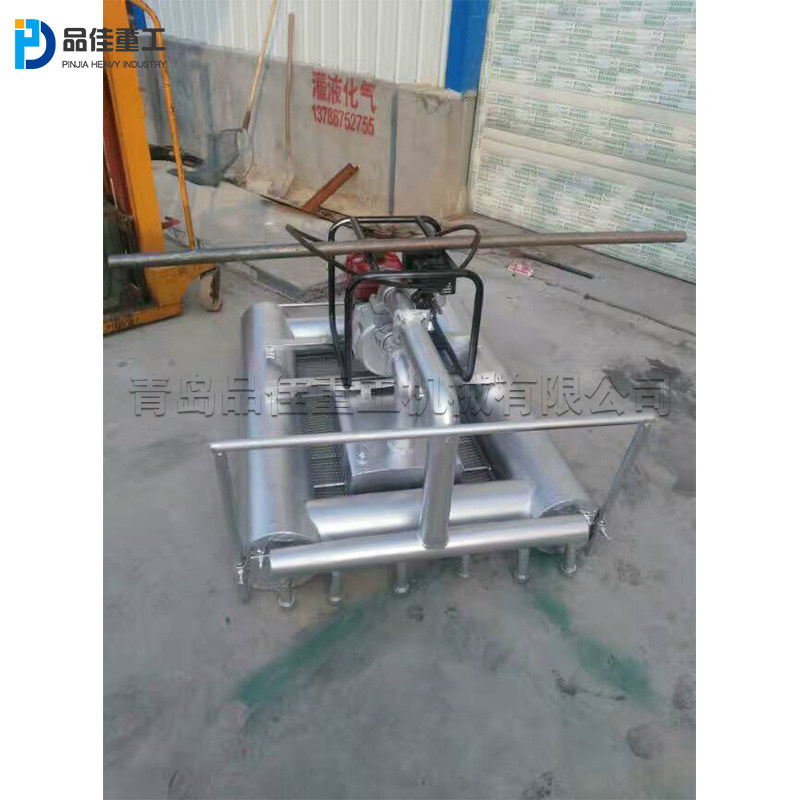

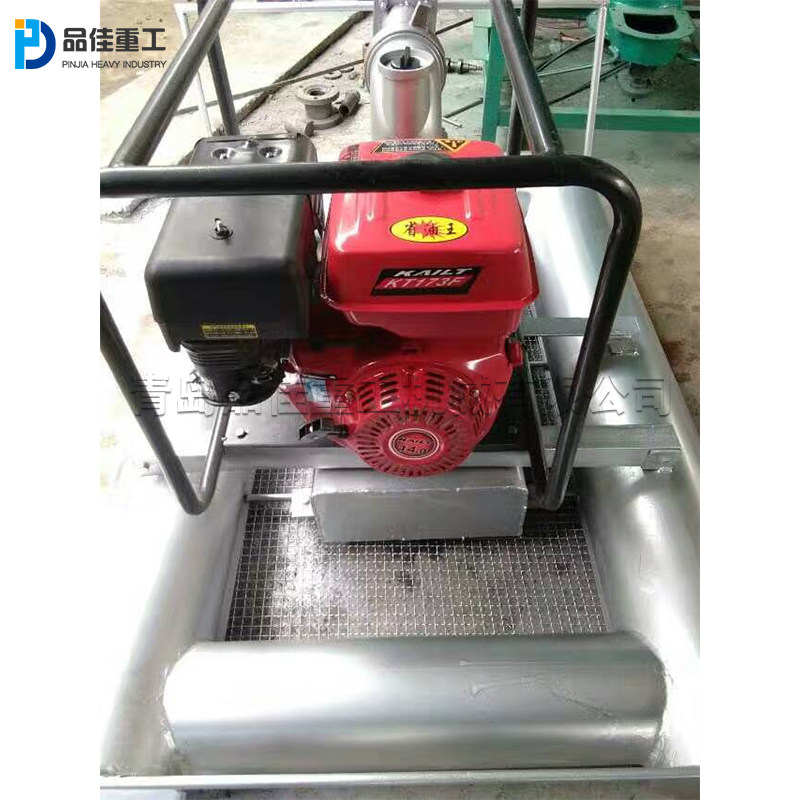

Pontoon type small lotus root digging machine Ship type small volume automatic lotus root picker Ship borne reciprocating water Item NO.: 1945439

According to the principle, lotus root digging methods are divided into mechanical type and jet type. Mechanical lotus root digging refers to digging the lotus root from the mud through the digging shovel or other mechanism fixed on the lotus root digging machine, and then separating the mud lotus root. However, due to the disorderly distribution of lotus root under the water, and the brittle branches of lotus root are easy to break, mechanical excavation is very easy to cause damage to lotus root. The jet lotus root digging adopts a high-pressure nozzle to wash away the soil covered on the lotus root, and the lotus root automatically surfaced by buoyancy, so as to achieve the separation effect of digging lotus root and mud lotus root. The water pressure can be adjusted to the appropriate pressure to minimize the coupling loss rate.

project

Specification value do-01

Overall dimension

1300*1300*700

Structural quality

160kg

structural style

Shipborne reciprocating water gun

auxiliary power

6.5kw

Operating range

2.6m

Suitable water depth

0.3—1.3m

Excavation depth

30cm

Net working hour productivity

0.019hm2/h

Open lotus root rate

≥96%

Injury rate of lotus root

≤3%

Skin breaking rate

≤4%
