Home>Explosion-proof electrical apparatus>ABC-80 Three phase Explosion proof traffic indicator Explosion proof slide wire indicator

ABC-80 Three phase Explosion proof traffic indicator Explosion proof slide wire indicator Item NO.: 1950553

Write a Review

US$ 75.00

Quantity: Stock ( 99 )

Estimate Shipping Cost

ABC-80 Three phase Explosion proof traffic indicator Explosion proof slide wire indicator

Product Name	ABC-80 Three phase Explosion proof traffic indicator Explosion proof slide wire indicator
Item NO.	1950553
Weight	3 kg = 6.6139 lb = 105.8219 oz
Category	Explosion-proof electrical apparatus
Creation Time	2022-05-03

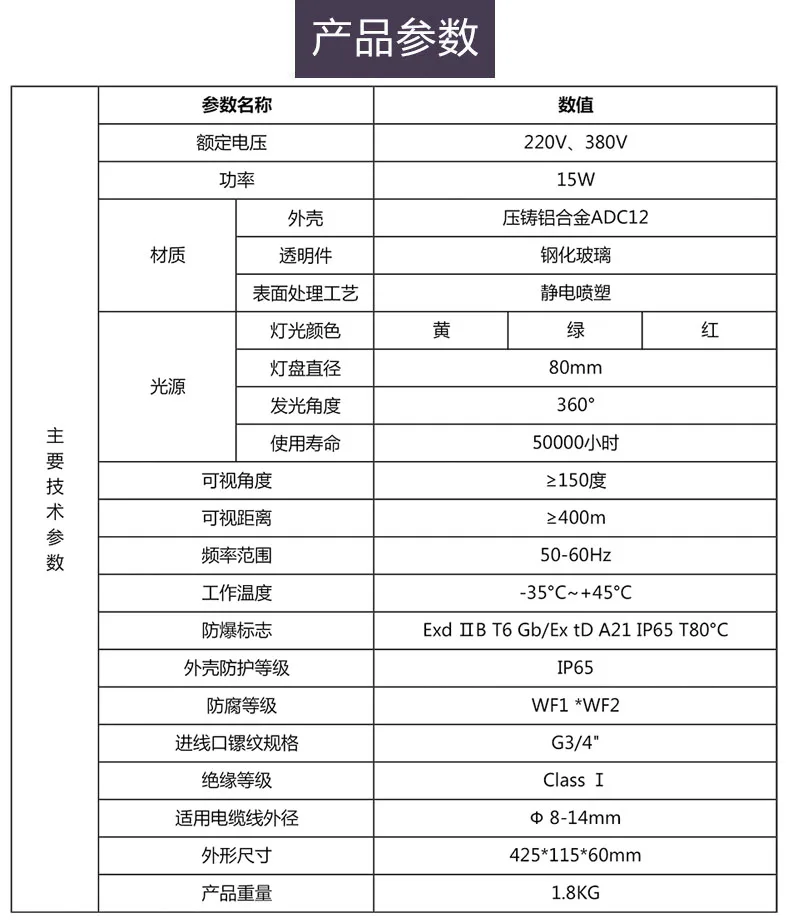

Parameter name
Rated voltage: 220V, 380V
Power 15W
Shell die cast aluminum alloy
ADC12
Surface treatment technology of toughened glass with transparent material
Color Huang Hong
Lamp panel diameter 80mm
Luminous angle 360 °
Service life 50000 hours
Main technical parameters
Visual angle ≥ 150 degrees
Visual distance ≥ 400m frequency range 50-60Hz
Operating temperature - 35 ° C to + 45 ° C
Explosion proof sign Exd Ⅱ bt6gb / ex tda21ip65t80 ° C
Enclosure protection class IP65
Anti corrosion grade WF1 * WF2
Screw pattern specification of inlet G3 / 4
Insulation class I
Outer diameter of tongue cable Φ 8-14mm
Overall dimension 425 * 115 * 60MM
Product weight 1.8kg
