Label Mounting Machine Automatic Label Cutting Machine Commercial Label Printing Machine Item NO.: 1950373

Write a Review

US$ 23000.00

Quantity: Stock ( 20 )

Estimate Shipping Cost

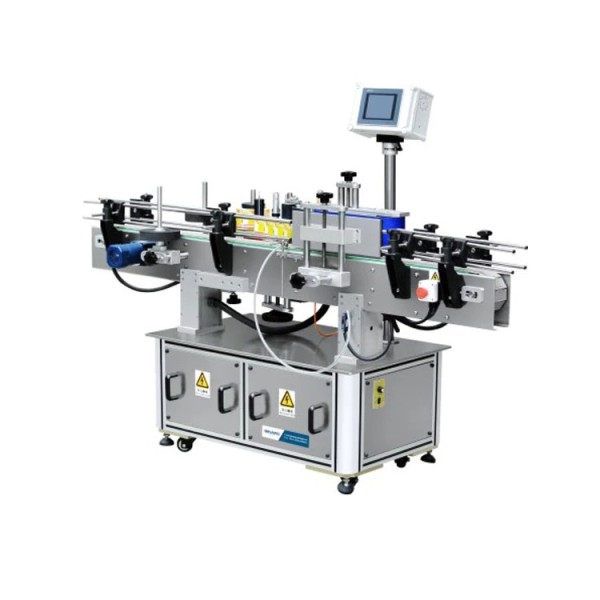

Label Mounting Machine Automatic Label Cutting Machine Commercial Label Printing Machine

Product Name	Label Mounting Machine Automatic Label Cutting Machine Commercial Label Printing Machine
Item NO.	1950373
Weight	3 kg = 6.6139 lb = 105.8219 oz
Category	Explosion-proof electrical apparatus
Creation Time	2022-05-02

Product Description:

							1.Suitable for single and double side labeling of flat bottles,round bottle,special shaped bottles and square bottle products in daily , household , medicine , food and other light industry industries.

							2.Optional automatic bottle uncrambler machine, can be directly connected to the front production line, automatic bottle feeding into the labeling machine, increase efficiency

							3.It can be equipped with ribbon printer machine, which can print production date and batch number on line, reduce the packaging process of bottle and improve production efficiency.

Labeling accuracy:	±1.0mm	Weight:	185Kg
Labeling speed:	Single header 50-60 pieces/minute	Applicable label inner diameter:	Ø76mm
Applicable product diameter:	Ø 25mm～Ø 150mm	Applicable label outer diameter:	Ø 260mm
Applicable label size:	Length: 20mm～600mm; Width: 20mm～180mm	Chain plate width:	82.6mm

						Aplication:


Main features:

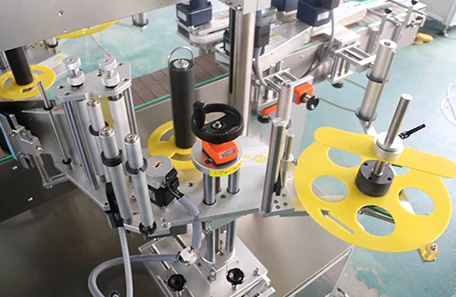

							◆ The label has a high degree of coincidence, the label tape is circumvented with a correction mechanism, the label does not deviate, the labeling part can be adjusted up and down, and the inclination is adjustable with a total of eight degrees of freedom. There is no dead angle in the adjustment, and the label has a high degree of overlap;

							◆ The labeling quality is excellent, the power soft roller is used to ensure the labeling quality, and the cylinder clamping roller mechanism improves the labeling accuracy. It is specially used for round bottle labeling, with high re-reading labeling accuracy and no bubbles;

							◆Reciprocating cylinder positioning products can be accurately labeled at the specified position of the product. One label or two labels can be selected at a time, which is especially suitable for the original flat front and rear symmetrical labeling;

							◆ Flexible application, stand-up bottle labeling, with automatic bottle separation function, can be produced on a stand-alone machine or connected to an assembly line;

							◆ Intelligent control, automatic photoelectric tracking, with the functions of nothing but no labeling, no label automatic correction and automatic label detection, to prevent missing labels and label waste;

							◆ High stability, the advanced electronic control system composed of Delta PLC+Delta touch screen+Keyence needle-shaped electric eye+German Leuze label electric eye supports 7×24 hours of operation;

							◆The adjustment is simple, the labeling speed, conveying speed, and the bottle separation speed can be adjusted steplessly, which can be adjusted as required;

							◆ Rugged and durable, adopting a three-bar adjustment mechanism to make full use of the stability of the triangle, the whole machine is solid and durable. Made of stainless steel and high-grade aluminum alloy, in line with GMP production requirements;
