Kbb-60/127v series explosion-proof incandescent lamp for mining (top) 60W 127V explosion-proof lamp for mining Item NO.: 335979

Main technical parameters:
Specification and model: dgs-60/127b

Rated power W: 60

Rated voltage V: 127

Operating current A: 0.39

Luminous flux lm: 540

Frequency: 50

Efficiency % : 48

Weight Kg: 2.2

Overall dimension mm: 145×170×240

Product features

1. The product has the structure of power breaking device, door cover connecting cable and quick opening, which can replace the light source on the spot. Very convenient to use and maintain.

2. The product has two voltage specifications: 127V or 220V.

3. Have red, blue lampshade to do indicator light.

4. Have top mouth, screw mouth light source.

Scope of application

This series of products are mainly suitable for underground coal mine with methane and coal dust explosion hazard and power supply voltage of 127V or 220V, which is used for lighting places such as roadway, adit, substation, pump room, underground parking lot and working face

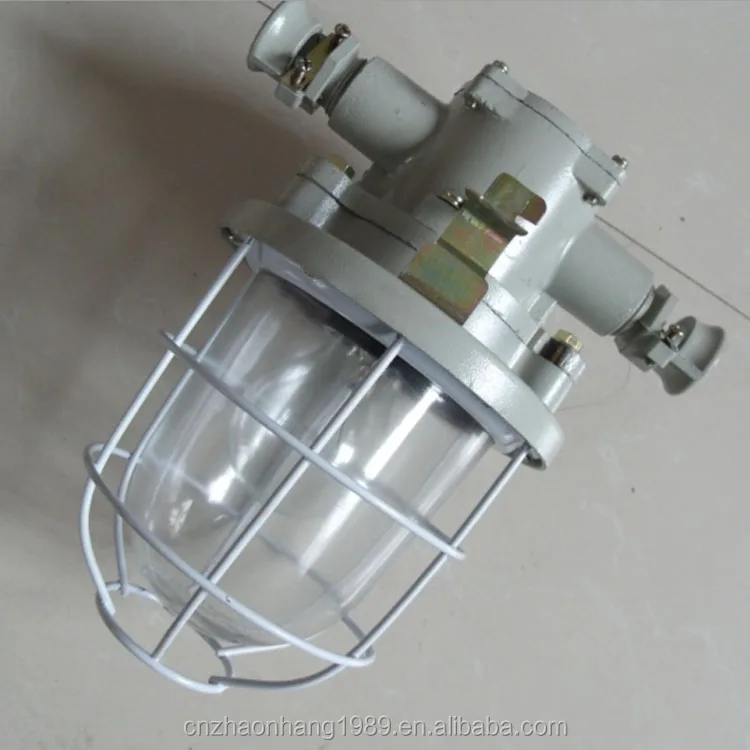

The shell of DGS explosion-proof incandescent lamp is die-cast by aluminum alloy. The transparent parts are made of high-strength tempered glass with good light transmittance, shock resistance and shock resistance.
The whole lamp USES flameproof and explosion-proof structure, which is suitable for lighting in the roadway and working face of coal mine where gas and coal dust are inflammable and explosive.
The rated working voltage of the lamp is 127V of mine lighting standard, and the light source is 60W incandescent bulb. The luminous flux is 500 lumens. The volume of the lamp is about 150x 270 in diameter.
DGS mine flameproof incandescent lamp is in line with the state and industry about explosion-proof lamps for coal mines
Specializing in the production of various DGS mine flameproof incandescent lamps

Mine explosion-proof incandescent lamp DGS mine explosion-proof incandescent lamp
DGS explosion-proof incandescent lamp features:
1. The voltage specification of the product is divided into: 127V
2. The product is equipped with power supply breaking device, light source replacement, door cover connecting cable and quick start structure. Convenient and safe maintenance.
3. Have top mouth, screw mouth light source.
4. Have red, blue lampshade to do indicator light.
