Garden machinery lawn conveyor Hydraulic power lifting device loading equipment Artificial lawn spreading trolley Item NO.: 1945368

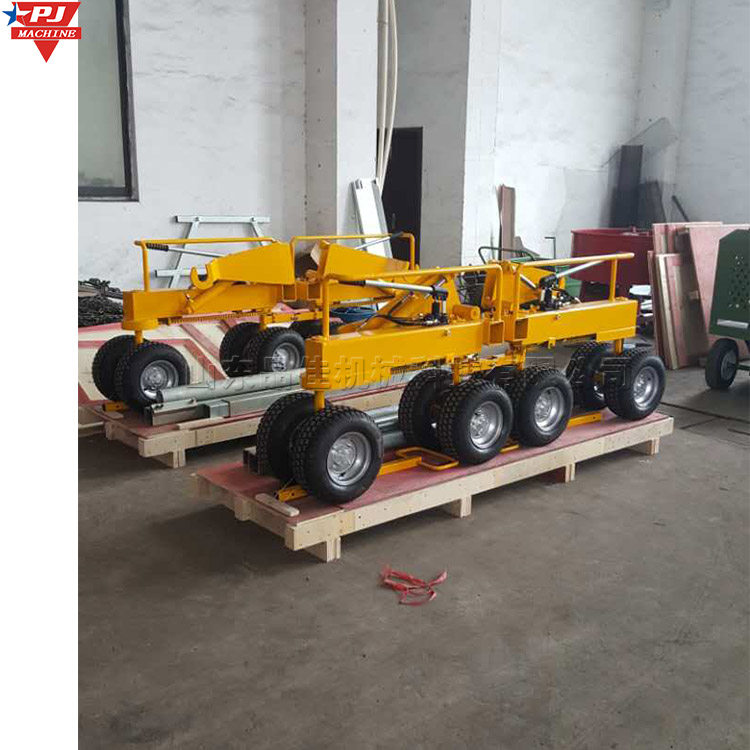

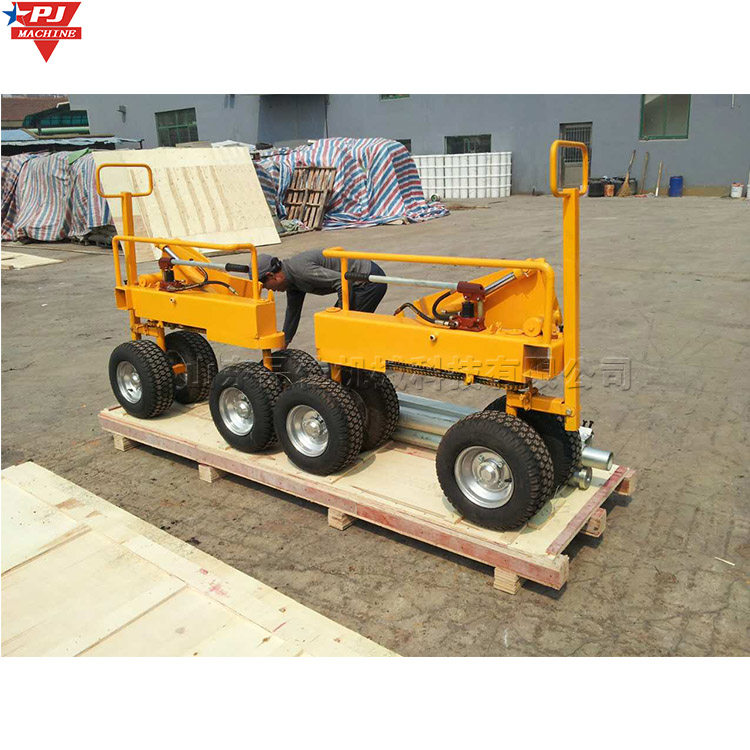

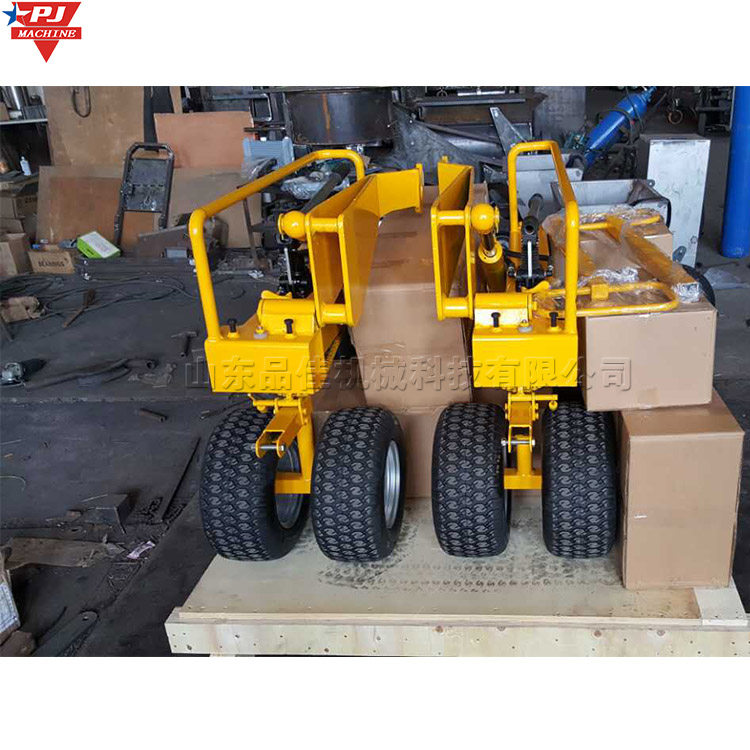

This machine is a small mechanical cart used for transporting and spreading artificial lawn. It is suitable for artificial lawn Zui with a large width of up to 5M.

The operation of the machine is completed by two independent carts (steering, transportation and lifting): each cart has two pairs of rotatable tires, and the steering can be controlled by pull rod and tire rod at the same time; The two trolleys are connected by square pipes, and the four pairs of wheels are loaded at the same time to ensure that the ground contact pressure Zui is small, so the trolleys can transport artificial grass rolls effortlessly; Both carts are equipped with hydraulic power lifting devices, each including a manual pump and hydraulic oil cylinder, so that the axle can easily lift the artificial straw roll.

Use width:

1-5 m

Lifting height:

1200 mm

Lifting force:

2000 kg

Machine weight:

250 Kg

Appearance dimension:

one thousand and three hundred × one thousand and one hundred × 1300mm
