Industrial PLC controller programmable logic controller and cabinet for vulcanizer vulcanizing machine in tire industry

Product Name	Industrial PLC controller programmable logic controller and cabinet for vulcanizer vulcanizing machine in tire industry
Item NO.	1942522
Weight	20 kg = 44.0925 lb = 705.4792 oz
Category	Explosion-proof electrical apparatus
Creation Time	2022-04-18

roduct Description

Programmable Logic Controller (PLC)

From initial design, through CAD drawings, to equipment selection and procurement, assembly and startup, our team offers a customized approach to our customer's unique applications.

We deliver solutions with high performance and flexibility to be effectively deployed within diverse industries and applications including Aluminum production, Mining and minerals processing, metals processing, petrochemical, water and wastewater, automotive, pulp and paper manufacturing, Original Equipment Manufacturers (OEM) and more.

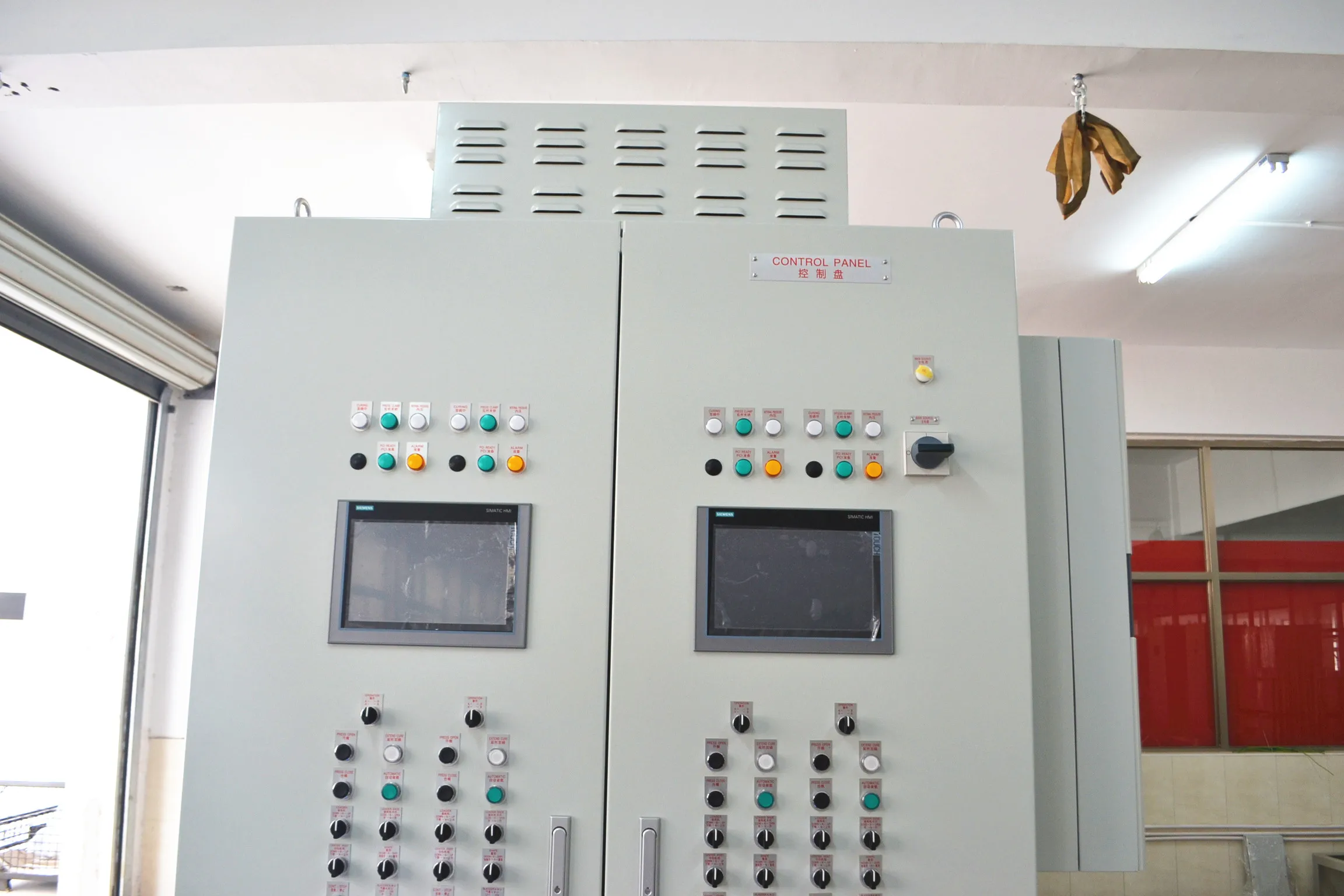

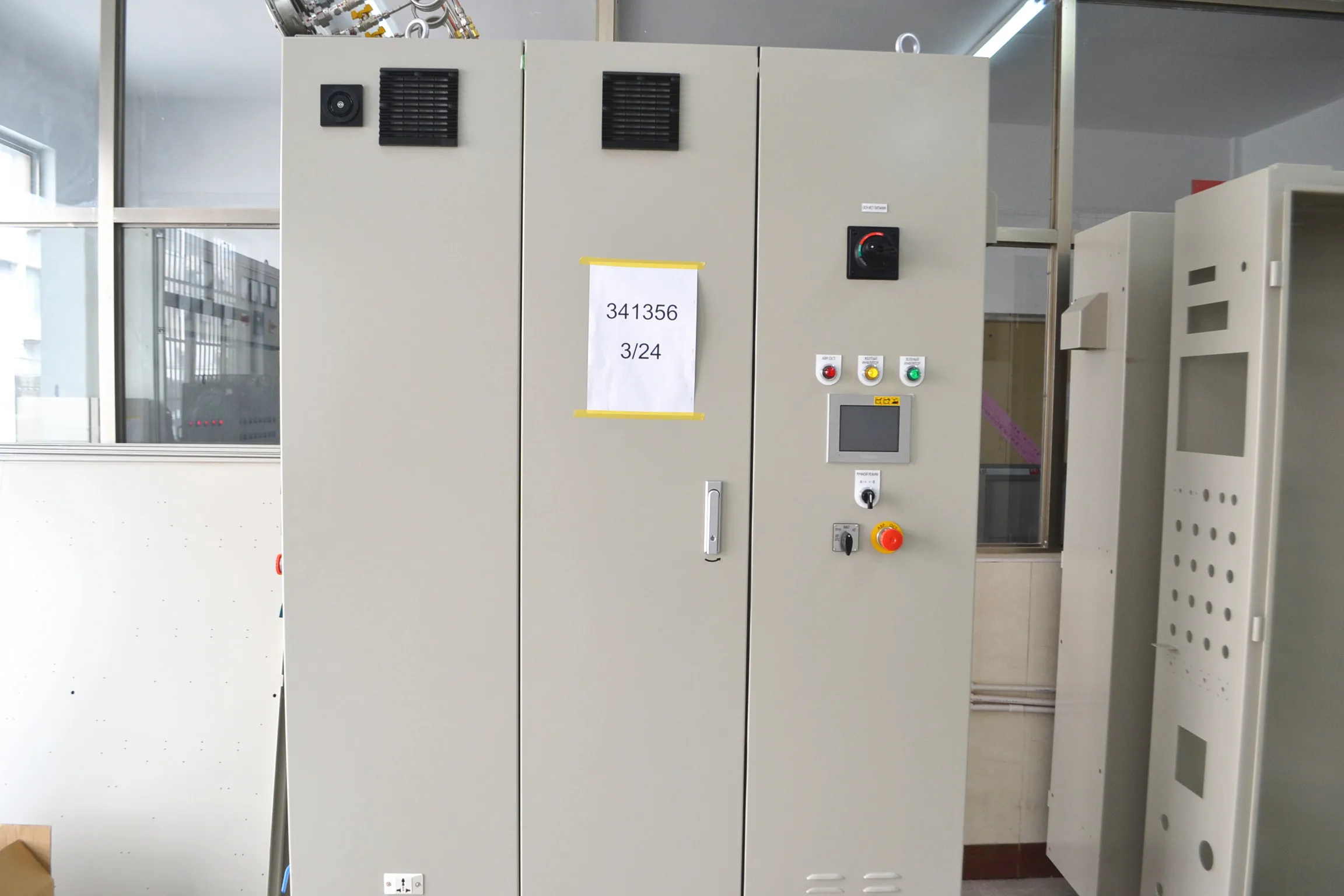

Standard Cabinet
Cabinet Specification	height	2200mm
	depth	650mm
	width	800mm
Structural Features	material	Use annealed medium carbon steel or galvanized steel
	Front door	The thickness of the steel plate is ≥1.5mm, which ensures that the system meets the standards for electromagnetic interference prevention
	internal	Single door with lock
	bottom	3mm mounting plate for mounting system control components
	top	Removable metal backing for easy cable entry
	Rubber seals are installed at the joints of all doors of the cabinet for sealing. Removable connectors on cabinets and cabinet doors for mounting grounding wires

Surface Treatment	frame and facade	Electrostatic spraying after brushing anti-rust paint
	mounting plate	Spray treatment
	colour	Light camel ash RAL7032
Cabinet Identification	• All cabinets have nameplates indicating the manufacturer, equipment name and model number,Required or critical index of major parameters, date of manufacture, etc. • All components inside the cabinet are marked and marked with text or symbols. • All input and output terminal blocks and each terminal of the cabinet are marked. • All input and output cables and each wire in the cabinet are marked. • All language, text, symbols and other specifications used should be based on Chinese and equivalent national standards.




Cabinet Installation	• The installation of the internal components of the cabinet complies with the installation specifications of each component. • The installation of the internal components of the cabinet ensures a firm installation and a reasonable component layout. • The installation of the internal components of the cabinet is consistent with the design drawings. • The wires and cables laid inside the cabinet comply with international or national standards, and their performance, parameters, functions, etc. meet the requirements of the design drawings. • All wiring inside the cabinet is neatly arranged with a cable duct and a collet. • The power cable, analog signal cable, and digital signal cable of the cabinet should be placed in different slots as much as possible.


Advantage	High reliability, versatility, easy installation, beautiful appearance, dustproof and anti-corrosion
if you have any special requiremnents, please feel free to let me know. We can customize it for you.

System configuration instructions:

• The system's central control station consists of a set of S7-400 controllers that are interconnected by a network switch and a shielded double cable. The S7-400 has a number of outstanding features, including modularity, rugged design, high scalability, complete communication capabilities, complete system functionality, compact centralized or distributed I/O connectivity.

• The system uses the powerful and standard general-purpose SlMATIC WinCC configuration software and STEP 7 programming software for hardware configuration, software programming, in-circuit debugging and fault diagnosis of the entire automation system.

• The SIMATIC NET Industrial State Network for the connection of system operator stations and central control stations guarantees the reliability of data transmission between all levels and components of the plant. The industry adopts the TCP/IP protocol in the state network, and the communication rate can reach 100 Mbit/s.

• The PROFIBUS-DP process field bus for connecting the central control station and the field control station of the system fully guarantees the reliability of the system communication. The fast rate of the field bus can reach 12Mbit/s.

• The DELL IPC is selected for the operator station and engineer IPC, which fully guarantees the reliability of the hardware system of the central operator station.

• The four operator stations configured by the system are fully redundant and hot standby. When any one of the operating stations fails, any other operating station can take over the work, which fully ensures the interchangeability of the operator station.

• The system operator station has a variety of operating levels, has a good operational safety, and is designed with a full Chinese interface, easy to use.

• The system is also used as an engineer station for the operator station to install a modem and remote maintenance software to achieve remote maintenance of the system. In the event of a system failure, maintenance personnel can remotely diagnose and maintain the system through the local telephone network.

• The controllers, relays, DC power supplies and terminal blocks of the central control station and the field control station are installed in the standard control cabinet. The control cabinet is standard, versatile, reliable, easy to install, beautiful in appearance, dust-proof and moisture-proof. Main features such as anti-corrosion and anti-electromagnetic interference.

• The system is very scalable, and has been fully considered for expansion capacity, which can be easily extended for larger expansion needs, and the system does not need to be replaced when upgrading or upgrading. Users save on upgrades or expansion costs. In addition, the system adopts the standard data interface and applies the standard communication network. It has good openness and can be easily connected with other computer systems to form a whole plant-wide system with integrated management and control.
