Home>Explosion proof lamp>FAD-E50b1BGL-200S waterproof and dustproof wall lamp

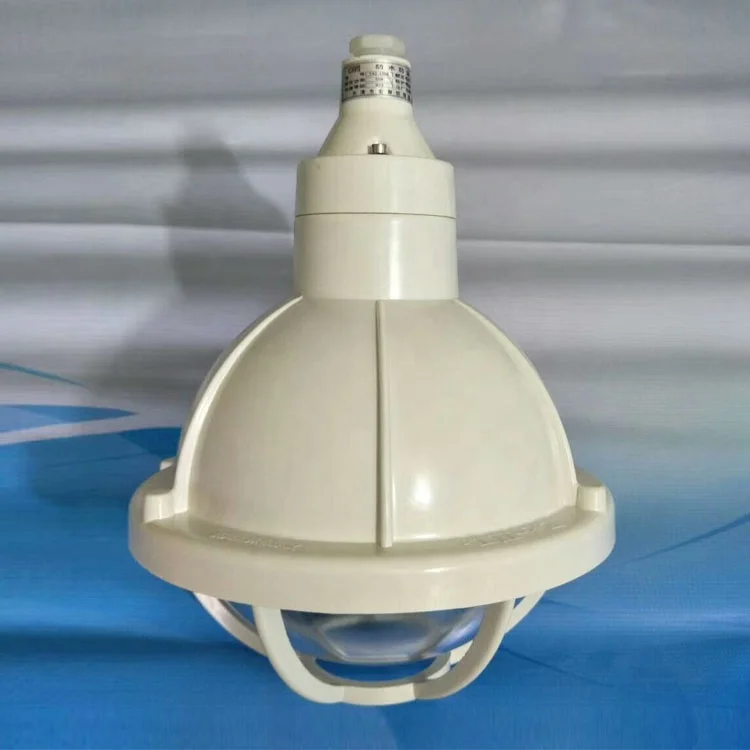

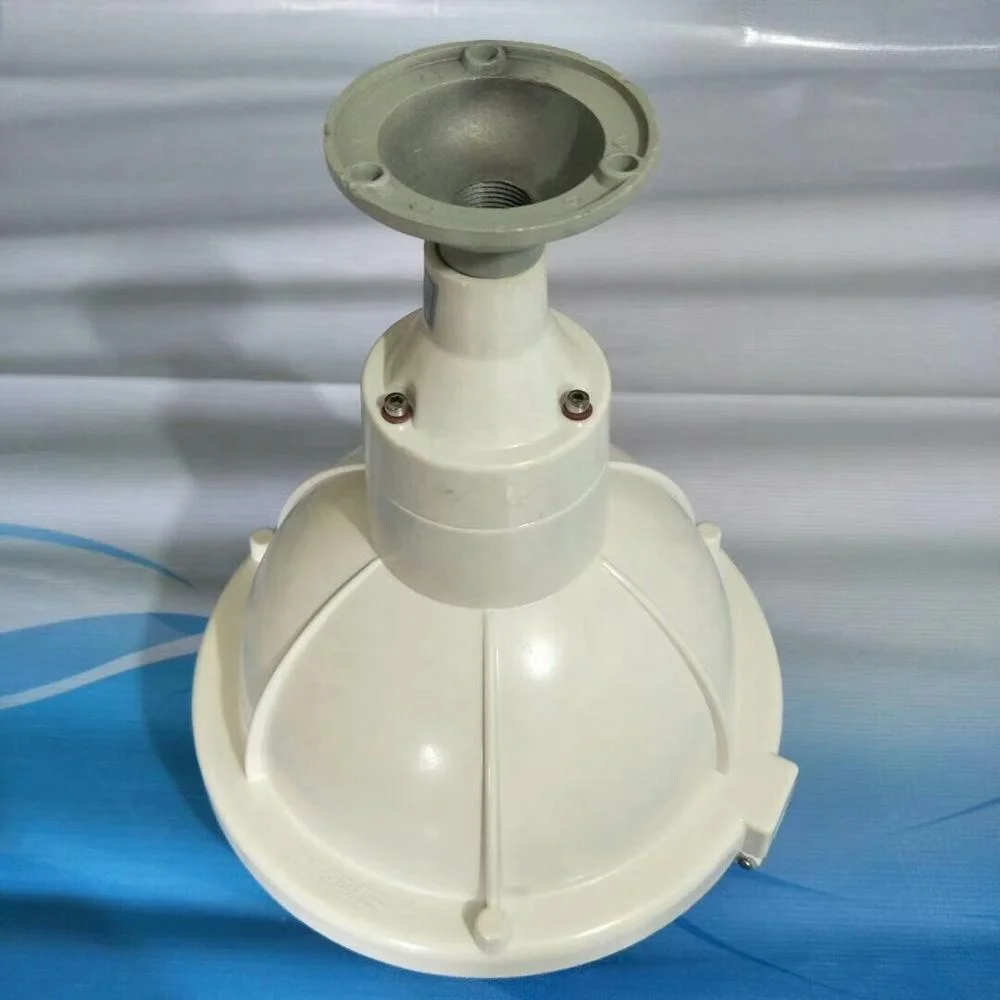

FAD-E50b1BGL-200S waterproof and dustproof wall lamp Item NO.: 335158

Write a Review

US$ 15.00

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Product Name	FAD-E50b1BGL-200S waterproof and dustproof wall lamp
Item NO.	335158
Weight	1 kg = 2.2046 lb = 35.2740 oz
Volume	0.02 CBM
Category	Explosion proof lamp
Creation Time	2020-02-12

Packaging & Delivery

Selling Units:: Single item

Single package size:: 30X20X15 cm

Single gross weight:: 1.5 kg

Package Type:: Carton packaging

Lead Time :

Quantity(Pieces)	1 - 20	>20
Est. Time(days)	2	To be negotiated



I. introduction of BGL200S increased safety explosion-proof and anticorrosive lamp
Suitable for explosive gas environment zone 2;
Suitable for IIA, IIB, IIC explosive gas environment;
Suitable for temperature groups t1-t3;
Suitable for incandescent lamp, mercury vapor lamp;
It is suitable for explosive and dangerous environment such as oil mining, storage, chemical industry, medicine, military industry and military facilities.

Ii. Technical parameters of BGL200S increased safety explosion-proof and anticorrosive lamp
Explosion mark: ExeIIT3
Rated voltage: AC220V
Lamp holder specification: E27 light source: B200, Z125, Z160
Protection level: WF2
Introduction port specification: g3/4
Suitable for cable diameter: Φ 9 mm - Φ 14 mm

Iii. Features of BGL200S increased safety explosion-proof and anticorrosive lamp
The shell is made of reinforced glass fiber unsaturated polyester resin engineering material.
High strength tempered glass lampshade;
The exposed fastener is made of stainless steel with high anticorrosive performance.
The joint surface is equipped with sealing gasket, which is waterproof and oil-resistant, with good protective performance.
The installation mode is various, adopt the buckle structure, the slipknot bolt fastens, can open quickly, easy to install and maintain;
