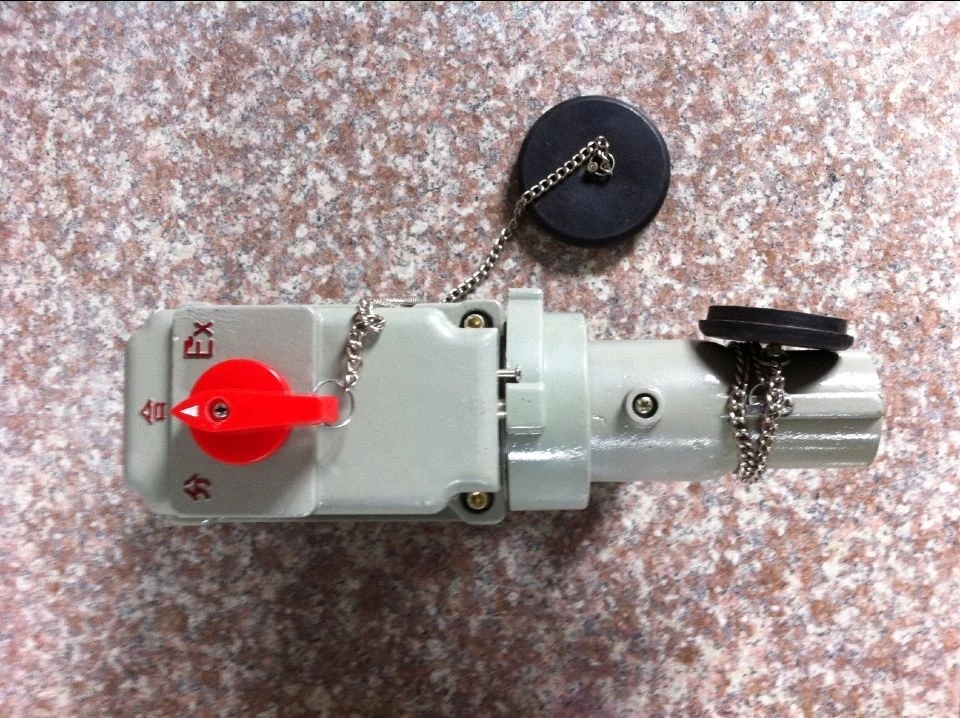

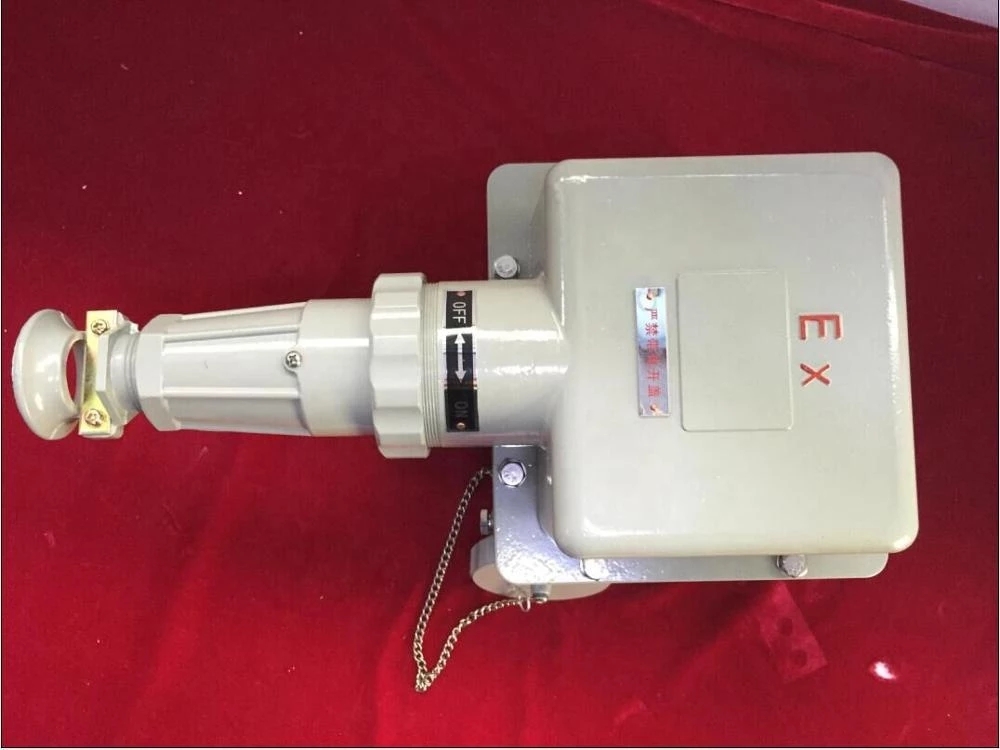

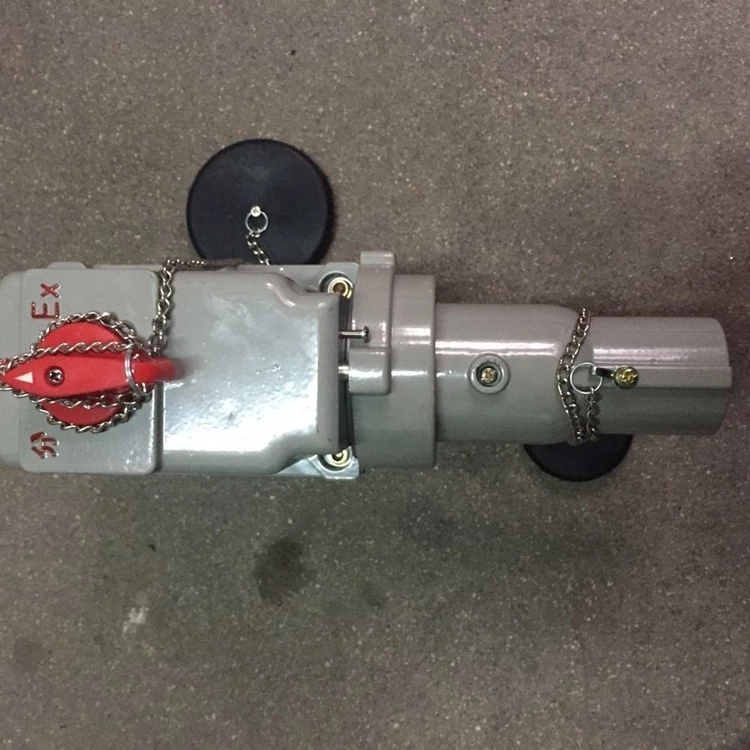

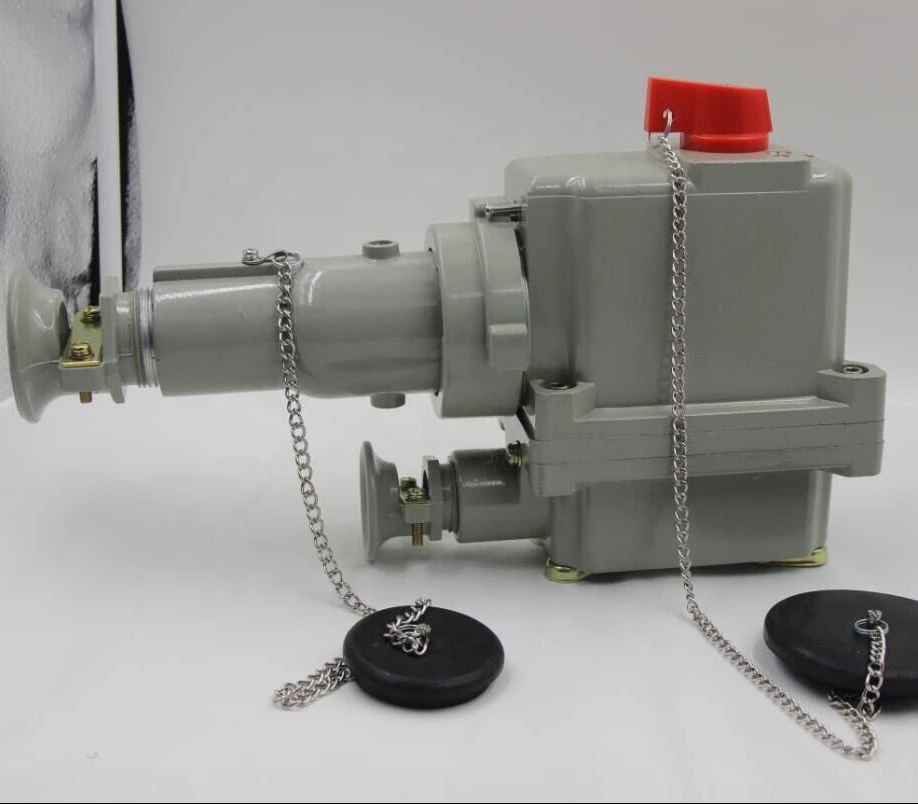

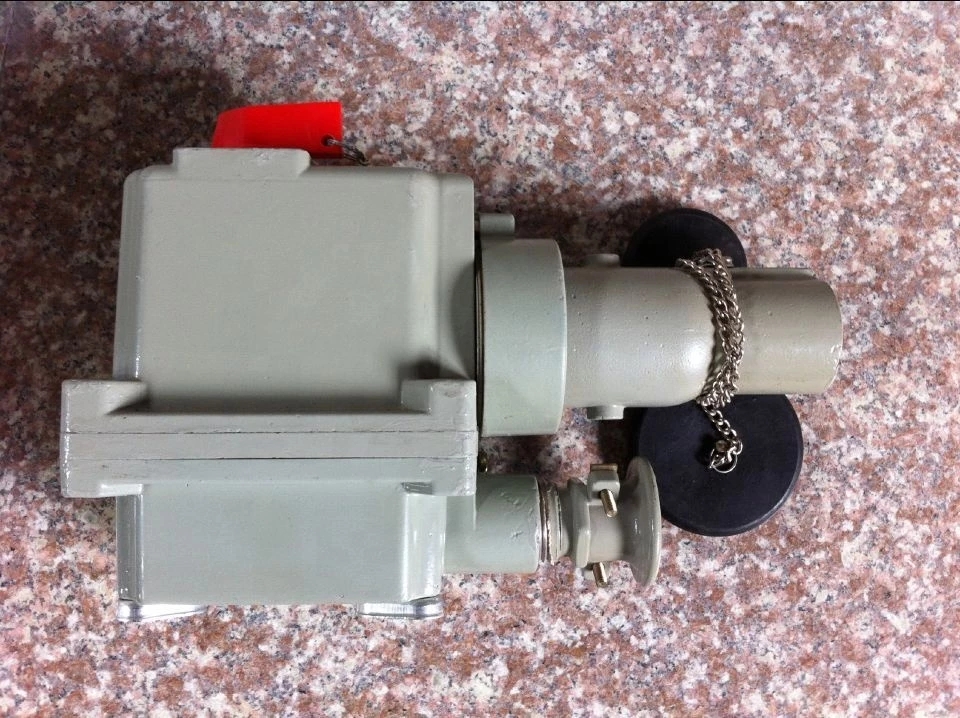

Explosion-proof plug-in device plug device With switch Five core BZC54 Item NO.: 1942186

Please contact customer service

Scope of application
Elevation not exceeding 2000 m
The ambient temperature does not exceed + 40 C, not less than - 20 C.
The relative humidity of the surrounding environment is not more than 95% (equivalent to + 25 C)
Suitable for Class II A and Class II B T1-T4 explosive gas mixtures (zones 1 and 2)
It has a slight corrosion environment, but does not contain gases that seriously damage metals and insulation.
A place where hydrated liquids can be prevented from being immersed.
Suitable for long-term work
Product characteristics

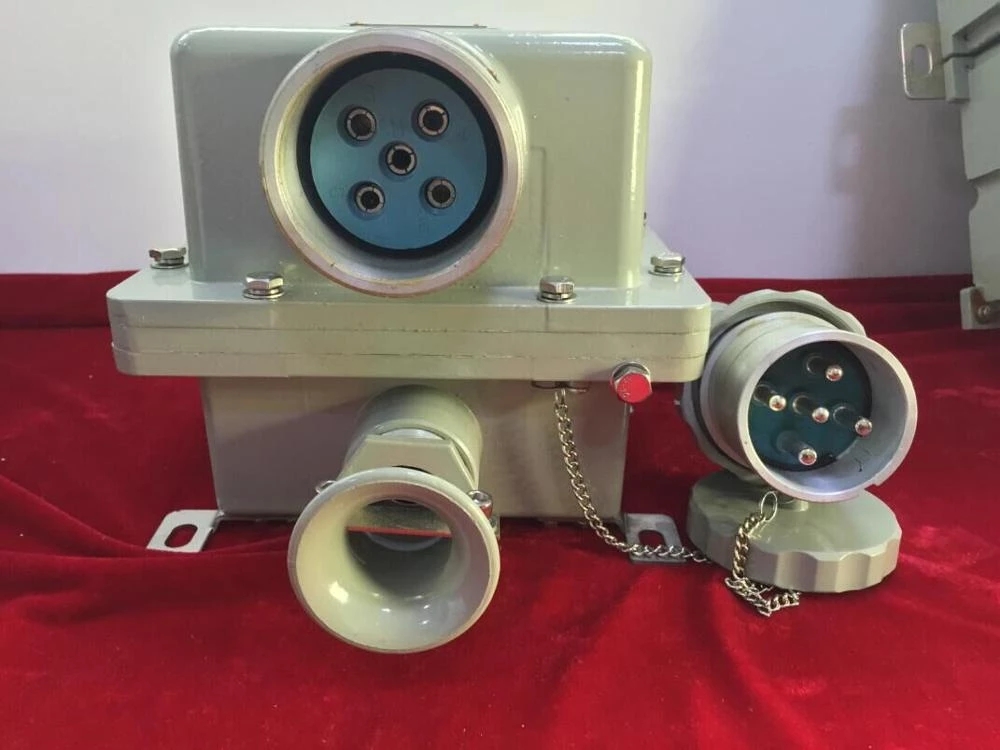

Applicable to rated voltage below 380V, rated current 20, 25, 32A lines. As a power supply for connecting hand-held tools and lighting lamps, cast aluminium alloy shell with plastic spraying on the surface. The socket is equipped with split and close protective cover, and no live open cover sign is allowed. The grounding contact of the plug is longer than that of the main contact, so that the grounding wire is connected before the main contact is not connected. When the plug is unplugged, the grounding wire is finally broken to ensure safety. After the plug is inserted, the rotary sleeve on the plug rotates to a certain angle to the right, and the socket is closed, while the plug cannot be unplugged. Take off. Conversely, if the rotary sleeve is rotated to the left at a certain angle, the switch will be broken, and then the plug can be pulled out. The socket is equipped with a protective cover. After the plug is pulled out, the protective cover will cover the socket so as to avoid the invasion of external objects, steel pipe or cable wiring, and cable wiring should be tightly sealed by a distribution cable clamp.
Main technical parameters
Model BCD-32
Current (A) 32
Voltage (V) 380/220
Extremum 3 P
3P+N+PE
Explosion-proof mark Exd(e)II BT4
Protection Level IP54
External Diameter of Cable (mm)12~22
Inlet Thread (G") 1/4"
