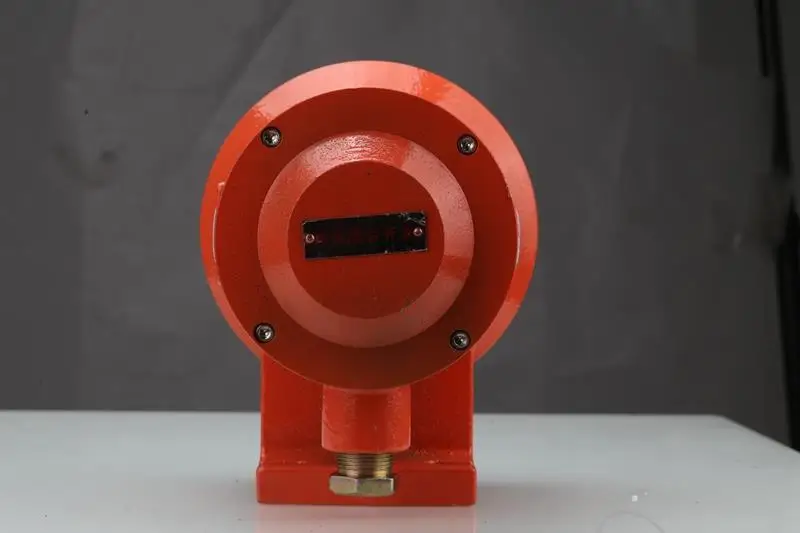

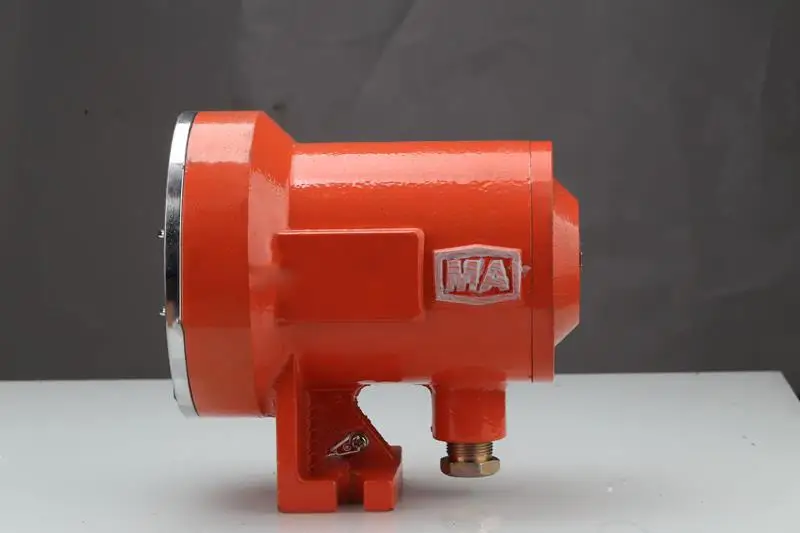

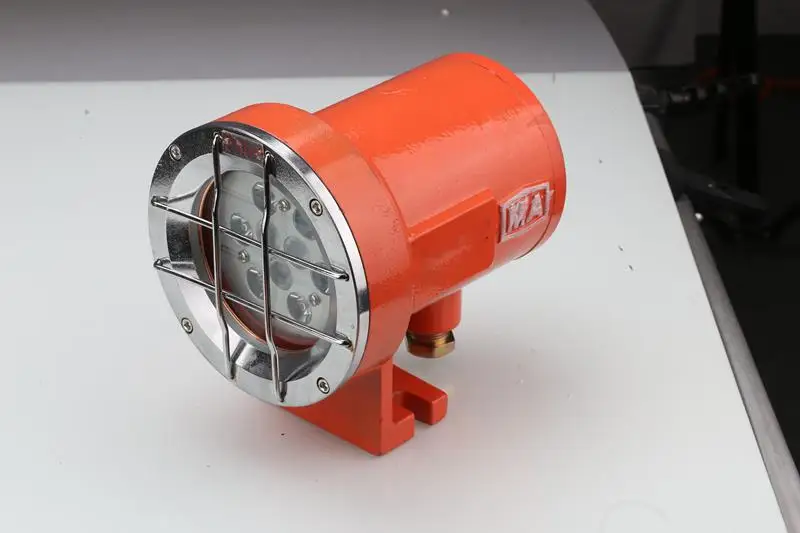

LED Mine Explosion-proof Locomotive Lamp Flameproof Locomotive Lamps Coal mine Red and White Light Item NO.: 1954805

It is mainly suitable for working lighting on locomotives and vehicles with gas (methane group) and coal dust explosion dangerous places in coal mine.

The locomotive lamp with LED light source can install on our company’s locomotive. There are other types of locomotive lamp with different voltage.

Model: DGY18W   24V to 300V

Application scope of LED explosion-proof far and near light locomotive lamp: LED mine flameproof far and near light locomotive lamp is mainly suitable for storage battery electric locomotive, roadheader, picking and loading machine, shovel and various underground explosion-proof vehicles with the danger of methane and coal dust explosion, etc., locomotive working lighting use.

Applicable environmental conditions:

1. Ambient pressure 86 Kpa-106 Kpa;

2. Environmental temperature: - 20 degrees - +40 degrees;

3. Relative temperature of air is not more than 75% (temperature + 25% Celsius);

4. When the voltage fluctuates within the rated range of 60%-130%, the lamp can work normally.

5. Protection level is greater than or equal to IP65.

Product characteristics:

1. The light source can be switched between red LED and white LED. White light is the lamp and red light is the signal lamp. To which side does the locomotive move forward, the light in the forward direction is white, the other direction of the light is a red signal.

2. Long service life: service life of more than 50,000 hours, with resistance to frequent switching characteristics;

3. Energy saving and environmental protection: the main light source of this lamp works. The rate is only 18W and the brightness is 5-7 times of that of incandescent lamp with the same wattage.

4. Maintenance-free: to solve the problem of frequent replacement of traditional light sources, reduce the maintenance costs of labor and materials;

5. Constant brightness: Driven by constant voltage and current circuit, constant brightness of light source reduces eye fatigue and improves safety of production.

6. The working temperature of the light source is low, that's prevent the specular scaling and water breaking caused by high temperature.

7. Wide Voltage Circuit Design: Save Voltage Regulating Resistance or Direct Converter.
