Explosion-proof electric hoist control button la5817-6k explosion-proof electric control button switch Item NO.: Explosion-proof electric hoist control button

Scope of application:
1. Hazardous places with explosive gas environment: zone 1, zone 2;
2, level of combustible gas, steam: A and B Ⅱ Ⅱ, Ⅱ C;
3. Temperature group: T6; The lowest temperature is -25℃ and the highest temperature is +40℃. The relative temperature of environmental medium > 85% altitude does not exceed 2000m.
4, suitable for indoor and outdoor (IP65).
5, explosion-proof electric hoist button is mainly used for rated voltage 500V, 50Hz or 60Hz current 5A below, control voltage 42V control circuit, this product is strictly prohibited in flammable and explosive and dust medium environment.
6. Explosion-proof control button is safe and reliable according to national standards.
7, explosion-proof electric hoist button and explosion-proof crane supporting use. Such as LHBT type explosion-proof electric single-beam crane, LHBT type explosion-proof electric double-beam suspension crane

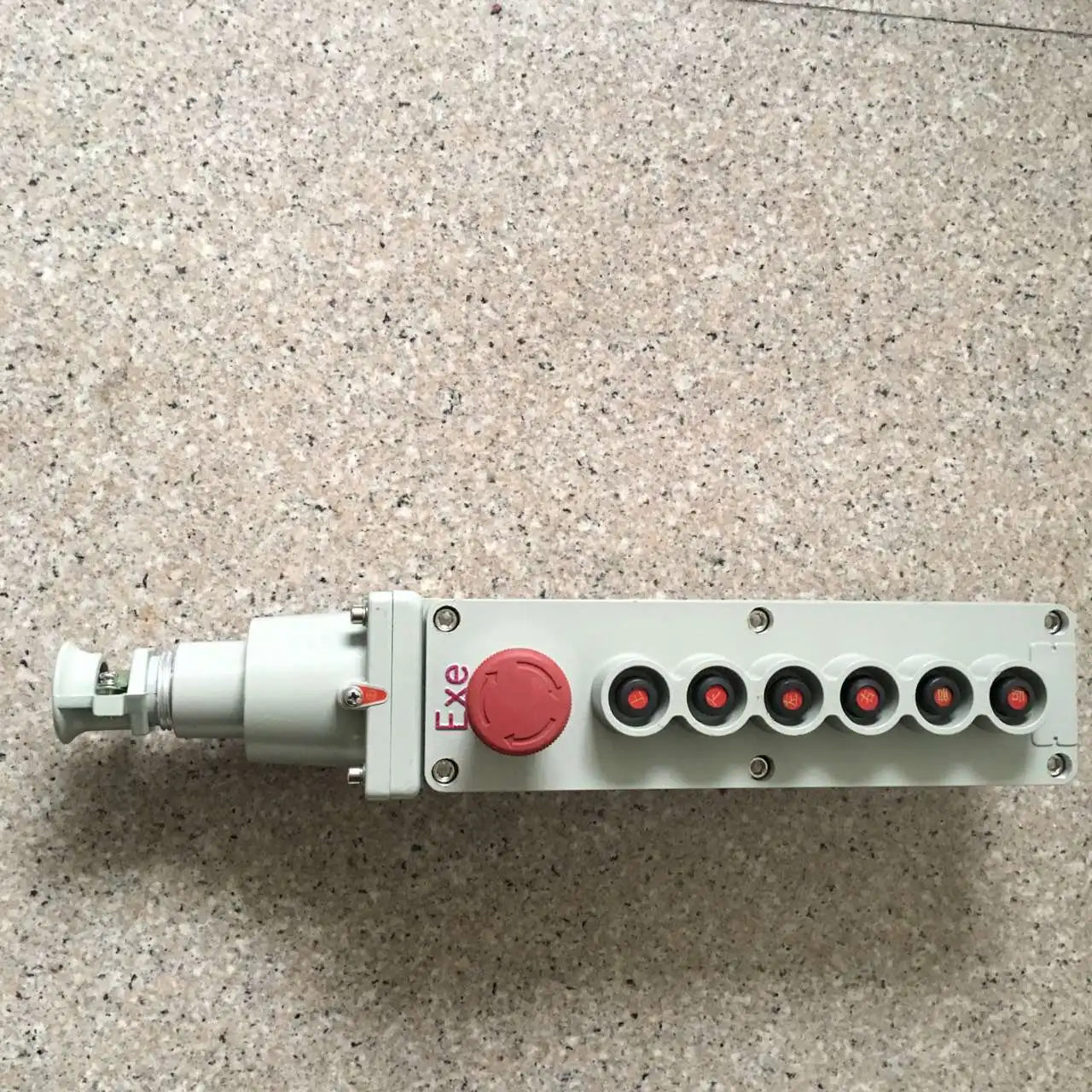

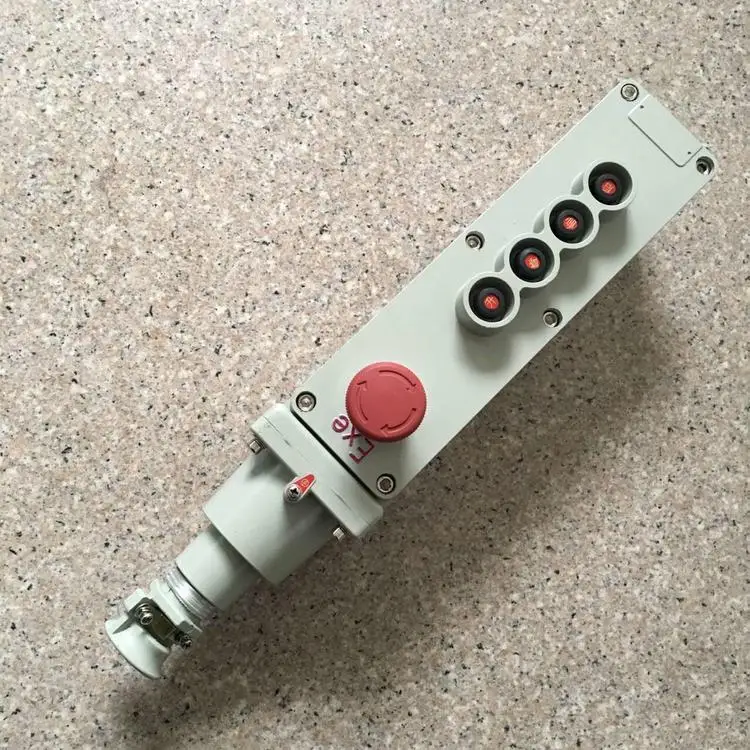

Button of LA5817 explosion-proof electric hoist

Quality assurance:

This product is strictly in accordance with the international quality management system standards for quality control, to ensure that the product quality is higher than the national standards, fully meet the design requirements.

Button application scope of LA5817 explosion-proof electric hoist

Dangerous places in zone 11 and zone 2.
2 A and B Ⅱ Ⅱ IIC explosive gas environment.

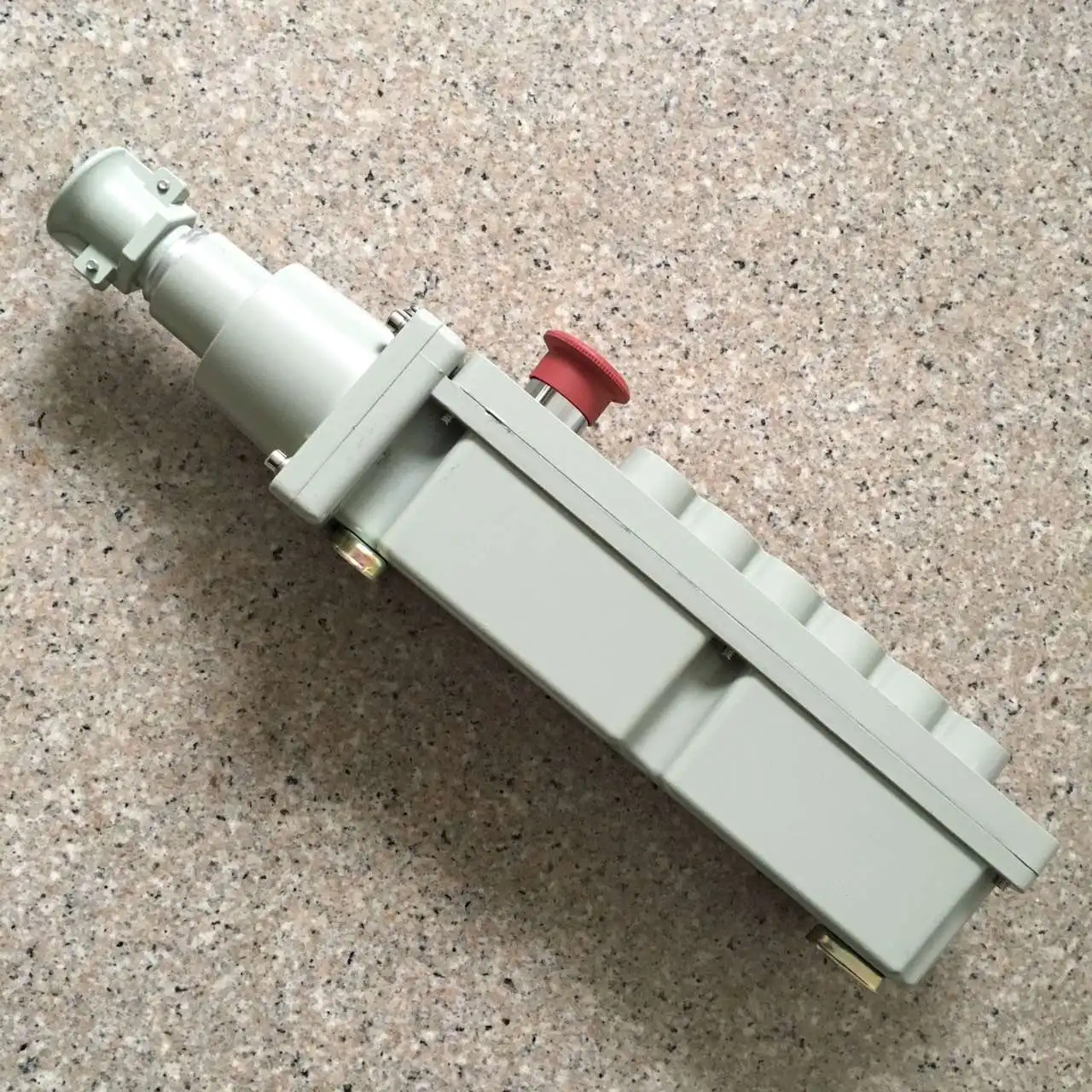

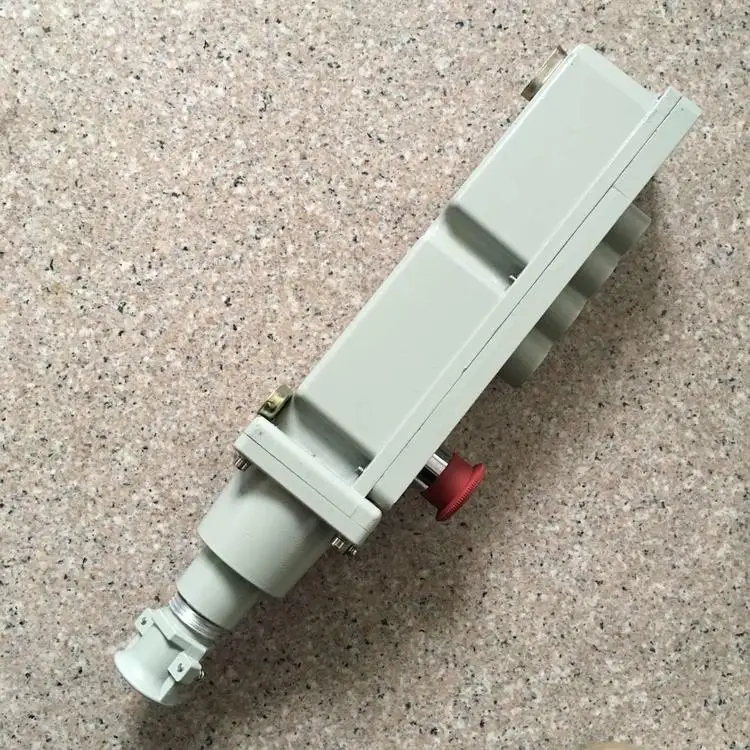

LA5817 button button of explosion-proof electric hoist

1. Cast aluminum alloy shell, plastic sprayed on the surface.
2. Steel pipe or cable wiring is available.

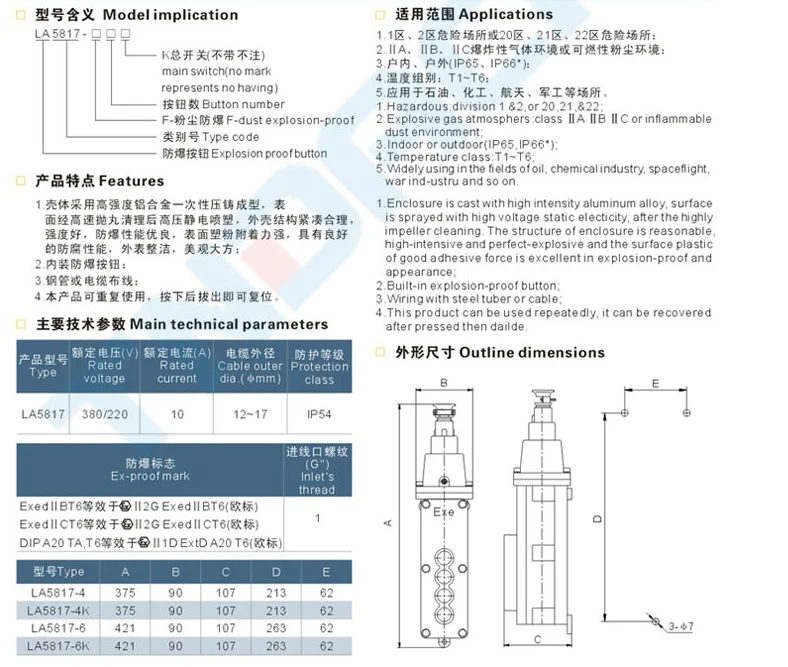

Button main technical parameters of LA5817 explosion-proof electric hoist

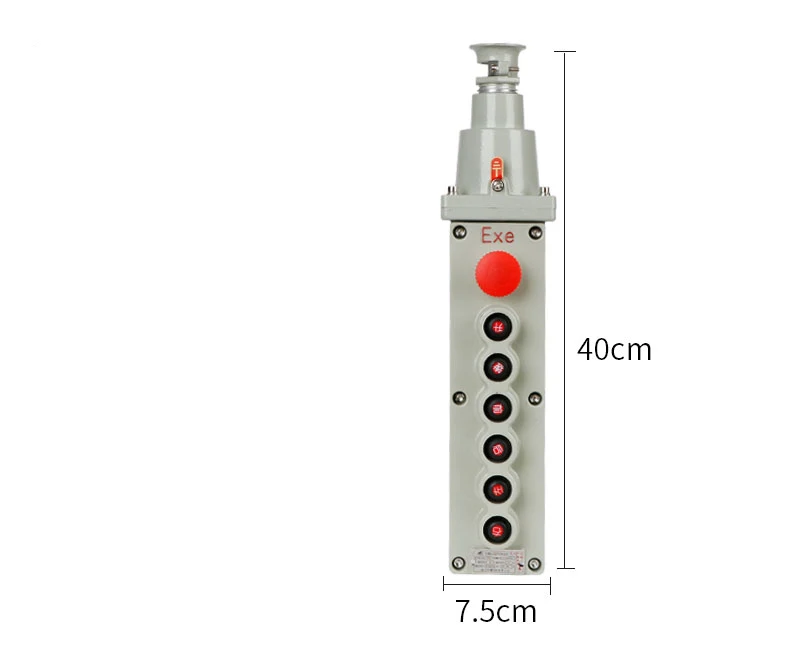

Model ba5817-4, ba5817-4k (with emergency stop main switch), ba5817-6, ba5817-6k (with emergency stop main switch)
Rated voltage 220/380 (V)
Rated current 10 (A)
Exde II BT6
Protection grade: IP54
Inlet thread 1 (G")
Diameter of cable 12-17 (phi,mm).
