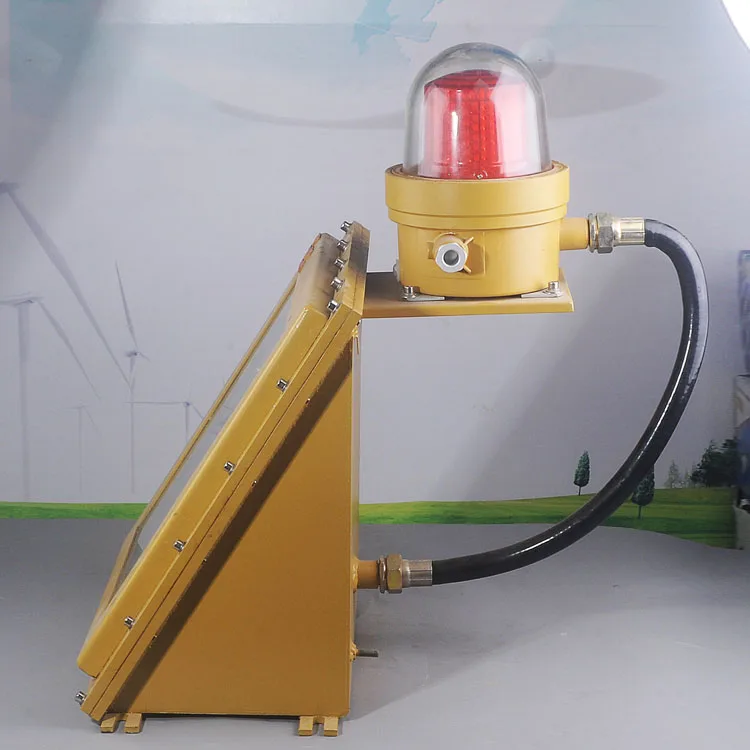

LED solar explosion-proof aviation obstacle lamp 40W 20W explosion-proof LED flash obstacle lamp high altitude indicator Item NO.: 335165

Scope of application:

1. It is widely used in hazardous environments such as chemical industry, oil refining, chemical industry and petroleum exploitation, as well as dangerous places such as offshore oil platforms and oil tankers;

2, applicable to high-rise buildings, drilling platforms, tall facilities and tall oil storage facilities on the building, for aviation obstacle instruction;

3. Suitable for places with high protection requirements;

5. Suitable for places with temperature groups t1-t6;

Product features:

1, aluminum alloy shell die-casting molding, surface high voltage electrostatic spray, stainless steel fastener, beautiful and comfortable appearance;

2, tempered glass transparent cover, can work in rain, snow, hail, sun exposure and other bad conditions;

3. Equipped with LED light source with long life and high brightness, which can effectively meet the requirements of energy saving and environmental protection with low energy consumption and high brightness;

4. Equipped with integrated chip, with a variety of protection circuits, synchronous flashing of multiple lamps can be realized through synchronous signal line connection;

5. According to requirements, it can be made into wireless synchronization mode, which is convenient for use and installation, and saves users from wiring and wiring. Please indicate when ordering.

6, use automatic light control switch control, strong reliability, night and fog automatically open, day automatically closed;

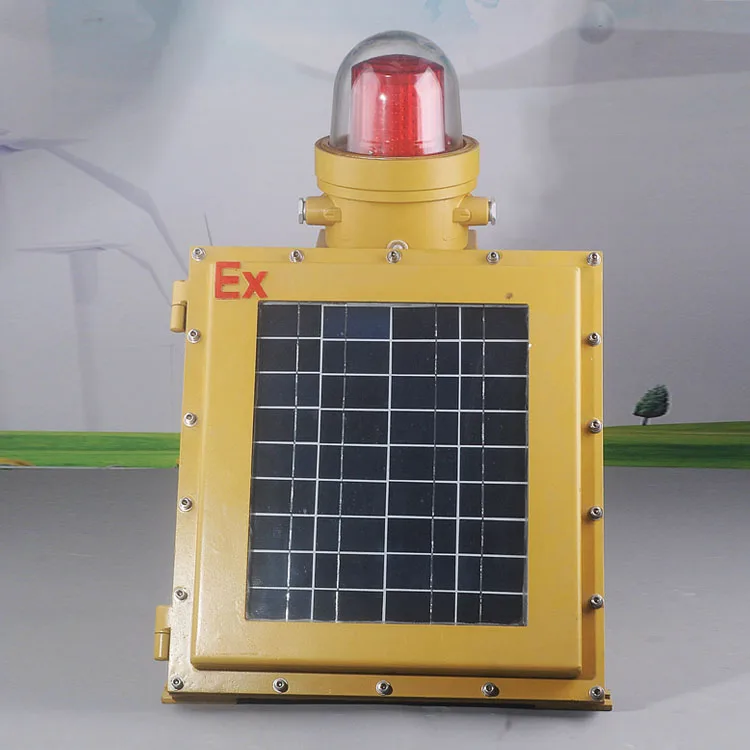

7, can be equipped with solar panels using solar power. Solar energy conservation and environmental protection, reduce wiring, reduce user cost;

8. Steel pipe or cable wiring;

Technical parameters:

Explosion-proof marks: Exde Ⅱ CT6

Rated voltage: ac110-240v

Scintillation frequency: 16~240 times /min

Glowing color: red

Equipped with light source: LED

Rated power: 20W,40W

Corrosion grade: WF1

Specification of inlet: 2-g3/4"
Applicable external diameter of cable: phi 9mm~ phi 14mm
