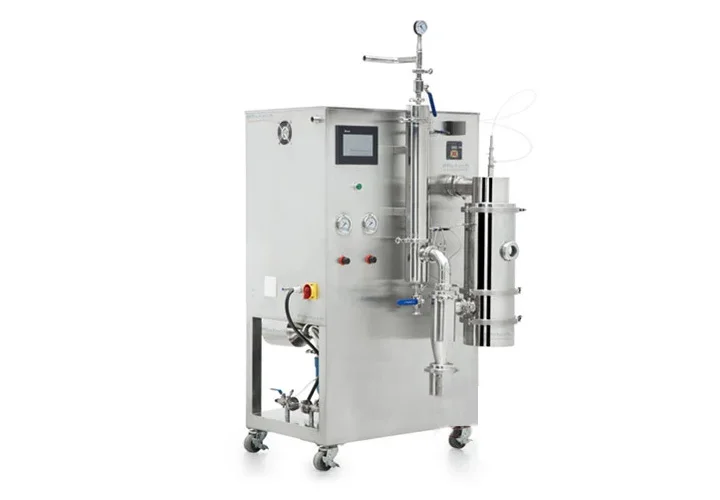

Small Low Temperature Two Fluid Atomizer Scale Vacuum Spray Dryer Item NO.: 1950392

The laboratory low temperature spray dryer is mainly used in universities, research institutes and laboratories of food, medicine and chemical enterprises to produce microparticle powder, which is suitable for all kinds of solutions such as emulsion and suspension, the laboratory low temperature spray dryer is used to dry materials in vacuum environment, which provides a convenient and safe drying method for heat sensitive materials.

1. Adopt color LCD touch screen operation control, full Chinese operation interface, heating temperature PID constant temperature control, a combination of automatic and manual control, with memory function, easy to operate;
2. The built-in imported oil-free air compressor, the particle diameter of the powder spray is normally distributed, the fluidity is very good, and the noise is very low, which meets the national laboratory noise standard;
3. The entire experiment process is completed in a vacuum environment, which greatly reduces the drying temperature of the material and solves the problem of spray drying of heat-sensitive materials. In the design of the drying temperature control, the real-time PID constant temperature control technology is used to make the temperature control in the full temperature zone accurate, and the heating temperature control accuracy is ± 1 ℃;

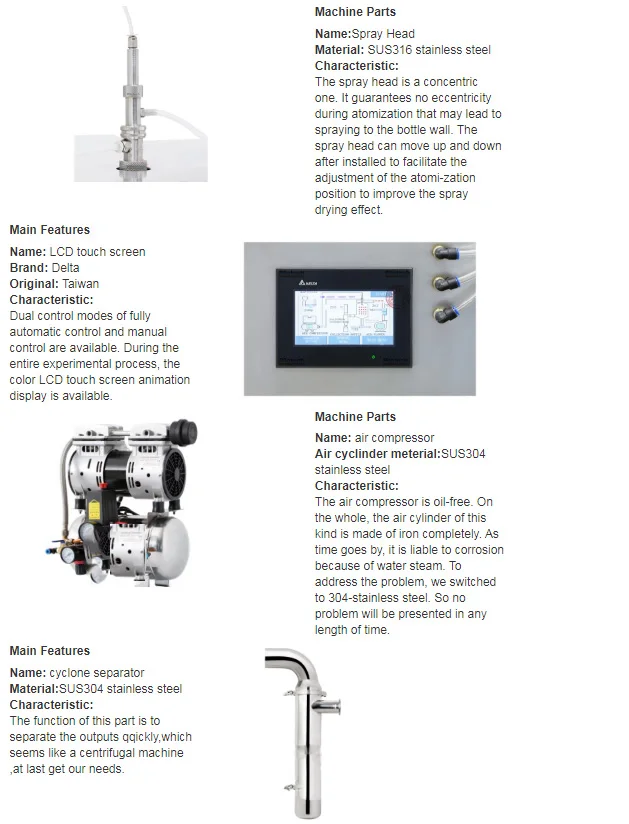

4. The spray head is a concentric spray head, and the size of the spray head is optional. After the spray head is installed, it can move up and down to help adjust the atomization position and improve the spray drying effect;
5. The feed volume can be adjusted by the feed peristaltic pump, the rated processing volume is adjustable, and the sample volume is 50-2000ml;
6. The atomization structure of the two-fluid spray is made of high-quality stainless steel materials, with a compact design and no additional equipment;
7. There is a nozzle cleaner (through needle), which will be automatically cleared when the nozzle is blocked, and the frequency of the needle can be adjusted automatically.

1. Chemical industry: hydrated silica, concrete additives, barium sulfate, basic chromic sulfate, alumina, titania, kaolin,ferrite, steatite, carbide, fertilizers, dyes, scouring agents, ACR assistants, latex, water purifiers, resins, plastics,cryolite.
2. Food Industry: dextrin, maltose, albumen powder, vitelline powder, compound sugar, granular grease, instant coffee, amylum,flavors, garden stuff. It is applied in drying of some kinds of liquid material, such as solutions, emulsions, suspensions, liquidpastes, etc.
3. Dairy: skim milk powder, whole milk powder, soy milk powder, ice cream powder, milk extract powder, etc.
4. Pharmaceutical industry: Chinese drugs and western medicine powder, antibiotics, biochemical products, vitamins, pesticides,hydrolyzed proteins, enzymes, single cell proteins, etc.
5. Building material industry: ceramic body, frit, superfine powder.
6. Environmental protection: flue gas desulfurization, disposal of black liquor and wastewater of pharmaceutical factories.
7. Others: fishmeal waste, feed, etc.
