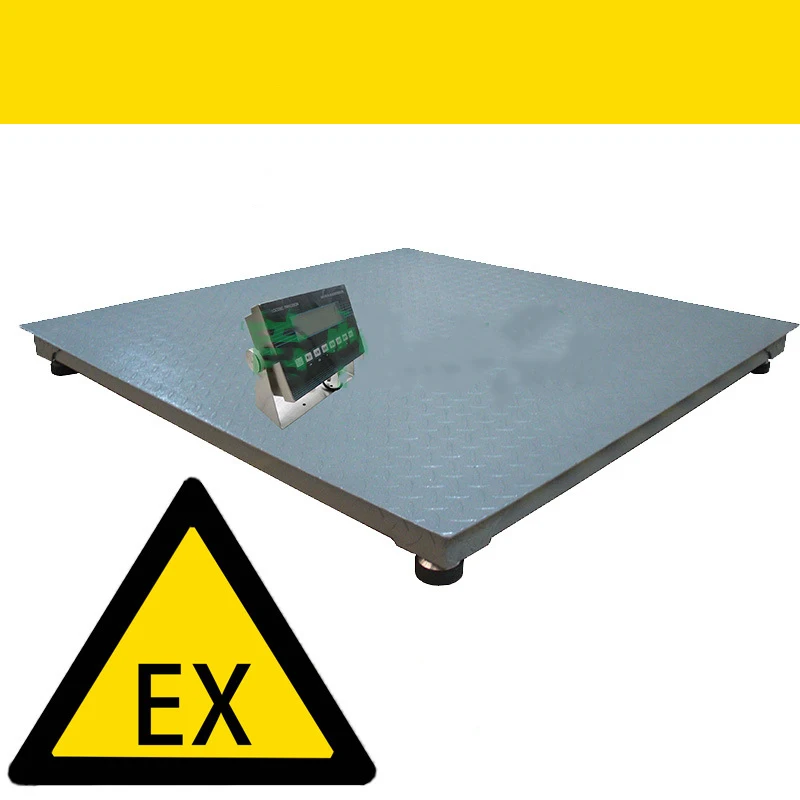

Explosion-proof weight 3T scale Flameproof type Explosion-proof scale Item NO.: 1944120

1. Explosion-proof weights are suitable for IIBT4 (IICT6)
Explosion-proof weighing is a kind of intrinsically safe electrical equipment, which is suitable for weighing explosive substances and dangerous places. The whole equipment (including scale, sensor and weighing instrument) can be placed in explosive dangerous areas, such as Shanghai Yajin explosion-proof weighing.
Explosion-proof weights and explosion-proof weights
It has strong explosion-proof function.
2. Low Power Design of Explosion-proof Ground Scale
LCD display, high impedance weighing sensor, built-in explosion-proof battery box, DC power supply, 4 sections of No. 1 ordinary dry battery can be used for 200 hours (high performance alkaline battery can be used for 500 hours).
3. Explosion-proof floor weighing has abundant functions and simple operation.
9 kinds of user parameters, 11-clock system parameters and 48-minute internal parameters are set, which have abundant functions and wide applicability. Keyboard calibration is simple and convenient to operate.
4. State Indicator of Explosion-proof Ground Weight and Self-check of Function
Zero position, peeling, stability, insufficient batteries and stop status indication of scale function; automatic function detection, and the abnormal situation detected show, prompting users to use normally, easy to troubleshoot.
5. Explosion-proof weighing stainless steel shell, fully sealed design
1. Compound intrinsically safe explosion-proof electronic scale (ExibIIBT4)
Scope of application: Weighing body, weighing sensor and junction box are in inflammable and explosive dangerous areas of type 1 and 2. Weighing instruments are placed in safety areas. In the middle, various weighing systems, such as platform scale, floor scale, automobile scale, weighing module (hopper scale), belt scale, automatic loading scale, are used. At present, it is the most formerly explosion-proof form. Power supply: 220V AC.
The configuration is as follows: weighing sensor - intrinsically safe explosion-proof sensor. The explosion-proof type is generally ExibIIBT4.
Connection box - intrinsically safe explosion-proof junction box. The explosion-proof type is generally Exia IICT6.
Safety Gate - Essentially Safe Zener Safety Gate. The explosion-proof type is generally Ex (ia) IIC.
Weighing Instrument and Printer - Non-explosion-proof Weighing Instrument.
2. Intrinsically Safe Explosion-proof Electronic Scale (ExibIIBT4)
Scope of application: Scale body, junction box, weighing sensor and weighing instrument are all explosion-proof electronic scales in inflammable and explosive 1 (10) and 2 (11) dangerous areas. Power supply mode: DC 6V (4 1 dry cell built-in explosion-proof battery box) or 24V DC.
The system configuration is as follows: weighing sensor - intrinsically safe explosion-proof sensor, explosion-proof type is generally: ExibIIBT4.
Connection box - intrinsically safe explosion-proof junction box. The explosion-proof type is generally Exia IICT6.
Weighing instrument - intrinsically safe explosion-proof weighing instrument. Built-in intrinsically safe explosion-proof battery box. Explosion-proof type: ExibIIBT4 (gas) DIPDTT13 (dust)
3. Flameproof and explosion-proof electronic scale (ExdIIBT4)
Scope of application: Scale body, weighing sensor and weighing instrument are all explosion-proof electronic scale, electronic ground scale, electronic truck scale and weighing module (hopper scale) systems in inflammable and explosive dangerous areas 1 and 2. Power supply mode: 220V AC
The system configuration is as follows: weighing sensor - intrinsically safe explosion-proof sensor. The explosion-proof type is generally ExibIIBT4.
Connection box - intrinsically safe explosion-proof type: ExibIIBT4.
Flameproof instrument box - built safety grille, weighing instrument. The general type of box protection is ExidIIBT4.
4. Dust Explosion-proof Electronic Scale (DIPA21T5.DIPB22T4) (DIPDTT13)
Scope of application: Scales, weighing sensors, weighing instruments and printers are all explosion-proof electronic scales, electronic ground scales, electronic truck scales and weighing modules (hopper scales, etc.) systems in inflammable and explosive dust 21 and 22 dangerous areas. Power supply mode: 220V AC
The system configuration is as follows: weighing sensor - intrinsically safe explosion-proof sensor. The explosion-proof type is generally ExibIIBT4.
Connection box - EF/SCS-B, intrinsically safe explosion-proof type is generally: ExibIIBT4.
Flameproof instrument box - built safety grille, weighing instrument. The protection type of box body is IP6X dust sealing shell.

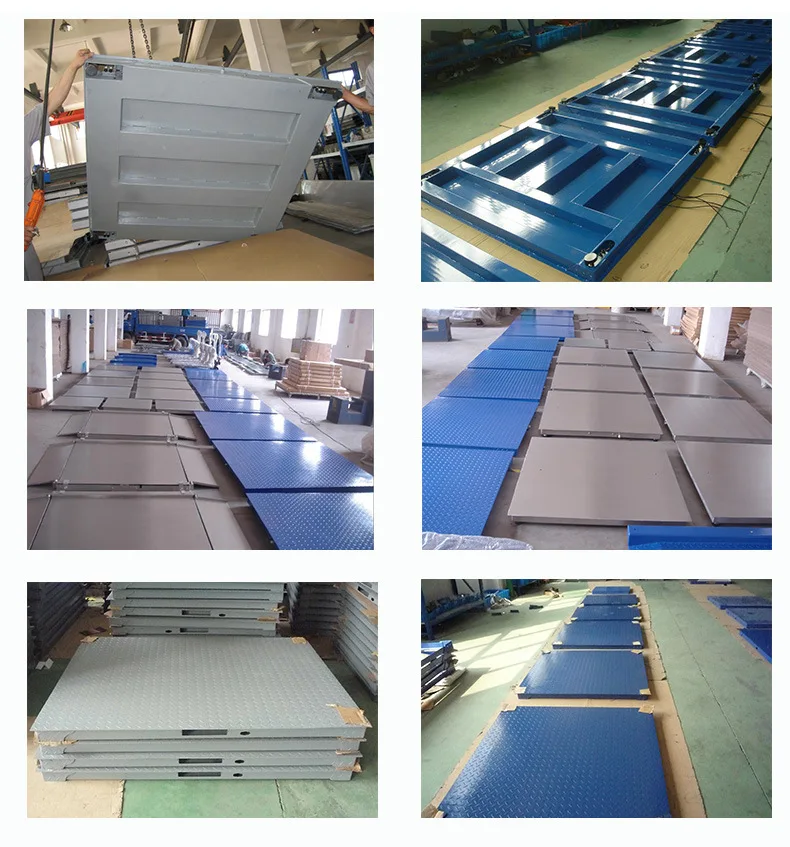

Structural characteristics of SCS electronic weighing scale:
1. U-beam welded structure, high strength design
2. Material: Carbon steel or stainless steel, pattern steel or flat panel
3. Carbon steel scale: paint or galvanizing treatment
4. Stainless steel surface: polishing and wire drawing
5. Four High Precision Shear Beam Sensors
SCS electronic weighing products function:
1. Zero setting, peeling and accumulation
2. Weighting, counting, checking and sorting
3. Printing and communication interface RS232/485 (optional)
4.4~20mA Analog Output (Optional)
5. Relay Output (Selection)
SCS Electronic Small Ground Scale Specification
Weighing: 1T, 2T, 3T, 5T, 10T
Sensitivity: 0.2KG, 0.5kg, 1kg, 1kg, 2kg
Table Size (m*m): 0.8*0.8M, 1*1M, 1*1.2M, 1.2*1.2M, 1.2*1.5M, 1.5*1.5M, 1.5*2M, 2*2M, 2*3M, 2*4M
