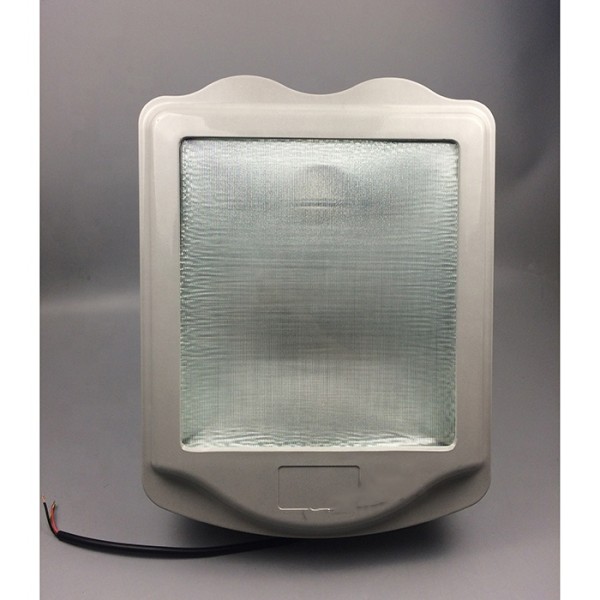

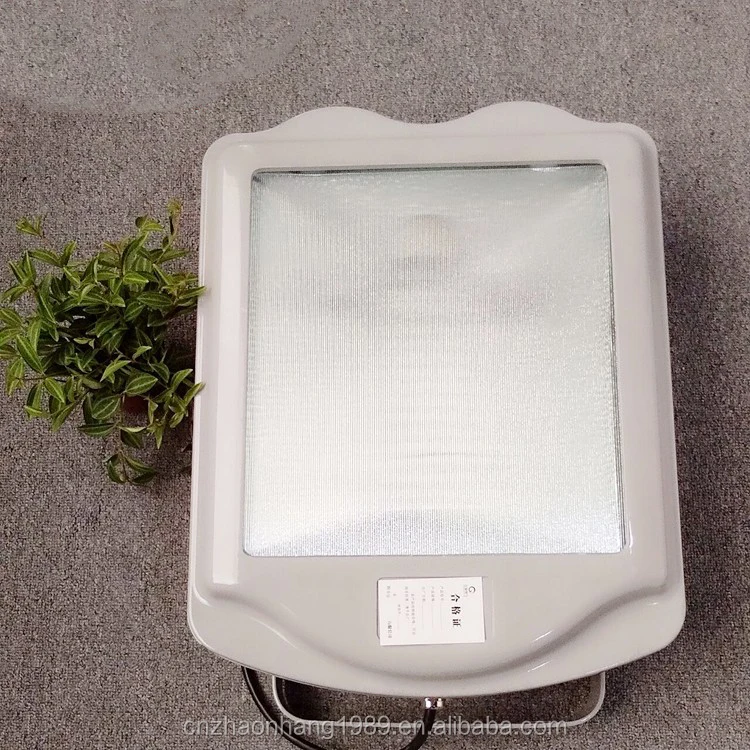

Anti-dazzle floodlight 250W/400W GT302 metal halide waterproof and dustproof shockproof anti-dazzle lamp NSC9700 Item NO.: 335186

I. scope of application
In order to meet the lighting characteristics and requirements of railway tunnel, highway, electric power, metallurgy, petroleum petrochemical and various factories, workshops, Bridges, stations, squares and large facilities, venues, etc., the newly developed NSC9700 anti-glare street lamp, no glare, no double shadow, anti-shock and anti-corrosion, energy saving, safe and reliable.

Two. Performance characteristics
Anti-dazzle function: choose nano photocatalyst glass, which can automatically decompose surface stains and maintain light transmission effect; At the same time, diffuse reflection technology and protection Angle design can effectively prevent glare, effectively reduce the stimulation to the eyes of workers, avoid discomfort and fatigue.
Light efficiency and energy saving: choose special gas discharge bulb as light source, high light efficiency and long life; When using dual HPS lamps, they can be started and restarted immediately without cooling.
Applicable environment: adopt high strength alloy material, with strong resistance to strong collision and impact; Multi - channel anti - shock structure and surface spray treatment, can be in the workshop, roadbed, track and other high frequency vibration and humidity, high temperature environment long - term stable work.
Installation mode: wall mounted, ceiling mounted and other installation modes, the irradiation Angle can be arbitrarily adjusted within the upper and lower range of 25 as required. Cables of different wire diameters can be adapted according to the needs of the site, and multiple lights can be connected, suitable for project lighting layout. Electronic and mechanical double protection device, automatically cut off the power after opening the cover, more safe and reliable to use and maintain.

Iii. Technical parameters

Rated voltage ac220/50hz

The power factor is greater than 0.9

Protection class IP65

Corrosion rating WF2

Insulation grade I

From the aspect ratio of 1.8

Feeding port thread g3/4, phi 8~ phi 12mm

Overall dimensions 523*400*175mm

Weight is 13.5 Kg

Iv. Method of use
1, according to the site environment and lighting needs, determine the installation location and way of the lamp, and fix it. According to the installation location of the lamp to 220V power contact distance, prepare the corresponding length of cable.

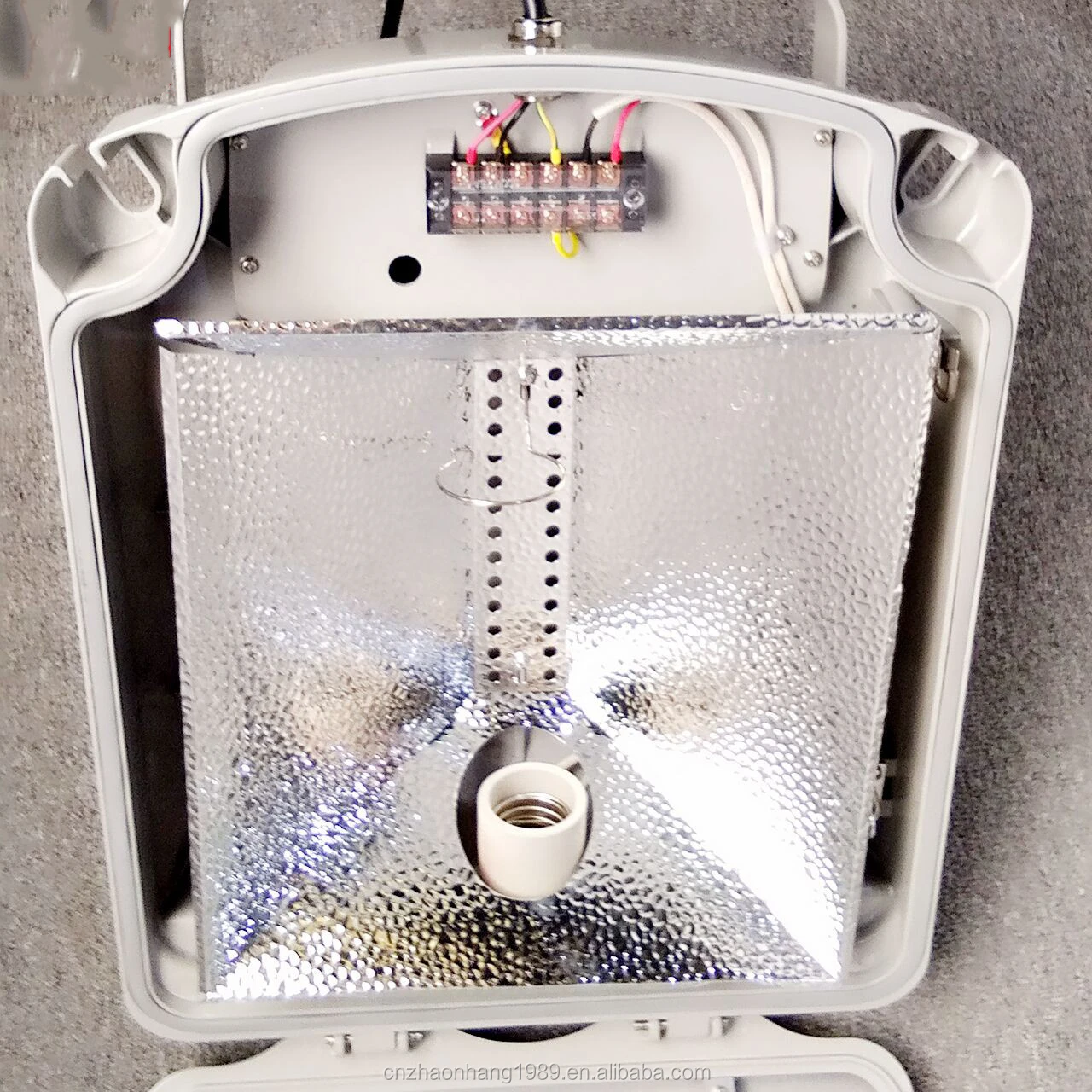

2. Unscrew the two butterfly bolts fixing the front cover on the upper part of the lamp, open the front cover, and introduce one end of the prepared cable into the lamp cavity through the tightening nut of the introducing device. Connect the wires according to the polarity indicated on the wiring socket, and then tighten the tightening nut of the introducing device.
3. Close the front cover, tighten the two butterfly bolts above, and connect 220V power to the other end of the cable for lighting.
4. When multiple lamps are used in parallel, connect the cable from another introduction device by the above method, and then connect it with other lamps; When a single lamp is in use, plug the idle lead-in device with a plug plug.

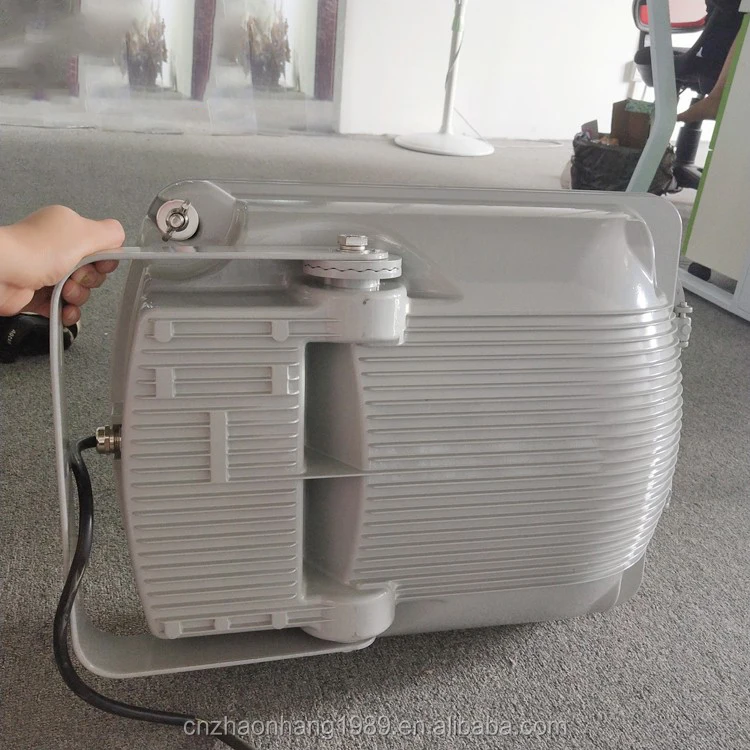

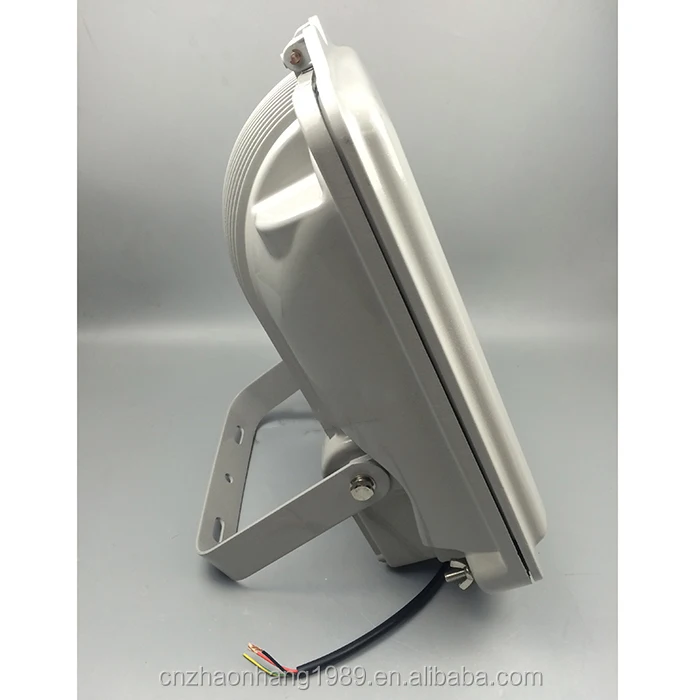

5. Loosen the fixed screws on both sides of the bracket to adjust the lighting Angle of lamps and lanterns within the upper and lower range of 15.
6. The inner side of the lamp chamber is equipped with a support bar, which can be propped up according to needs after opening the lamp cover.

V. matters needing attention
1. During transportation, the lamps shall be packed in the cartons equipped with foam shock absorption.
2, when using, the lamp surface has a certain temperature rise, is a normal phenomenon; The center temperature of the transparent part is high, do not touch directly by hand.

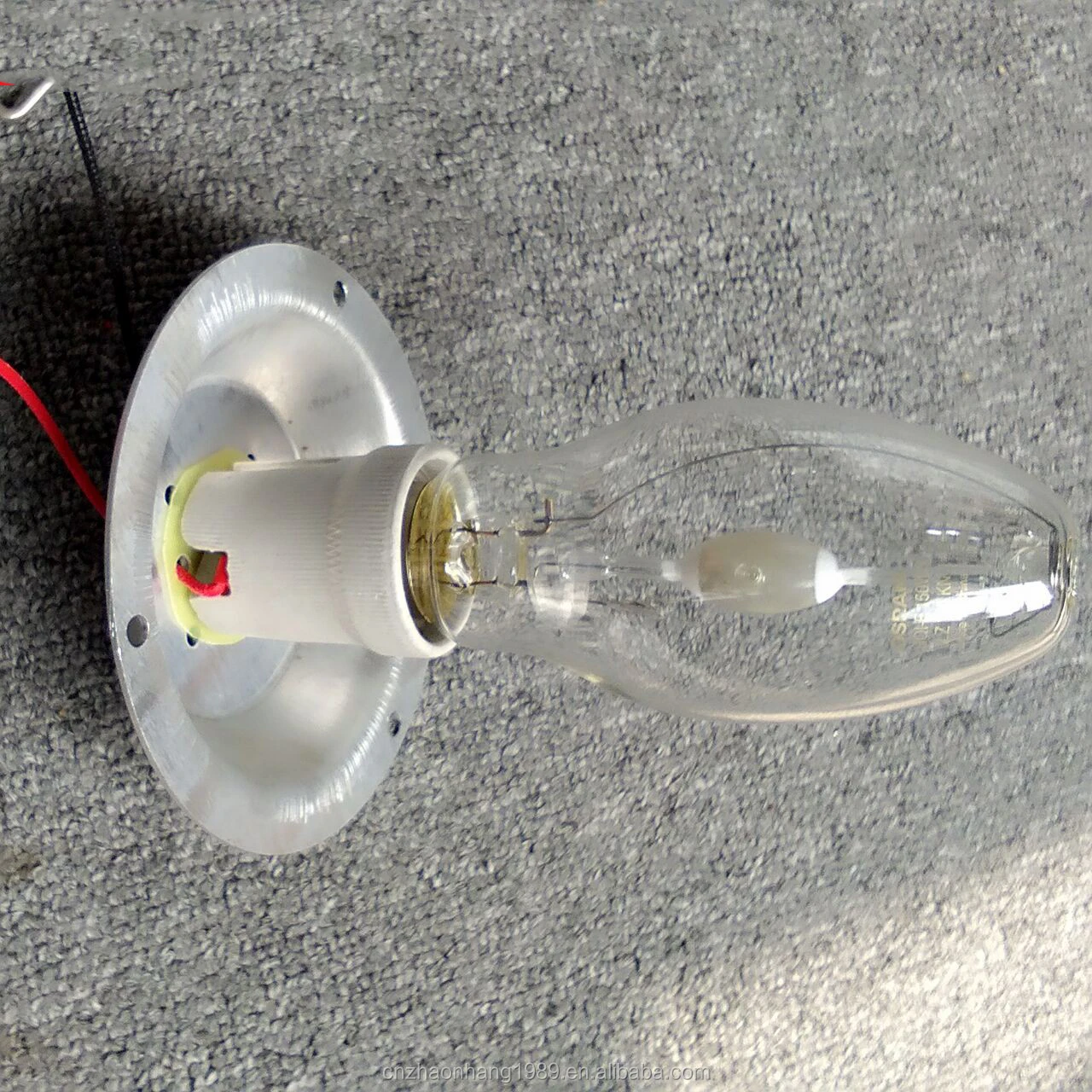

3. Try to use the same type of bulb when replacing the bulb; If the type or power of the bulb is changed, the corresponding ballast should be replaced.
4. The temperature resistance of the cable introduced into the lamp cavity shall not be lower than 120℃ (such as silicone rubber, ptfe cable, etc.).
Warning: 1. Do not install directly on combustible materials;
2. When installing and maintaining lamps, the power must be disconnected first;
3. Lamps must be reliably grounded.
