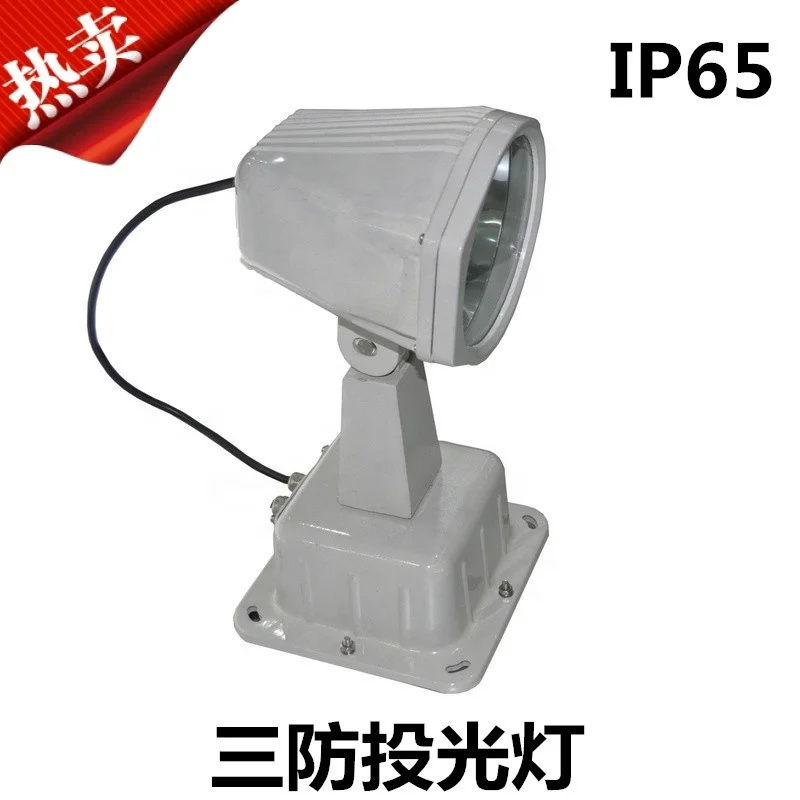

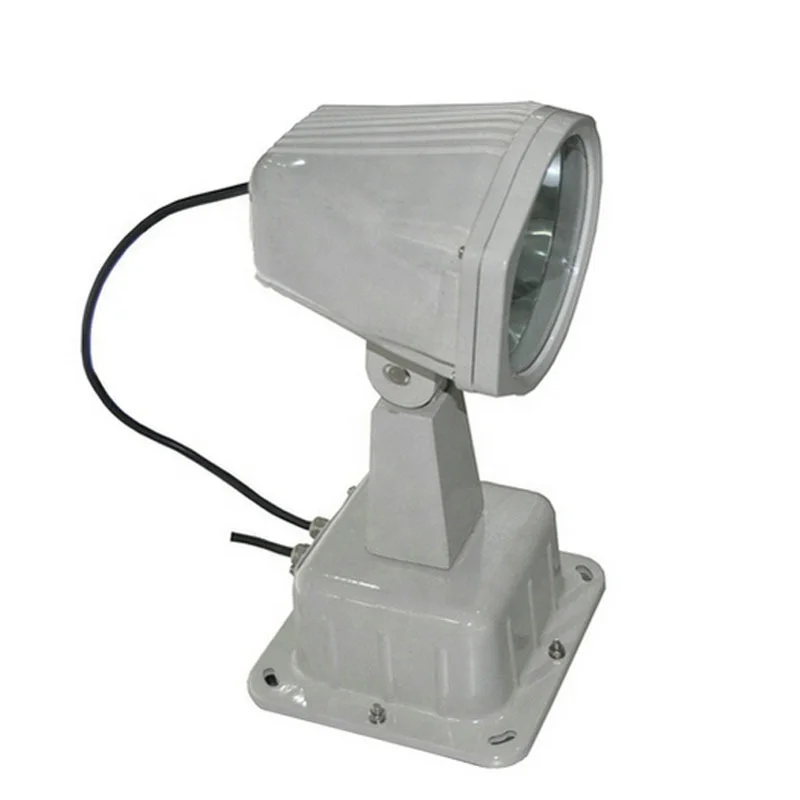

Zoom projector Field zoom lamp Three defense square throws the light throws the spot lamp Small projector lamp Item NO.: 336037

Scope of application:
It is suitable for lighting of stations, wharfs, squares, engineering construction, special machines and other places and facilities.

Performance features:
The efficient MH gas discharge is used as the light source
The two lighting functions of projection and flood light can be converted at will, and the lighting Angle can be adjusted within a larger range, and the focusing distance can be more than 150m.
Adopt multiple seismic resistant structure design, excellent seismic performance, can be used reliably in various high-frequency vibration environment.
Adopt light alloy material and high-tech spraying technology in line with environmental protection, dustproof and waterproof, corrosion and rust resistant, suitable for long-term outdoor work.
Good electromagnetic compatibility, will not cause interference to the transmission network.

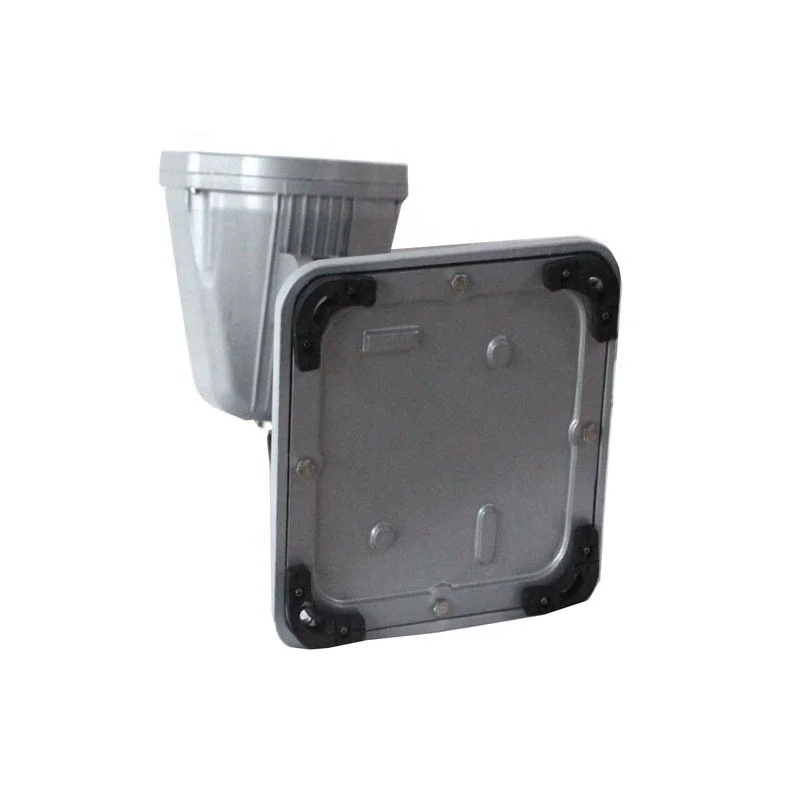

Seat type, wall hanging, ceiling suction and other installation methods can be arbitrarily selected, simple and convenient to operate.

Usage:
According to the needs of the site environment, determine the appropriate installation position and way, and then install and fix the lamp with expansion bolts.
Use a screwdriver to open the junction box cover on the back of the electrical box, loosen the gulen connector, and put one end of the cable into the gulen connector. According to the polarity indicated on the junction box, connect the zero, live and ground wires to the corresponding terminals, tighten the gulen connector, fix the junction box cover, and connect the other end of the cable to 220V power supply.
Screw the lamp holder locking screw at one end of the lamp bracket to adjust the irradiation Angle of the lamp holder in a larger range; Turning the dimming knob can realize the free conversion of focusing light and flooding light.
Fine-tuning dimming knob can improve the effect of focusing and flooding, and can be inserted into two round holes of the fine-tuning nut with needle-nose pliers to tighten and fix it.
When changing bulb, loosen the fixed screw on cap of lamp holder shell with screwdriver first take out lamp holder, close the back cover again after changing new bulb to fix can.

Notes:
When installing and maintaining lamps, disconnect the power supply first.
Non-professionals shall not disassemble lamps and lanterns at will.
Lamps must be reliably grounded.
When changing bulb, do not grasp bulb glass case directly with the hand, lest bulb damage.

Technical parameters:
Rated voltage: AC220V50Hz
Enclosure protection: IP65
Insulation grade: I
Corrosion rating: WF2
Inlet thread: g3/4
Leading cable: phi 7~ phi 9mm
Range height ratio: 0.6
Overall dimension: 210*206*350mm
Total mass: 6Kg
