Integrated explosion-proof lamp explosion-proof bend lamp 175W explosion-proof metal halide lamp ccd92-l175b1z Item NO.: 335798

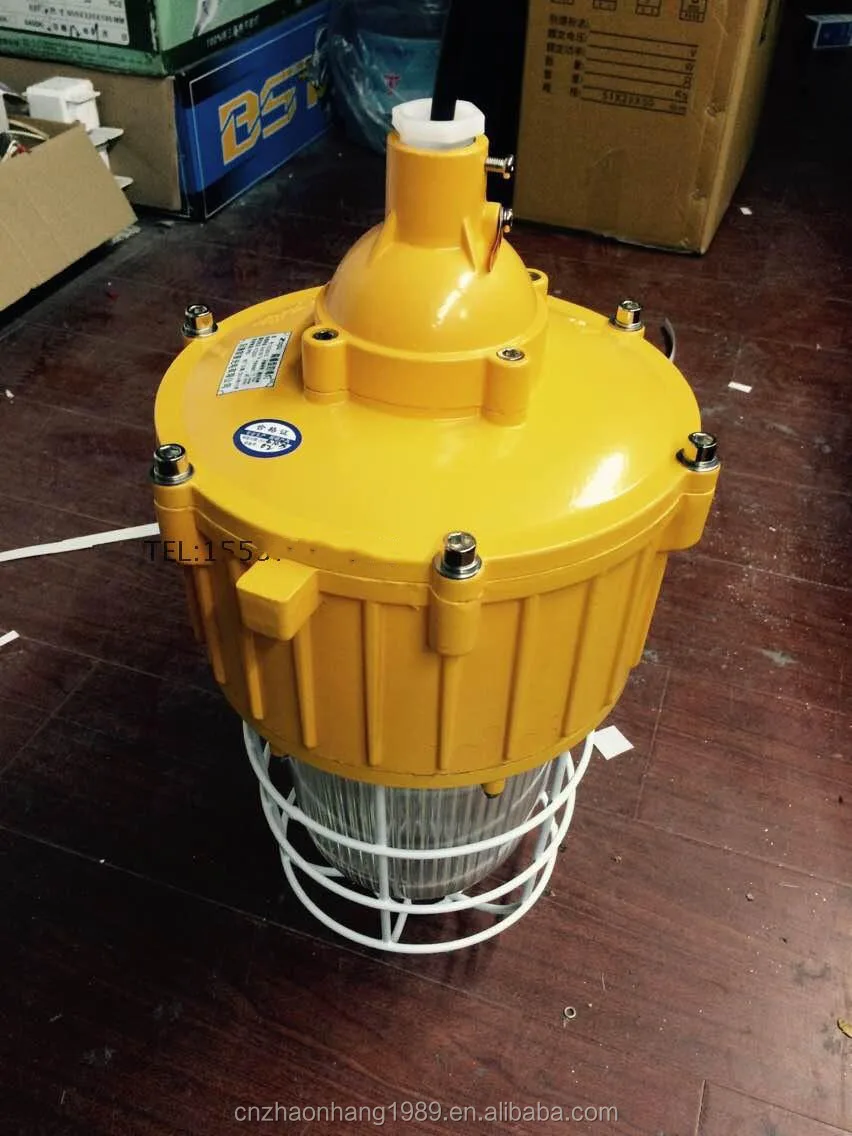

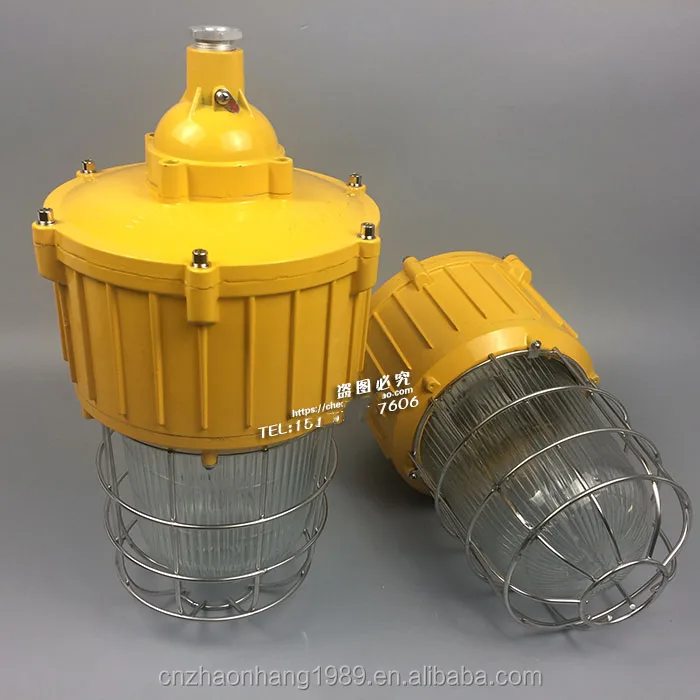

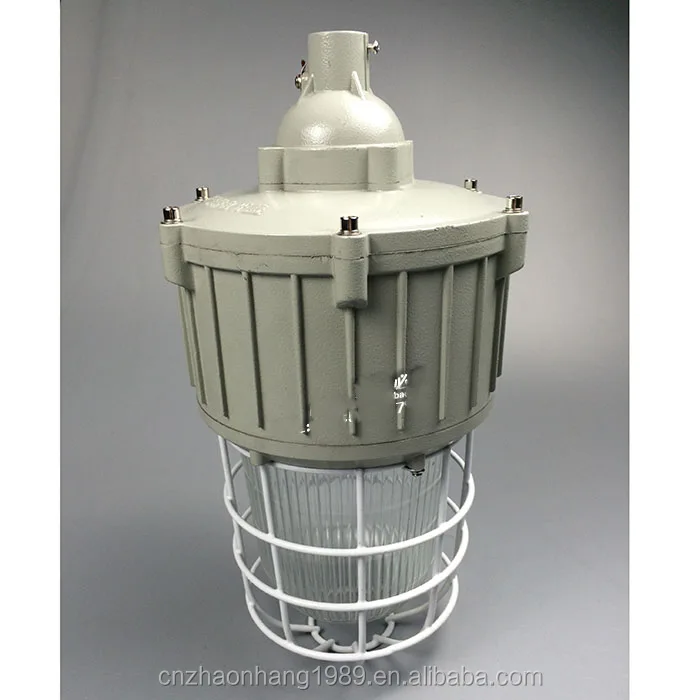

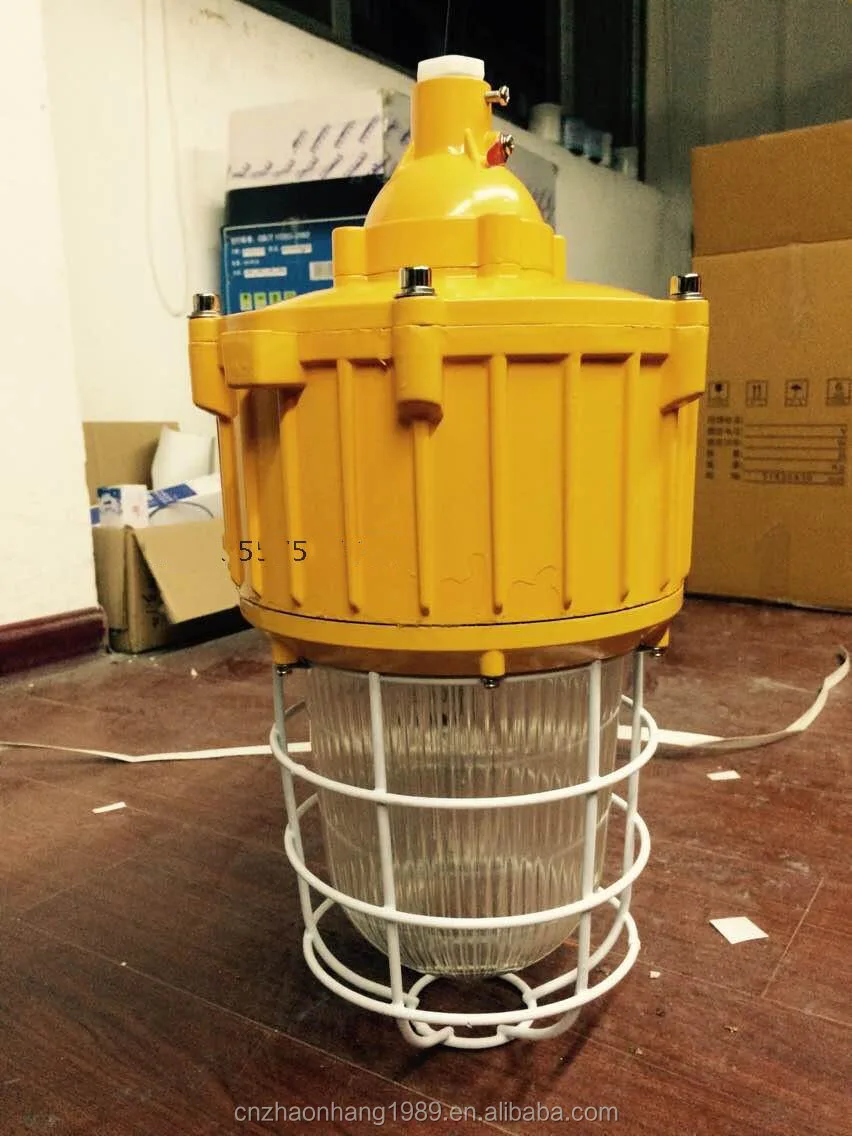

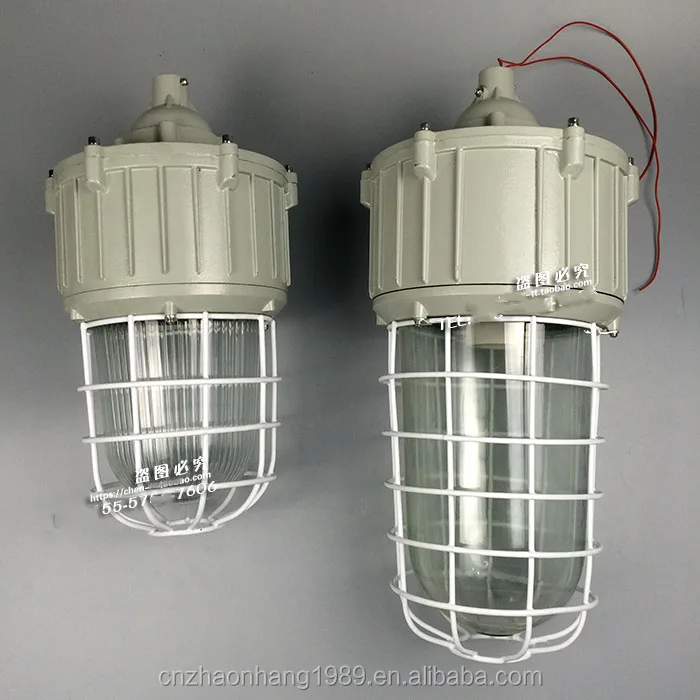

I. CCD92 integrated flameproof explosion-proof lamp
Suitable for explosive gas environment zone 1 and zone 2;
Applicable to A and B Ⅱ Ⅱ, Ⅱ c-class explosive gas environment;
Suitable for temperature groups T1~T6/T4/T3;
There are three types of different specifications to choose from;
Can be equipped with poleless lamp, high pressure mercury lamp, high pressure sodium lamp, metal halide lamp;
Suitable for oil mining, storage, military and military facilities and other explosive dangerous environment.
Ii. CCD92 integrated flameproof explosion-proof lamp technical parameters:
Standard: GB 3836.1, GB 3836.2, IEC60079
Rated voltage: AC 220V
Lamp holder specification: E27/E40
Protection grade: IP66
Corrosion grade: WF1
Inlet specification: g3/4 '
Applicable external diameter of cable: phi 9mm~ phi 14mm
Iii. CCD92 integrated flameproof explosion-proof lamp features:
The lamp adopts screw thread, stop and adhesive explosion-proof structure with excellent explosion-proof performance.
The introduction of the cable adopts a specially designed double-layer sealing clamping structure to ensure the reliability and protection level of the introduction device;
Glass cover, shell ring, pressure ring with epoxy resin with special process of integrated adhesive;
Integrated design, computer cavity completely isolated, electrical connection between the two cavities using specially designed wire crossing device;
Good heat dissipation design, the heat generated by the light source and electrical appliances can be fully transmitted through the shell heat dissipation;
This paper optimizes the design of pole-less lamp to give full play to its characteristics of high luminous efficiency, energy saving and long life.
Optimized light distribution design, high purity aluminum anodized reflector, high reflectivity, improve light efficiency;
Anti-glare design is adopted in the glass cover, and multiple reflective edges are set to effectively reduce glare and light pollution.
Many parts of the lamps are sealed with special design, and the shell is of high protection grade.
The shell is made of copper-free aluminum alloy with high pressure casting and shot blasting followed by high voltage electrostatic spraying.
When the lamp comes out, it has been equipped with cable, which is easy to install and use.
Steel pipe wiring.
Iv. CCD92 integrated flameproof explosion-proof lamp
1, this series lamps and lanterns with a total of three type: CCD92 Ⅰ, CCD92 Ⅱ, CCD92 - Ⅲ;
2. When the lamp is equipped with infinite lamp, the high-frequency power supply and the infinite light source have been matched, and the internal boundary has been completed. The user only needs to access the power supply;
3. This lamp is equipped with high-pressure mercury lamp, high-pressure sodium lamp and metal halide lamp. It has been equipped with rectifier, but no light source.
4. The gas discharge light source is provided by the user, and the light source of yaming and philips brand is selected for quarantine;
5. Regular products are not equipped with capacitor compensators. If necessary, please indicate when ordering;
6. The lamp is equipped with cables when leaving the factory, with the specification of 3 X 1mm2 and the length of 800mm. If there are special requirements, please indicate when ordering;

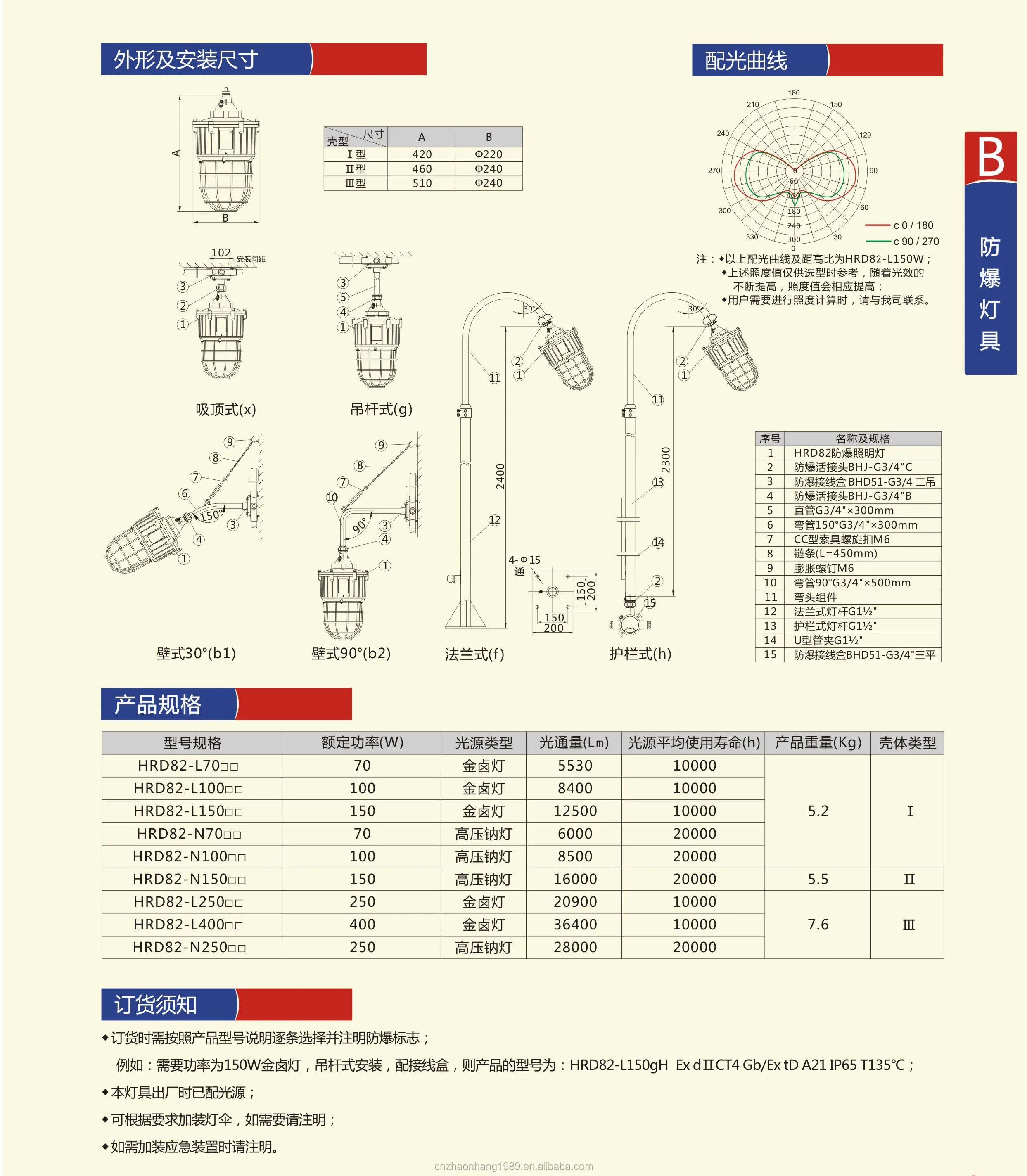

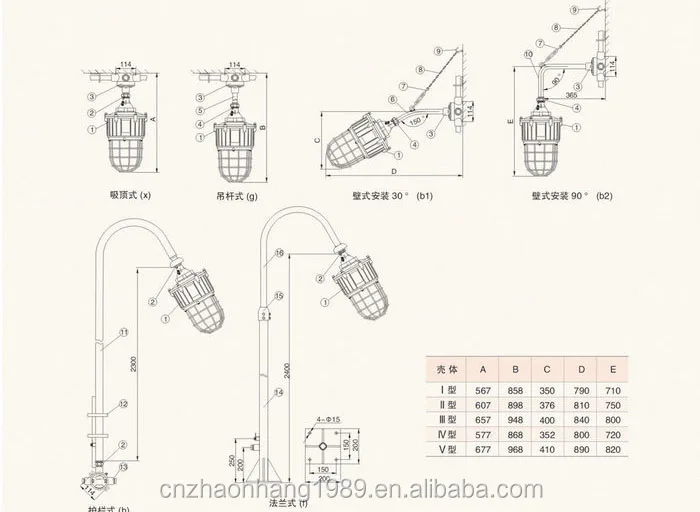

7. When ordering, please refer to the type of light source, power and installation mode, and the model selection table on the next page is reasonable
