LED explosion-proof high energy saving flat desk lamp GCD616 waterproof, dustproof and dazzle proof floodlight chemical plant el Item NO.: 335089

Scope of application

It is suitable for the dangerous environment of petroleum exploitation, smelting, chemical industry, military reserve, offshore oil platform, tanker and other places.

The performance characteristics of

1. Energy conservation and environmental protection: the fourth generation of green and environmental protection, high-power white LED solid-state light source, low energy consumption and high light efficiency achieve the goal of long-term maintenance-free energy saving.

2. Structure science: the light source cavity is designed as an independent cavity, which is conducive to fully cooling LED. The service life of the light source is extended.

3. Reasonable lighting distribution: special lighting distribution design, high light efficiency, high utilization rate, large irradiation area,360 degree omni-directional lighting, uniform illumination, soft light, no glare.

4. Modular design: the light source components, reflector components, power supply modules are designed in standard modules, which is convenient for replacement and supports the maintenance cost in the later period.

5. Strong and durable: the shell is made of copper-free aluminum alloy by die-casting, and the surface is sprayed with high-temperature electrostatic plastic, with excellent anticorrosion and explosion-proof performance.

Technical parameters

Rated voltage :AC/ dc24-220v 50HZ

The light source: LED 50 w

Luminous flux: 4000lm

Corrosion rating :WF2

Explosion mark: Exde IIC T6

Explosion-proof grade :IP65

Insulation grade :I

Lead in cable: diameter 8-12mm

Overall dimension: 200*280mm

Total weight: 3.5kg

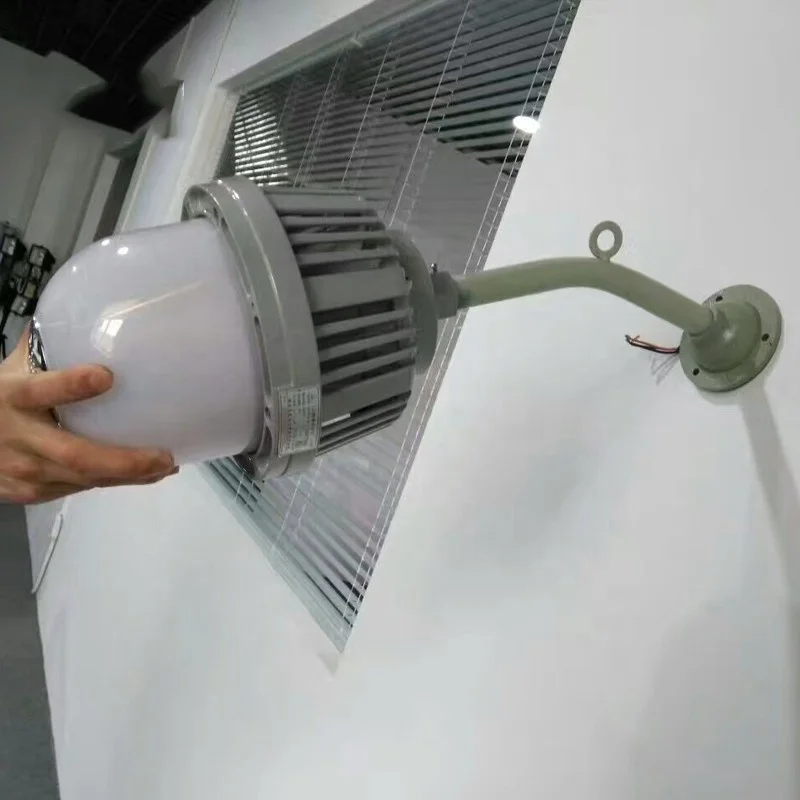

Installation: boom type, wall type, guard bar type, flange type
