Home>Explosion-proof electrical apparatus>ZGS11 US types ZGS series electric Power Distribution Equipment 10KV 80 to 1250kva Transformer Substation

ZGS11 US types ZGS series electric Power Distribution Equipment 10KV 80 to 1250kva Transformer Substation Item NO.: 1942525

Write a Review

US$ 15000.00

Quantity: Stock ( 20 )

Estimate Shipping Cost

ZGS11 US types ZGS series electric Power Distribution Equipment 10KV 80 to 1250kva Transformer Substation

Product Name	ZGS11 US types ZGS series electric Power Distribution Equipment 10KV 80 to 1250kva Transformer Substation
Item NO.	1942525
Weight	10 kg = 22.0462 lb = 352.7396 oz
Category	Explosion-proof electrical apparatus
Creation Time	2022-04-18

1.Application

ZGS11 Combined transformer is widely applied in the upgrading of urban and rural power grid, residential area, high-rise building, hotel, airport, railway, oil field, port, highway, temporary electricity facilities and other indoor or outdoor places.

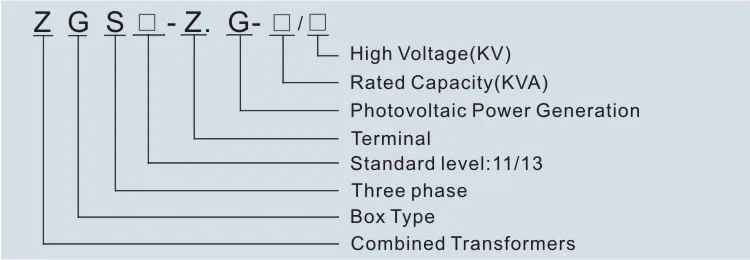

2.Model and meaning

3.Specification:

Model	Capacity (KVA)	No load loss (KW)	Load loss (KW)	No load current (%)
ZGS11-80/10	80	180	1250	0.36
ZGS11-100/10	100	200	1500	0.35
ZGS11-125/10	125	240	1800	0.33
ZGS11-160/10	160	290	2200	0.31
ZGS11-200/10	200	330	2600	0.30
ZGS11-250/10	250	400	3050	0.28
ZGS11-315/10	315	480	3650	0.26
ZGS11-400/10	400	570	4300	0.25
ZGS11-500/10	500	680	5150	0.24
ZGS11-630/10	630	810	6200	0.22
ZGS11-800/10	800	980	7500	0.21
ZGS11-1000/10	1000	1150	10300	0.19
ZGS11-1250/10	1250	1360	12000	0.18
