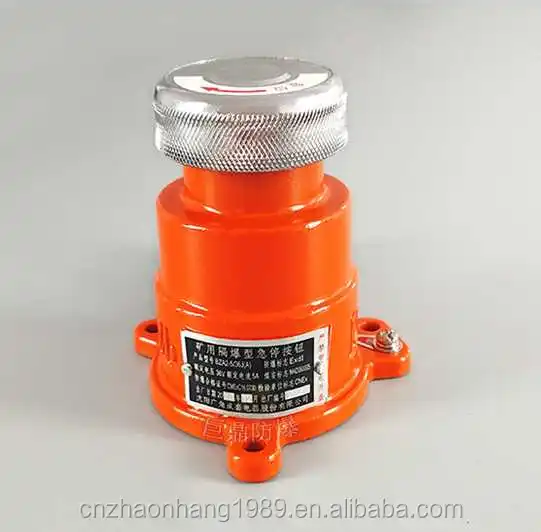

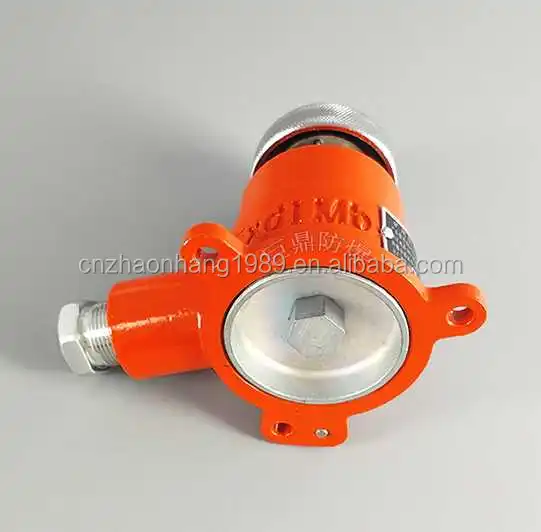

Bza2-5/36j (A) emergency stop button/mine flameproof emergency stop button 5A 36V Special control button for coal mine Item NO.: 335074

Product introduction

Bza2-5/36j (A) mine flameproof emergency stop button (hereinafter referred to as the button), mainly used in underground coal mines with explosive gas (methane) mixture, connected to the control line of 36V and below 36V, directly cooperate with contactors to conduct emergency stop control of signal, electromagnetic starter and other equipment.

Press MT/ t661-1997 "general technical conditions of electrical equipment for underground coal mine", Q/ sgj.35-2011 "explosion-proof type emergency stop button for mine" and other related standards for design, manufacture and inspection.

Product features: emergency stop control instantaneous protection

Executive standard:

35-2011, Q/SGJ.

GB3836.1 ~ 3-2010,

MT624-2007.

Explosion-proof type: mine explosion-proof type

Explosion mark :ExdI Mb

Weight 1.4 KG/a

Bza2-5/36j (A) mine flameproof emergency stop button (hereinafter referred to as the button), mainly used in underground coal mines with explosive gas (methane) mixture, connected to the control line of 36V and below 36V, directly cooperate with contactors to conduct emergency stop control of signal, electromagnetic starter and other equipment.

Model specification bza02-5/36-1

Button number 1

Rated voltage AC24V

Rated current 5

Φ 19 largest cable diameter (mm)

Explosion-proof mark Exd I
