Type 50-219 Fire pipe grooving machine Small steel pipe grooving machine Vertical electro-hydraulic iron pipe grooving machine

Product Name	Type 50-219 Fire pipe grooving machine Small steel pipe grooving machine Vertical electro-hydraulic iron pipe grooving machine
Item NO.	1938413
Weight	8 kg = 17.6370 lb = 282.1917 oz
Category	Explosion-proof electrical apparatus
Creation Time	2022-04-12

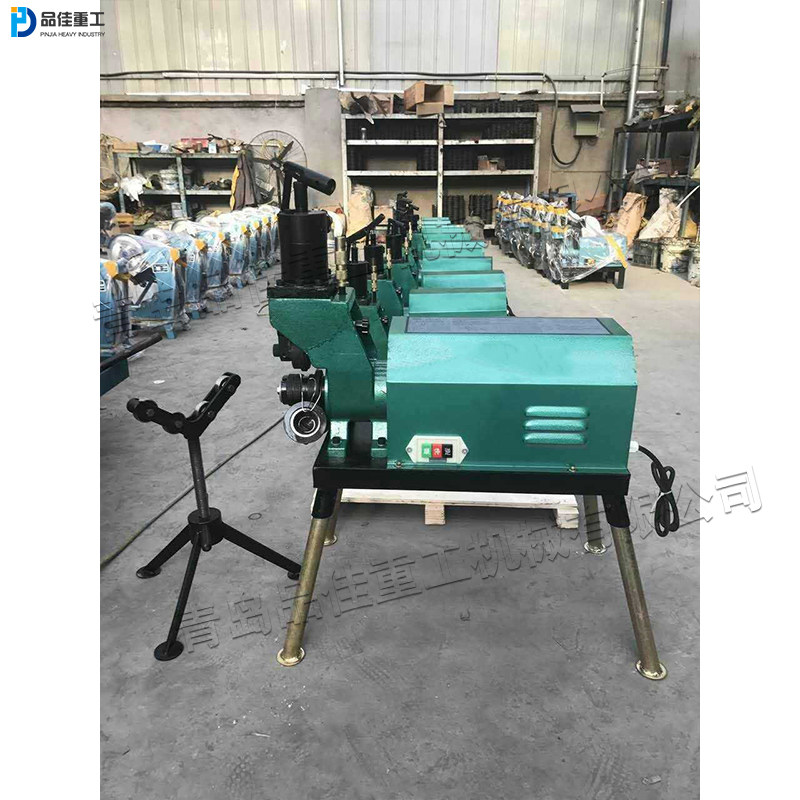

This machine is a tool for pretreatment of pipes when using grooved joints as pipe connectors. The working principle is that the rotating concave pressure wheel drives the pipe to rotate, and the convex pressure wheel slowly pressurizes the pipe under the action of the oil cylinder, so as to form the required groove for use during press assembly. It can be used for the installation of tap water, mine and other pipelines.

Product Name: DRG export grade

Working range: 50-219mm

Wall thickness: ≤ 6mm

Voltage: 380V

Motor power: 0.75kw

Overall weight: 90kg

Overall dimension: 750x450x950mm
