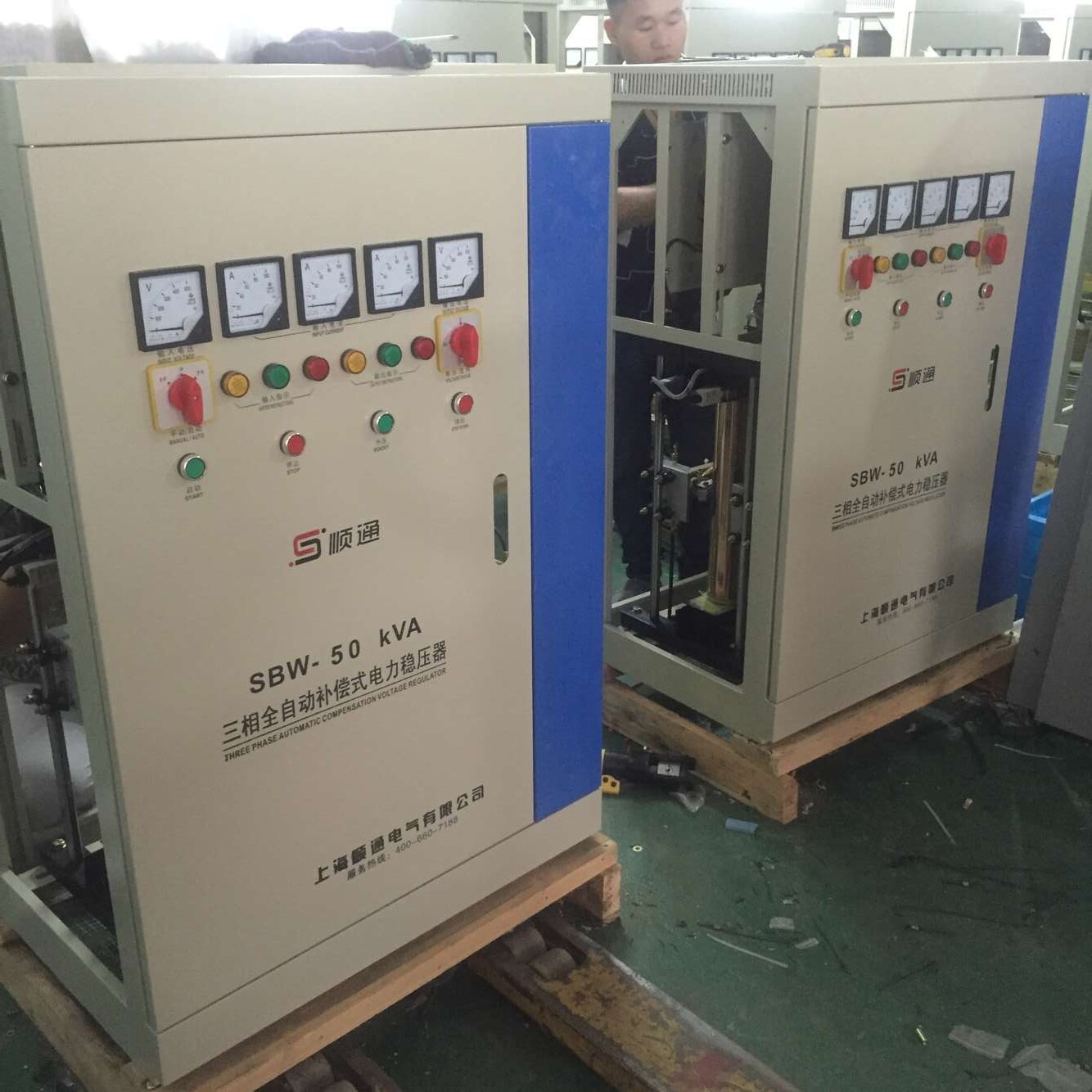

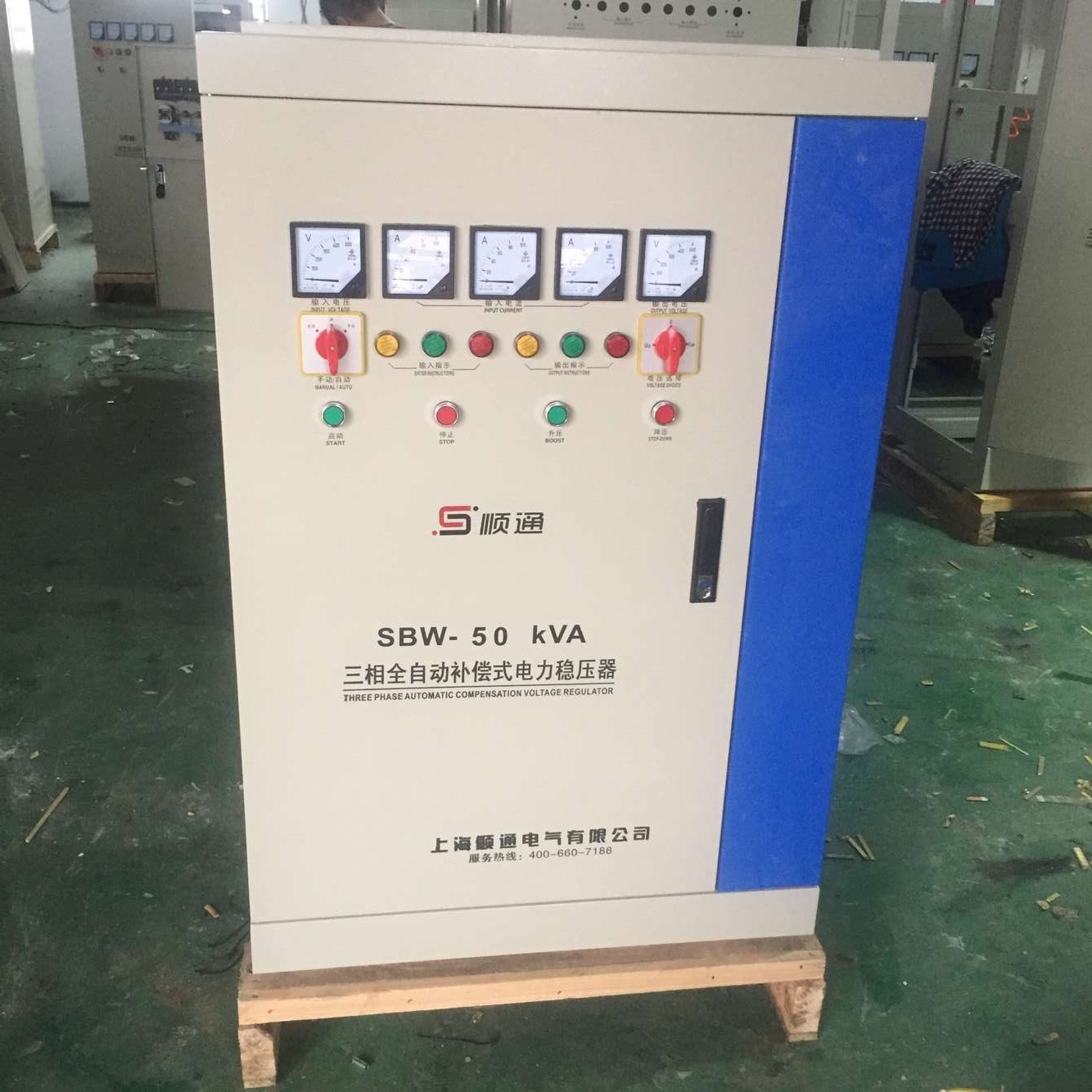

Three phase high power power voltage regulator SBW-50KVA Full automatic compensated voltage regulator SBW-80KVA Item NO.: 1950487

1. Overview (dbw.sbw single and three-phase fully automatic compensated power regulator)

SBW and DBW series single / three-phase fully automatic compensated power regulators are voltage regulators designed by our company to stabilize AC voltage by introducing and absorbing advanced technology from Western Europe and combining with China's national conditions. When voltage fluctuation is caused by voltage fluctuation of external power supply network or load change, the voltage regulator (regulated power supply) can automatically maintain the stability of output voltage. Compared with other types of voltage regulators, the voltage regulator (regulated power supply) has the advantages of large capacity, high efficiency, no wave opening distortion, voltage regulation and balance. The voltage regulator (regulated power supply) is suitable for a wide range of loads and can overload with instantaneous. The voltage regulator (regulated power supply) can work continuously for a long time and switch manually / automatically at will. The voltage regulator (regulated power supply) is equipped with overvoltage, overcurrent, phase loss The utility model has the advantages of small volume, light weight, convenient use and installation, reliable operation, etc.

2. Application occasion (dbw.sbw single-phase and three-phase fully automatic compensated power regulator)

Shanghai NUOJIAN voltage regulator (regulated power supply) is widely used in Large-scale Electromechanical equipment, metal processing equipment, production lines, construction engineering equipment, elevators, medical devices, embroidery and textile equipment, air conditioning, radio and television, household electricity and lighting in the fields of industry, agriculture, transportation, post and telecommunications, military, railway, scientific research and culture. SBW and DBW series voltage regulators shall be used indoors. The normal service conditions of the voltage regulator (regulated power supply) are:

Ambient temperature: - 15 ℃ ~ 40 ℃

Altitude: < 1000M

Relative humidity: < 90%

There is no gas vapor, chemical deposition, dust, dirt and other explosive and corrosive media that seriously affect the insulation of the pressurizer.

There is no serious vibration or turbulence at the installation site.

3. Main technical parameters (DBW. SBW single and three-phase fully automatic compensated power regulator)

Input voltage: single phase 220V ± 20% or 220V ± 30% (to be specified when ordering)

Three phase (three-phase four wire) 380V ± 20% or 380V ± 30% (to be specified when ordering)

Output voltage: single phase 220V

Three phase (three-phase four wire) line voltage 380V or phase voltage 220V

Output voltage accuracy: (2-5%) adjustable

Frequency: 50-60Hz

Efficiency: ≥ 95% (power grade above 50KVA)

Response time: ≤ 1.5s (when the external voltage changes by 10%)

Waveform distortion: no additional waveform distortion

Protection function: it has the functions of overvoltage, overcurrent, lack of phase sequence protection and mains power supply: the mains power and voltage stabilization of three-phase products are convenient for switching

Startup mode: power on automatic startup or manual startup can be selected

Working mode: it can work unattended for a long time and continuously

Insulation resistance: ≥ 2m Ω

Electrical strength: power frequency sinusoidal voltage 2000V for 1 minute without breakdown and flashover
