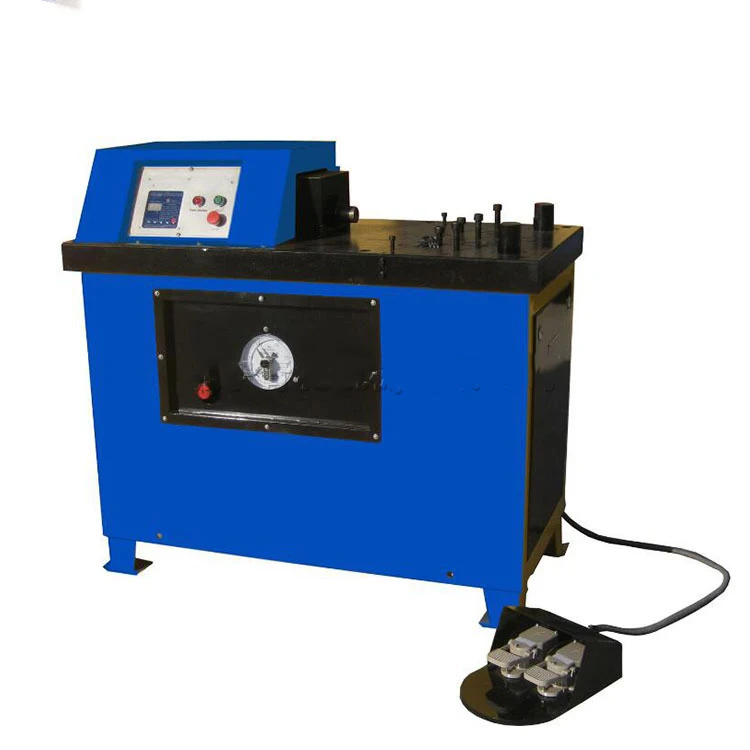

Steel plate bending machine Metalworking Manual steel plate bending machine Iron bending machine Item NO.: 1949289

Please contact customer service

Price is not the real price

Bargaining is necessary

Basic introduction
The electric mechanical equipment has three functions: arc bending, straightening and angle bending. The arc bending and circle bending mechanism can bend circle, arc bending, wave bending and straightening, and the angle bending mechanism can bend various angles. The equipment can process bending square steel, round steel and flat steel. The electrical part is equipped with timing control and automatic reset to ensure the consistency of angle folding. It is used in the same unit as well as in batch production. The processing capacity of the equipment is large, with a maximum of 16mm * 16mm square steel and 50 * 8mm flat steel. The production efficiency is high, with 400 pieces of angle folding per hour, wide range of use, convenient operation and good applicability. It is an indispensable electric mechanical equipment for iron making metal processing.
Undefined
Basic parameters
Product model:
JK-DY-16
Processing capacity:
Flat iron ≤ 10 mm * 50 mm
Round steel ≤ Φ 16mm
Square steel ≤ 16mm * 16mm
working pressure:
Maximum: 20MP
Working schedule:
Maximum: 250mm
Motor performance:
Power 7.5kw voltage 380V
Main features:
1. This machine can finish the processing and forming of special-shaped iron work piece in turn, the consistency of iron work piece is good, the publication can realize the mass production, and the working efficiency is high.
2. Stepless pressure adjustment, stable mechanical operation, to ensure the effectiveness of its work.
3. Manual control and foot switch control are both available, convenient to operate, safe and reliable.
4. It has high processing strength and can bend 16mm * 16mm square steel.
5. High production efficiency, bending 300 square steel of 12mm * 12mm every hour.
6. The actual structure of the machine is reasonable, easy to operate, easy to maintain, and easy to replace the mold and fixture.
7. The size and positioning design of the working surface are reasonable to ensure that more than 90% of the bending deformation size of the iron industry is appropriate.
Boundary dimension:
L × w × H = 1300mm × 700mm × 1400mm
Net weight:
750KG
Gross weight:
850kg
