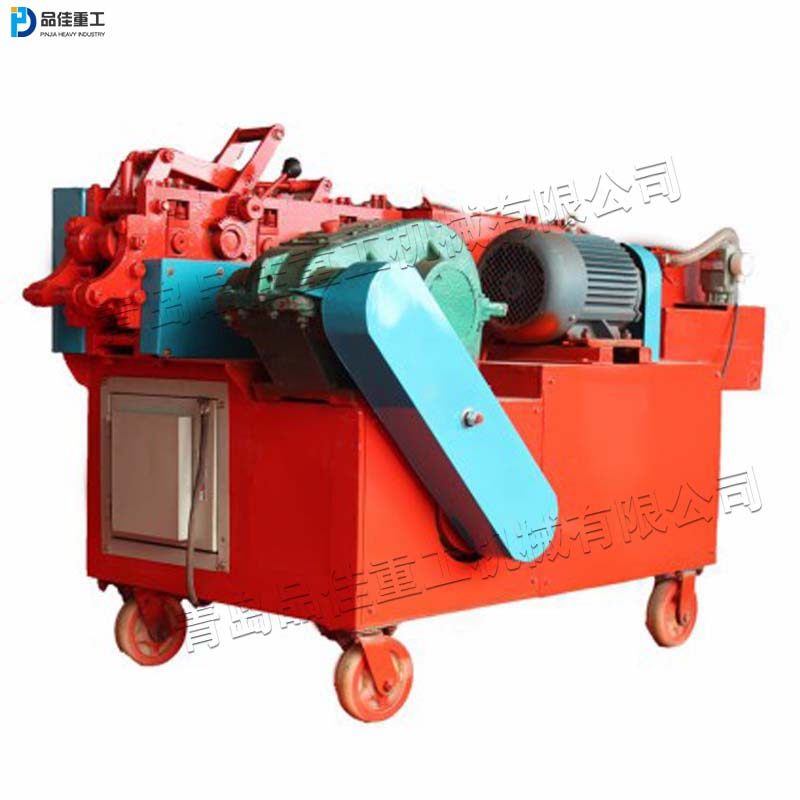

Steel pipe straightening, derusting and painting integrated machine Repair device for bending pipe in building construction Pipe Item NO.: 1943746

The steel pipe straightening, derusting and painting all-in-one machine is used to straighten and repair the steel pipe bent and deformed in construction. It is the standard formulated by the Ministry of construction (the bending degree per meter is less than one thousandth). The steel pipe straightening machine is an ideal mechanical equipment for construction enterprises, construction steel pipe leasing enterprises and scaffold construction units. The steel pipe straightening and derusting and painting machine is closely combined with the straightening system, derusting machine and painting box. It can be straightened separately or carry out the dual function operation of steel pipe straightening and derusting. If it is necessary to paint the steel pipe, it can also be completed at the same time.

1. Applicable steel pipe diameter: Ö 48 - Ö 51

2. Feed speed of steel pipe: 16m / M

3. Steel pipe straightening parameters: straightening elbow (0 ° - 85 ° elbow) straightening effect: ≤ 3 °

4. Derusting method: double wire brush 360 ° high-speed rotation in positive and negative directions

5. Host power: 7.5kw

6. Overall dimension: length 2700 * width 800 * height 1200

7. Host weight: 950kg
