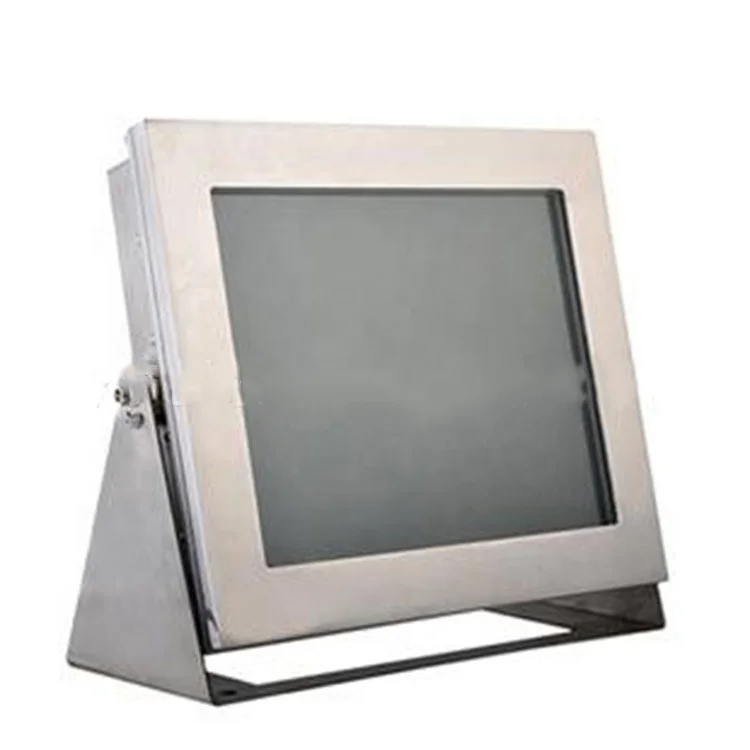

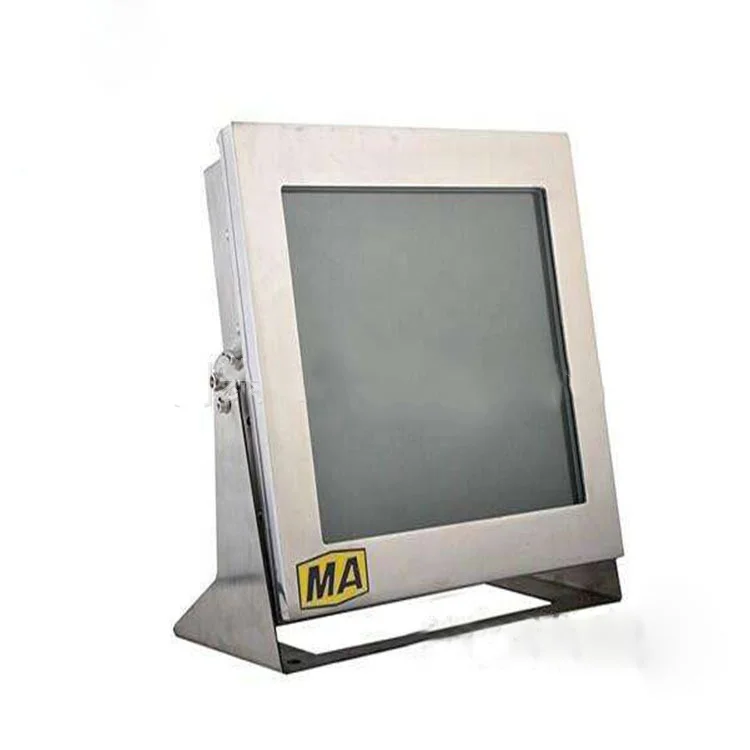

Stainless steel explosion-proof display screen LED Explosion-proof Display Explosion-proof display explosion-proof monitor Item NO.: 1942518

Please contact customer service

Price is not the real price

Bargaining is necessary

Explosion-proof display product features:
The high quality 17 inch LCD panel is adopted, the resolution is 1280x1024 and the dot distance is 0.264mm.
The display window is made of special tempered flat glass, which ensures the display effect of the screen while being strong and durable.
It can be monitored on site in explosion-proof area.
It can work steadily for a long time from - 20 ~60 ~C.
It has VGA interface and standard video interface, and supports NTSC and PAL.
Planar board design, fully space-saving, lightweight shape, easy to carry and use.
The viewing angle can be adjusted according to the usage habit.
Protection Level IP65
YHJ-171 explosion-proof display is mainly installed directly on the desktop or platform. It can also be hoisted by special brackets. However, when indoor and outdoor installation, it is necessary to avoid the rain when it is placed vertically.
100VAC ~ 240VAC wide voltage range.
Authentication
Exd II BT6/DIP A20 TA, T6
Explosion-proof certificate number CNEx06.1580
Mechanical index
Stainless steel 304 or 316L
Protection Level IP65
Weight 24.6Kg
Transport Weight 28Kg
Number of outlet holes 2
Outlet hole thread specification G-3/4"
Electrical Indicators
Input Voltage 100VAC~240VAC
Power consumption 30W
Input signal 1-way compound video signal or 1-way RGB simulation
Signal input, one of which is supported when leaving the factory
Panel Switch 1 Self-locking Power Supply Switch
Electrically connected 3-core power cable
Video input 1 coaxial cable with BNC plug
RGB analog input 1 cable with 15 needles D-SUB connector
