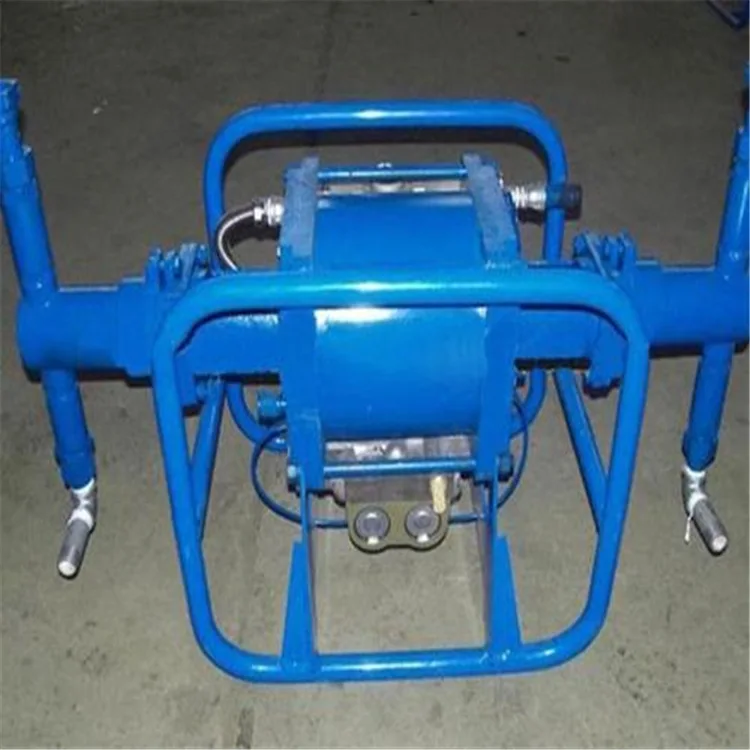

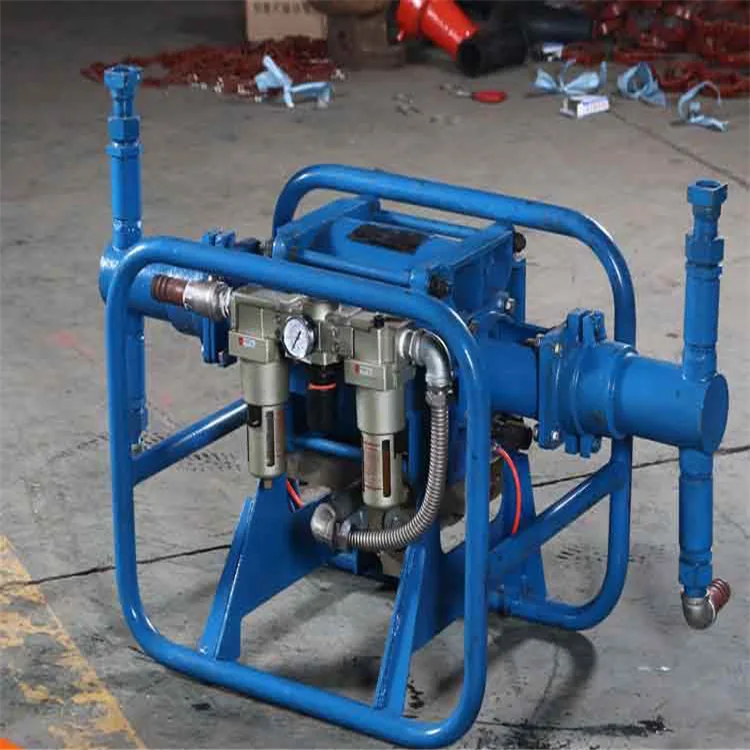

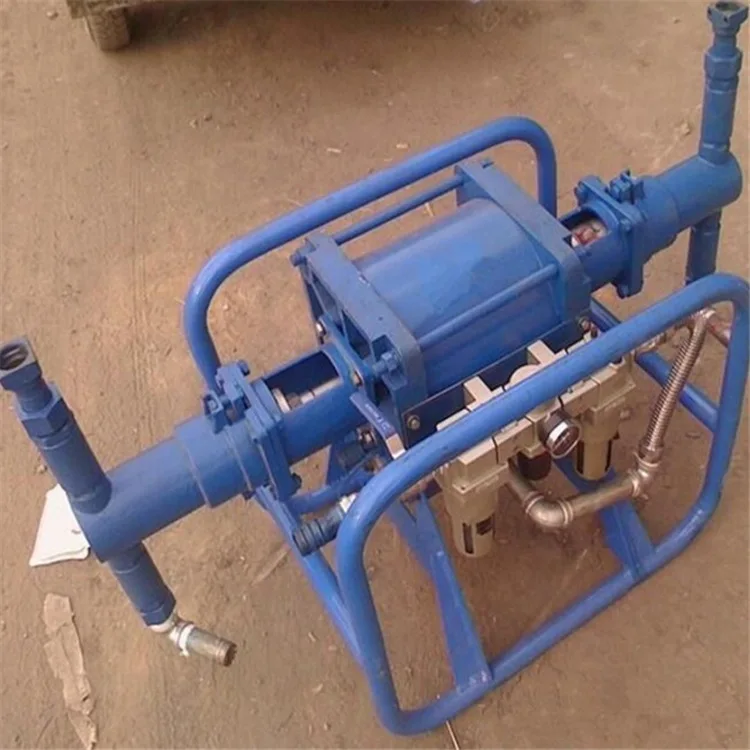

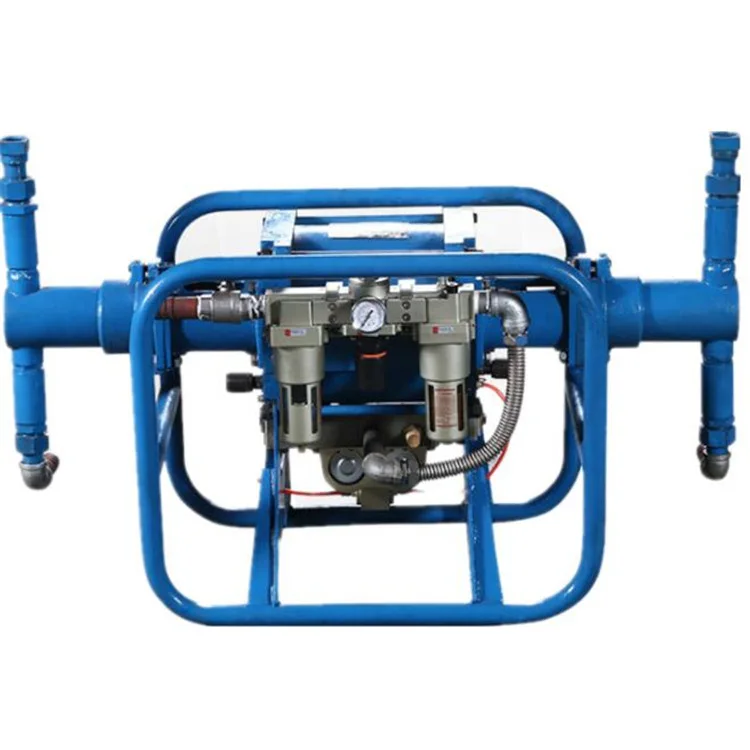

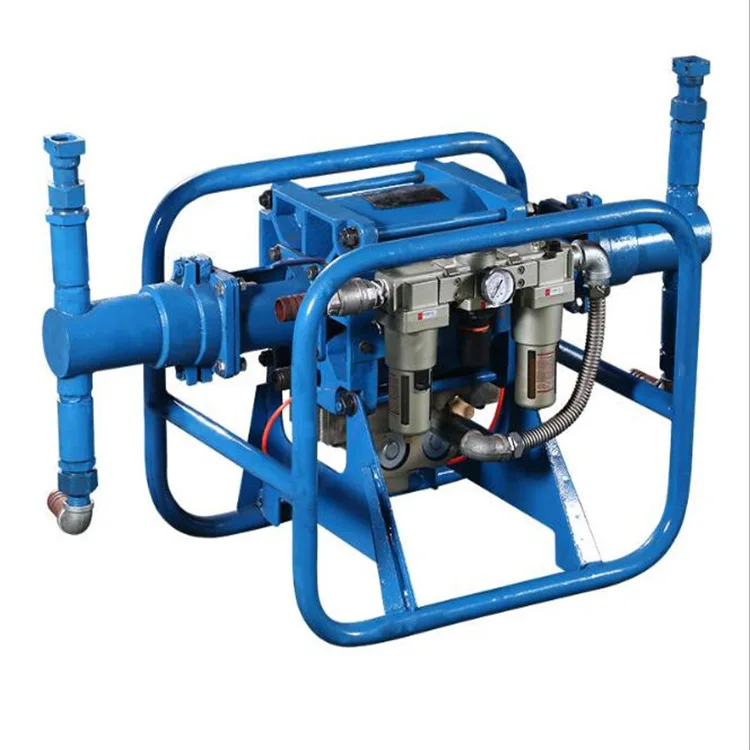

Pneumatic grouting pump small-scale Hydraulic pneumatic grouting pump horizontal Item NO.: 1944511

If you have any questions about the product

Please contact customer service

Price is not the real price

Bargaining is necessary

2zbq-9 / 3 mine pneumatic grouting pump is mainly used for the waterproof and reinforcement grouting works of coal mine, iron mine and other shaft walls, as well as the grouting and consolidation works of subway, tunnel, water conservancy, building and other grouting water blocking and broken rock strata. It can be used safely in inflammable, explosive, strong magnetic field, radiation, dusty, temperature changing and drenching places. It can be adjusted steplessly. As long as the size of the air source switch is controlled, the flow of the slurry can be changed, and the constant pressure automatic variable can also be used, that is, the discharge volume will decrease with the increase of the grouting pressure.
Features of 2zbq-9 / 3 mine pneumatic grouting pump
1. It is small in volume, light in weight, convenient in moving and handling, and suitable for multi-point grouting with frequent moving.
2. Due to the use of pneumatic drive, the grouting performance of the pump is very suitable for the condition that large flow is required when the grouting pressure is low, and small flow is required when the grouting pressure is increased.
3. It can also be used in the working environment of flammability, high explosion, water sprinkling and large dust due to the use of pneumatic transmission.
4. Under the condition that the slurry ratio is not strict, one pump can be used to realize double liquid grouting, which greatly reduces the cost of construction equipment.
Application scope of 2zbq-9 / 3 mine pneumatic grouting pump
1. In construction engineering, it is used to transport mortar vertically and horizontally.
2. In the metallurgical and iron and steel sector, it is used for the maintenance of blast furnaces and other equipment.
3. It is used for grouting in national defense engineering, civil air defense engineering, mine and tunnel construction.
4. In the chemical sector, it is used to transport slurry like raw materials (color paste, coating), magnetic materials and other media.
5. In farmland and water conservancy projects, it is used to strengthen dams. Sand well drilling is used to strengthen the well wall, etc.
6. In railway construction, it is used for grouting reinforcement of bridges and culverts.
7. It is used to transport fly ash mortar in thermal power plant.
8. Prestressed component engineering is used for mortar injection expansion, etc.
9. In the maintenance of highway pavement, it is used for the bottom of cement concrete pavement to void and press mortar.
Technical parameters of 2zbq-9 / 3 mine pneumatic grouting pump
Rated displacement 9L / min
Rated pressure 3Mpa
2 sand tanks
Inner diameter of slurry inlet pipe and slurry outlet pipe φ 32mm
Operating weight 60kg
