Outdoor and indoor metal explosion proof electrical 24 way mcb power distribution box Item NO.: 1943286

Write a Review

US$ 1600.00

Quantity: Stock ( 10 )

Estimate Shipping Cost

Outdoor and indoor metal explosion proof electrical 24 way mcb power distribution box

Product Name	Outdoor and indoor metal explosion proof electrical 24 way mcb power distribution box
Item NO.	1943286
Weight	10 kg = 22.0462 lb = 352.7396 oz
Category	Explosion-proof electrical apparatus
Creation Time	2022-04-19

Outdoor and indoor metal explosion proof electrical 24 way mcb distribution box


Product Feature

							1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray. Shell compact structure, high density material strength, explosion-proof performance, the surface of plastic powder adhesion ability with good anti-corrosion, the surface smooth, elegant appearance. 

							2.Install inside component: C65, C120, NSK, D247, CM1 breaker, signal light and so on. If other special components are needed, it should contact with the engineering technical of company. 

							3.It has functions of overload protection, short-circuit protection, earth leakage protection and light control. 

							4.This product is compound modular construction, switch cavity is flame-proof type, generatrix cavity and connecting line cavity are increased-safety type, it can combine each loop freely in terms of customer’s requirements. 

							5.It can be customized: like adding SPD (surge protection device), ampere meter, voltmeter, mutual inductor and so on. The material of conventional products’ operating handle is engineering plastics, and the operating handle can add padlock. The material of miniature circuit breaker’s padlock handle is high-strength aluminum alloy. 

							6.Steel tube, explosion-proof flexible pipe, explosion-proof cable, wiring is ok.

Product Paramenters

Model	Rated Voltage (v)	Rated current of major loop	Branch number	Master switch number of major loops (set)	Nominal voltage of branch
BXM(D)51-4	380 220	60-250	4		1 3
BXM(D)51-6			6		5
BXM(D)51-8			8		10
BXM(D)51-10			10		15
BXM(D)51-12			12		20
BXM(D)51-4k			4	1	25
BXM(D)51-6k			6		32
BXM(D)51-8k			8		40
BXM(D)51-10k			10		56
BXM(D)51-12k			12		60

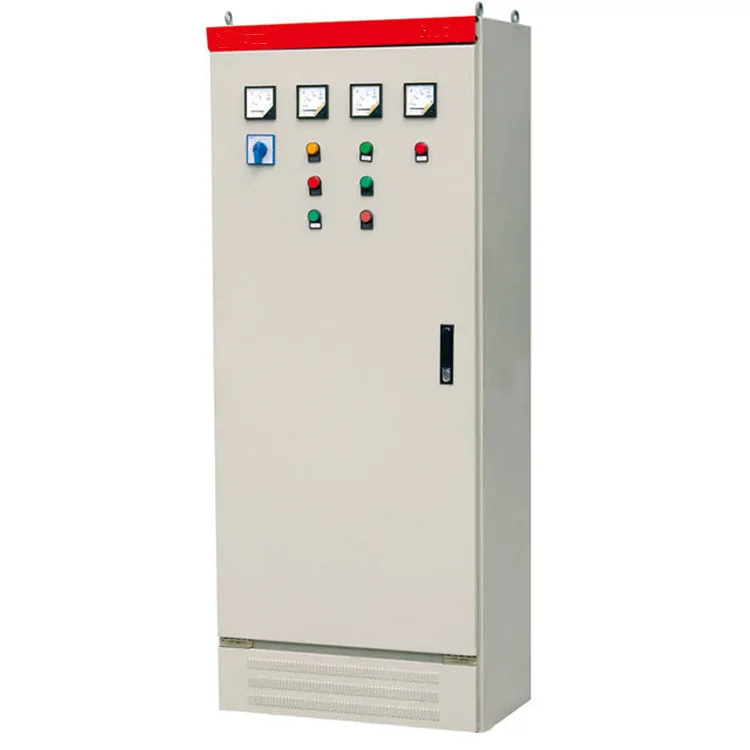

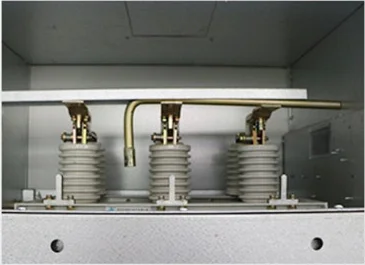

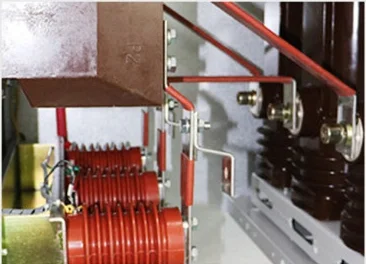

Details Images

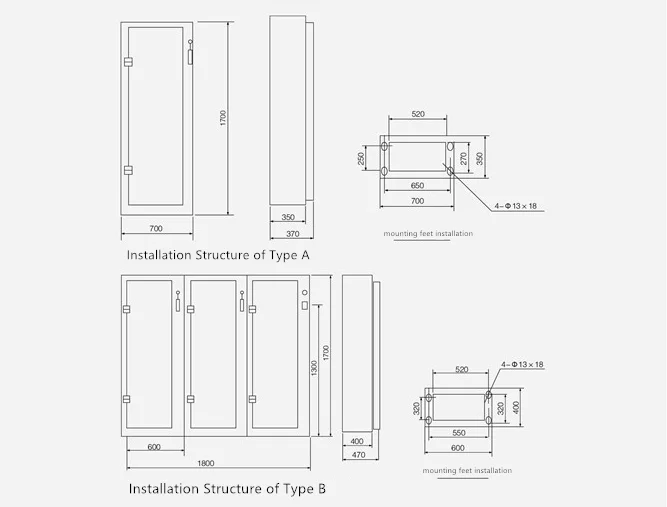

Size

Applications

Dangerous places like zone 1, zone 2, zone 20, zone 21 and zone 22 
IIA, IIB explosive gas atmosphere or flammable dust atmosphere 

Indoor, outdoor (IP54, IP65*) 

Temperature group: T1~T4/T5/T6 

Widely used in petroleum, chemical industry, aviation & military industry
