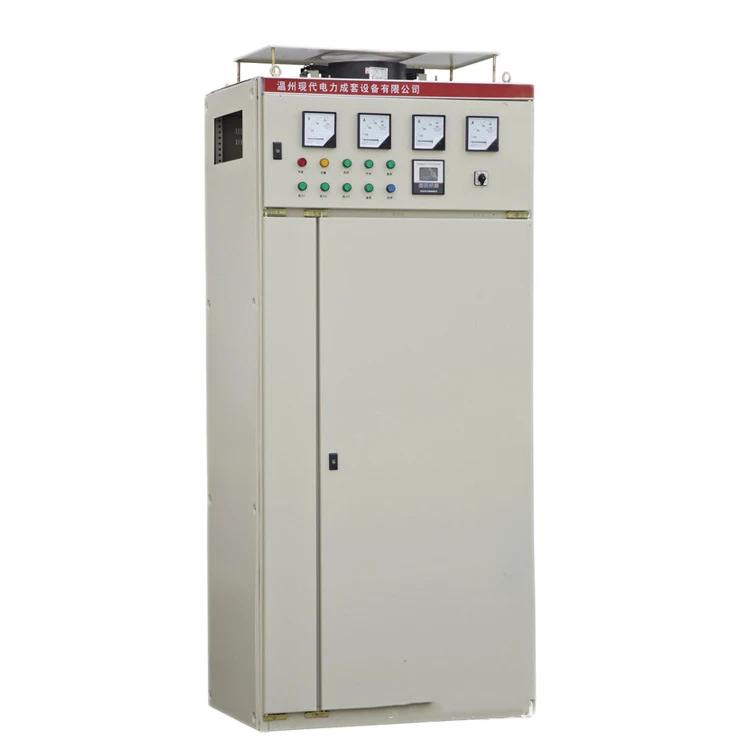

Modern reactive compensation cabinet Low voltage LBQ Continuous reactive compensation cabinet Harmonic filter cabinet Item NO.: 1947145

If you have any questions about the product

Please contact customer service

Price is not the real price

Bargaining is necessary

The continuous reactive power compensation device (hereinafter referred to as the device) is a new type of reactive power compensation device developed with the latest technology. At present, the reactive power compensation device of the power grid at home and abroad mainly adopts the method of grading switching of parallel capacitors, which can not make the reactive power of the power grid fully compensated. The power grid is still often in the state of under compensation or over compensation, and the power factor cannot be close to 1. This device has a great impact on the power supply The reactive power of the network is automatically and continuously compensated, so that the power factor is always close to 1, which can not only maximize the capacity of power supply equipment, but also avoid over compensation or under compensation of the power grid, play the effect of energy saving and power saving, and reduce the line loss. The device is applicable to the power users who need reactive power compensation, such as industrial and mining, medical treatment, scientific research, enterprises, oil and coal fields, ports, residential areas, public facilities, power grids, etc.
Basic principle: f f f f The basic principle diagram of continuous reactive power compensation (1) is the principle diagram of the device. The fixed capacitor and variable voltage source (UV) are connected to the power grid in series. By changing the size of the voltage source (UV), the compensation current of the capacitor is changed continuously to achieve continuous compensation. The selected variable voltage source (UV) must be a sine wave voltage with the same phase and frequency as the power grid voltage, and its voltage change range is 0-u.
Main parameters:
1. Rated capacity, model and specification of automatic continuous reactive compensation cabinet rated voltage (V), rated capacity (kvar), compensation current (a) lbq-a 380 90 0-135 lbq-a 380 120 0-180 lbq-a 380 150 0-225 lbq-a 380 180 0-260 lbq-a 380 210 0-303 note: if the rated capacity of compensation cabinet cannot meet the user's requirements, the user shall negotiate with the manufacturer to determine.
2. Rated frequency: 50Hz.
3. Rated voltage 380V ± 10%; harmonic voltage distortion thd < 5%.
4. The delay interval between 2 and 99S is set by the user.
5. Cos φ value is set to 0.80-0.99, which is set by the user.
6. The device is equipped with overcurrent, overvoltage and undervoltage protection.
7. The device is equipped with phase sequence protection.
8. The device is equipped with instantaneous overvoltage protection.
9. The dynamic tracking response time of the device is fast.
10. It is equipped with automatic and manual conversion functions.
