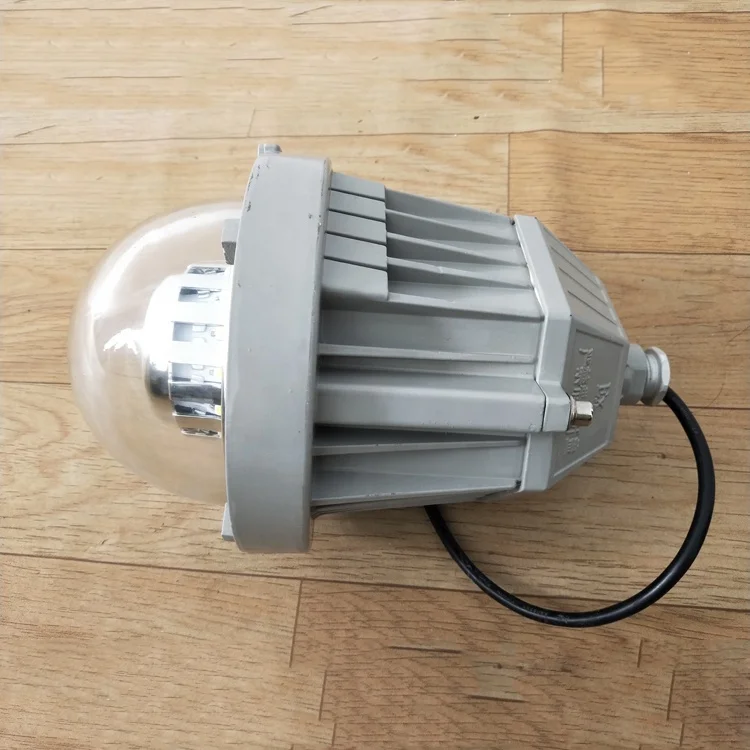

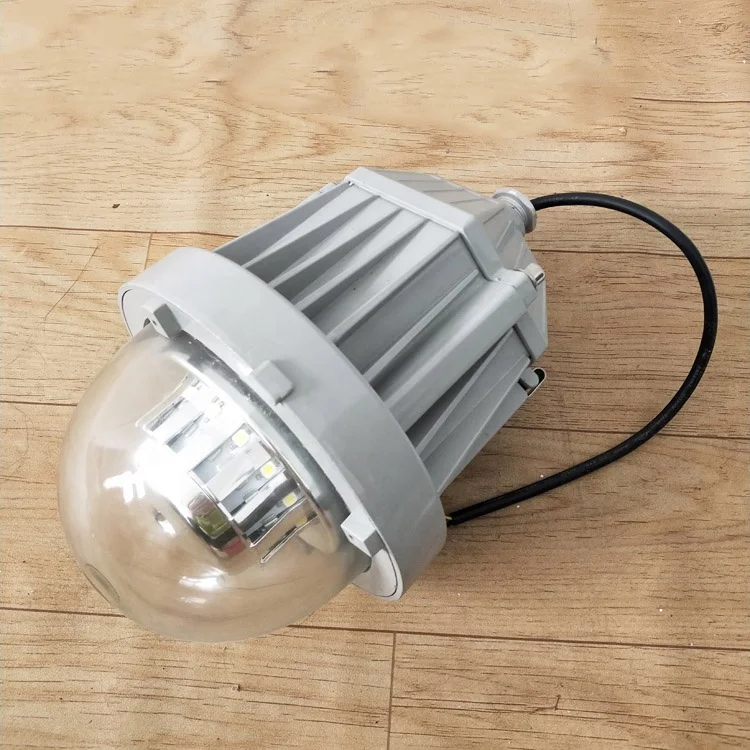

LED explosion-proof flat desk lamp Industrial light Outdoor waterproof LED explosion-proof lamp Super bright Free maintenance Item NO.: 336072

Application:
It is suitable for inflammable and explosive dangerous places of petroleum, petrochemical and chemical enterprises.
It is suitable for outdoor operation, construction site, installation, facilities and other places.

Material features:
Excellent explosion-proof performance, can be used safely in various inflammable and explosive places.
High power LED as light source, high luminous efficiency, long life.
Adopt ring lighting distribution design, lighting range is large, Angle is wide, brightness is high, illuminance is even.
With excellent corrosion resistance, ensure that lamps and lanterns can be in the outdoor long-term sun and rain, wind and rain long - term reliable work.
The shell is made of high-strength aluminum alloy material and bulletproof plastic material, and has been optimized for strong impact and impact resistance.
Adopt the middle hollow heat dissipation structure, accelerate the air convection, effectively control the temperature rise of each part, ensure the lamp can work stably and reliably for a long time.
After careful layout design, lamps and lanterns installation, wiring convenient, simple maintenance, fast.
According to the actual needs of the site, the installation method can be used to install the bent rod through the screw thread on the top cover or to install the top suction bracket and the side wall.
Technical parameters:
Ex d IIC T6
Rated voltage: 220VAC 50Hz
Adaptive light source: LED

Light source power: 36W

Enclosure protection: IP66
Insulation grade: I
Corrosion rating: WF2
Incoming thread: g3/4
Leading cable: phi 8~ phi 14mm

Total weight: 5kg

Notes:

Installation and maintenance of lamps and lanterns, must first disconnect the power supply, until the lamps and lanterns after cooling.
When using, the lamp surface has certain temperature rise, belongs to the normal phenomenon, must not touch.
The transparent part is bulletproof glue material, do not use chemical reagent to clean the surface, can only wipe with wet cloth.
Lamps must be reliably grounded, no matter how they are used.
The bolts at the triangle mark on the top of the housing are for factory cover maintenance fasteners.
