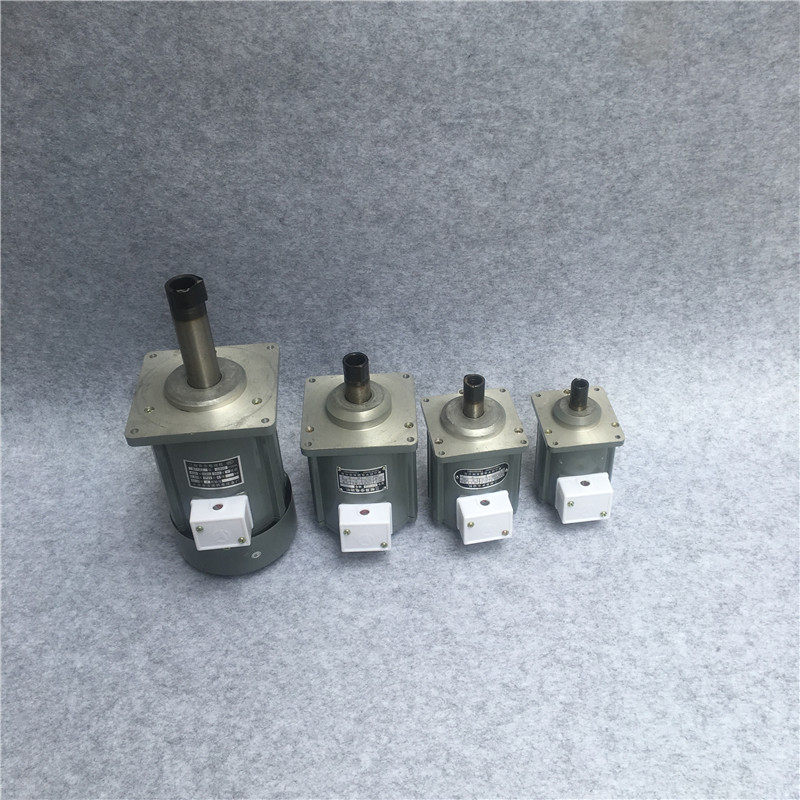

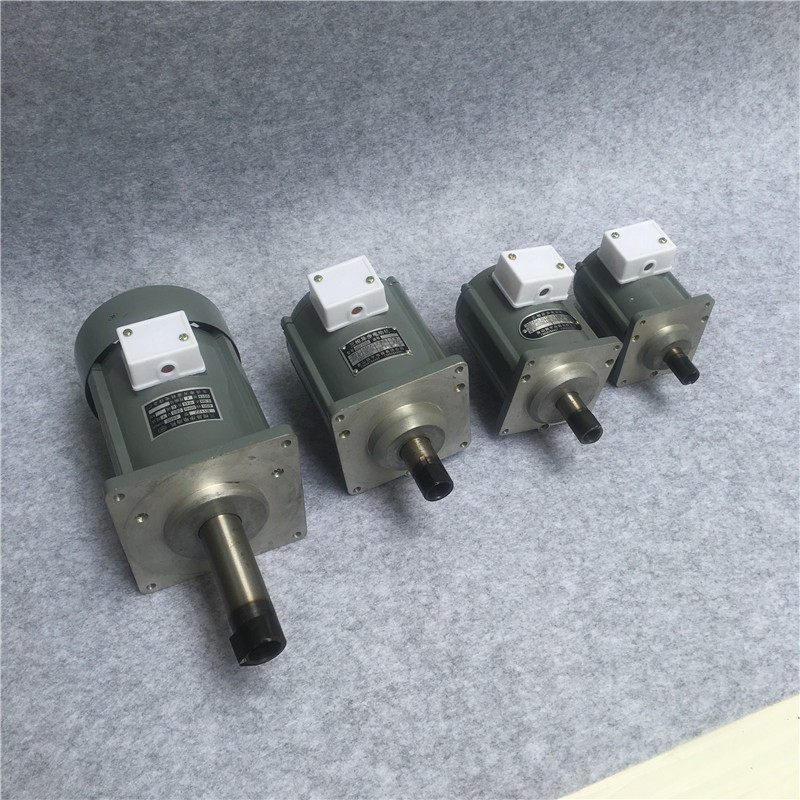

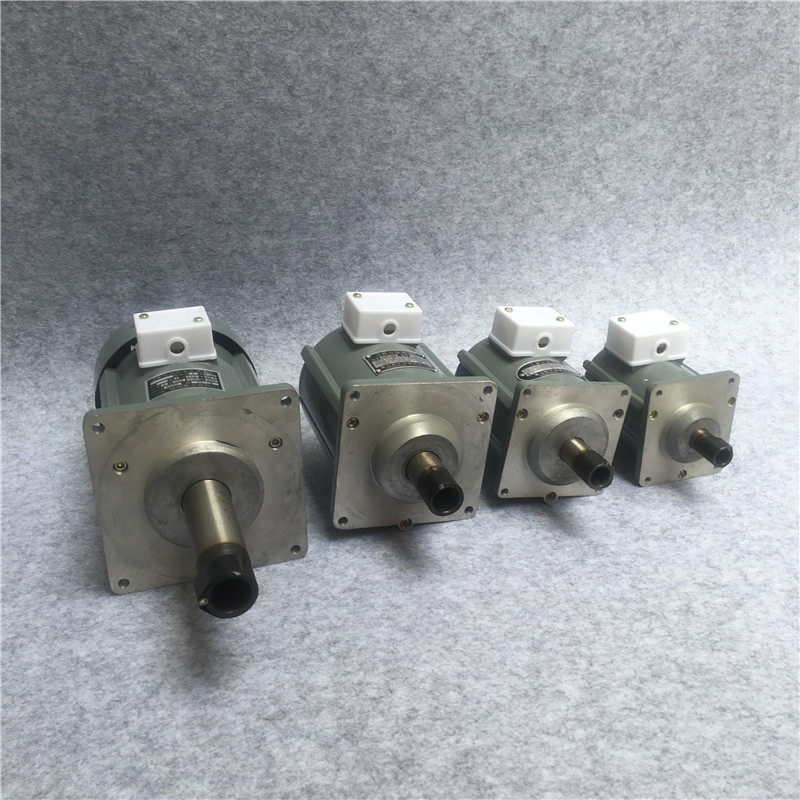

Hydraulic holding brake miniature Motor three-phase asynchronous motor B062Z YDT60-II YDT80-2 60W Copper core Item NO.: 1950499

The company produces hydraulic brakes, hydraulic thrusters, hydraulic micro motors, welcome to consult

The motor has the characteristics of small volume, light weight, reliable operation, convenient maintenance and high force and energy index.

1. Use of motor

1. Service conditions

The machine is used in 380V, 50Hz three-phase AC power supply; The altitude of plateau shall not exceed 1000m; The temperature of cooling medium used shall not exceed + 40 ℃.

2. Precautions before use;

(1) Check whether the parts are complete and whether the fastening parts are loose.

(2) Pull the rotor by hand, listen carefully for friction and other noises, and check whether the bearing rotates freely

(3) Use a 500 megohmmeter to measure the phase to phase and ground insulation resistance of the motor, and its value shall not be less than 0.5 megohm. Otherwise, it must be dried until it meets the requirements before it can be used.

(4) Check whether the power supply voltage is consistent with the nameplate voltage.

2. Installation method

The motors are installed vertically without base. The dimensions are shown in the figure. The explosion-proof motor is otherwise specified, and the installation dimensions and power are the same.

3. Main technical indicators

model

Power (W)

Rated current a

speed

(RPM)

Efficiency factor

Efficiency%

Starting current

Starting torque

Load duration%

220V

380V

Rated current

Rated torque

forty

BO62Z

sixty

zero point two eight

two thousand and five hundred

zero point six five

fifty-five

６

two point four

forty

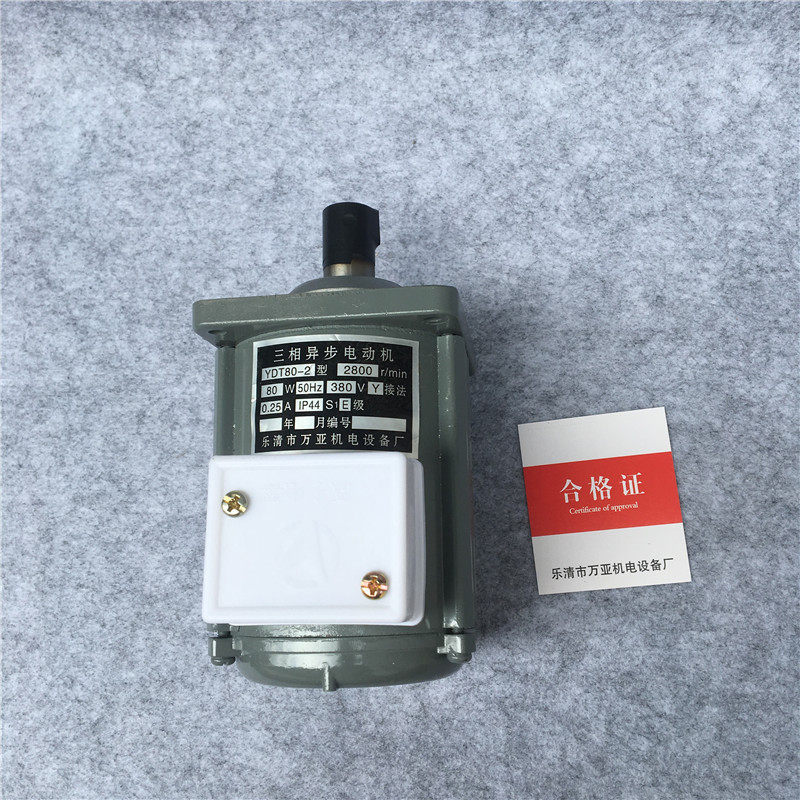

YDT80-2

eighty

zero point three two

two thousand and eight hundred

zero point six six

fifty-six

６

two point four

one hundred

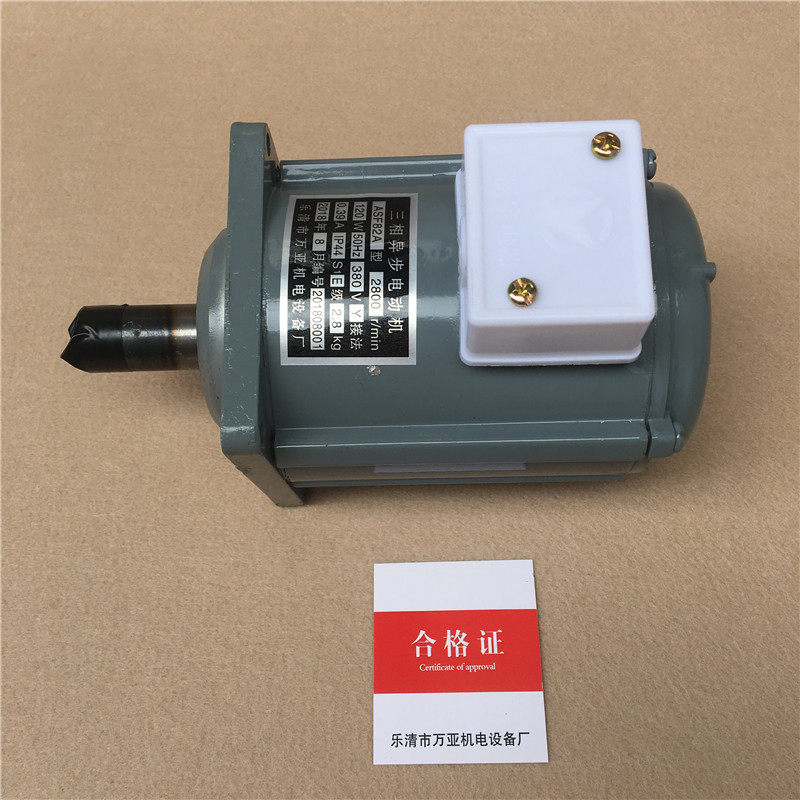

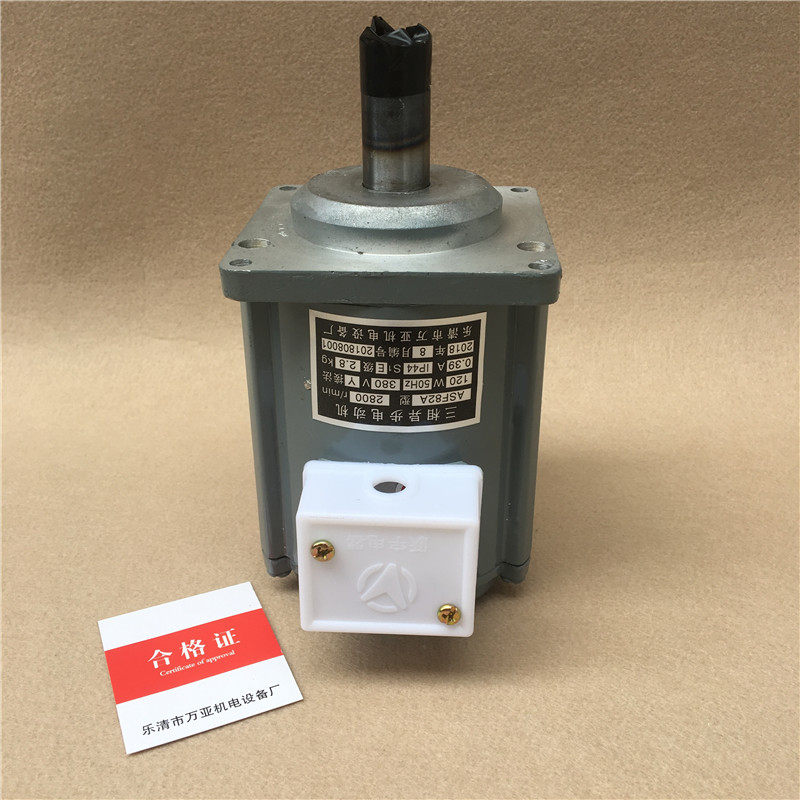

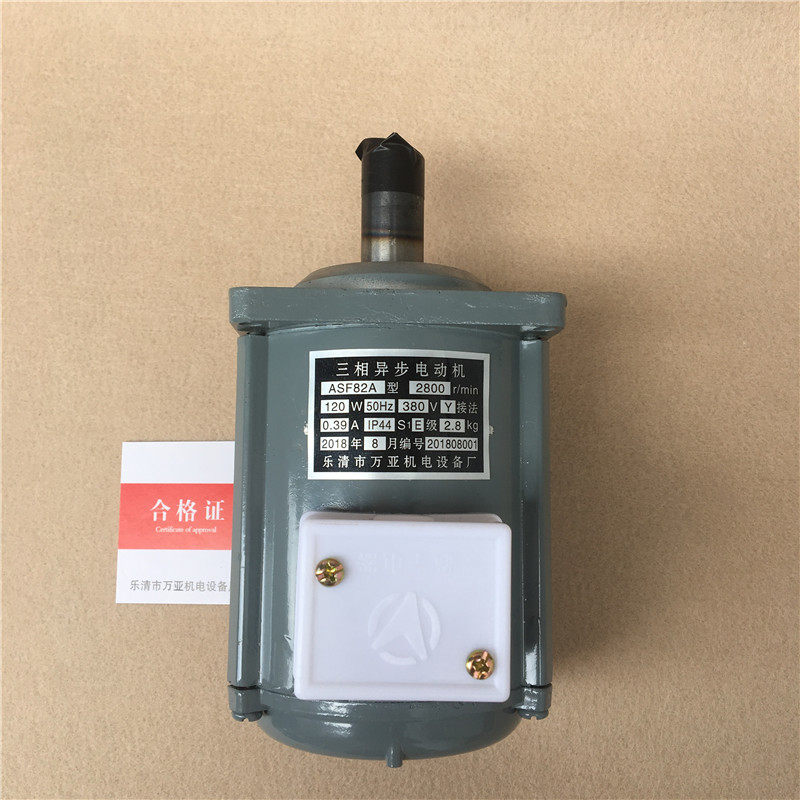

ASF82A

one hundred and twenty

zero point three eight

two thousand and eight hundred

zero point seven

seventy

６

two point four

one hundred

ASF-82A

one hundred and forty

zero point three nine

two thousand and eight hundred

zero point seven two

seventy-two

６

two point four

one hundred

ASF-102A

two hundred and fifty

zero point six two

two thousand and eight hundred

zero point seven six

seventy-six

６

two point four

one hundred

Technical parameters:

model

Rated power (W)

Rated current (a)

Rated voltage (V)

Rated speed (RPM)

YDT60-2

60W

zero point two eight

three hundred and eighty

two thousand and eight hundred

YDT80-2

80W

zero point three two

three hundred and eighty

two thousand and eight hundred

YDT120-2

120W

zero point three nine

three hundred and eighty

two thousand and eight hundred

YDT140-2

140W

zero point four five

three hundred and eighty

two thousand and eight hundred

YDT250-2

250W

zero point six eight

three hundred and eighty

two thousand and eight hundred

YDT400-2

400W

zero point nine eight

three hundred and eighty

two thousand and eight hundred

YDT1100-2

1100W

two point five

three hundred and eighty

two thousand and eight hundred
