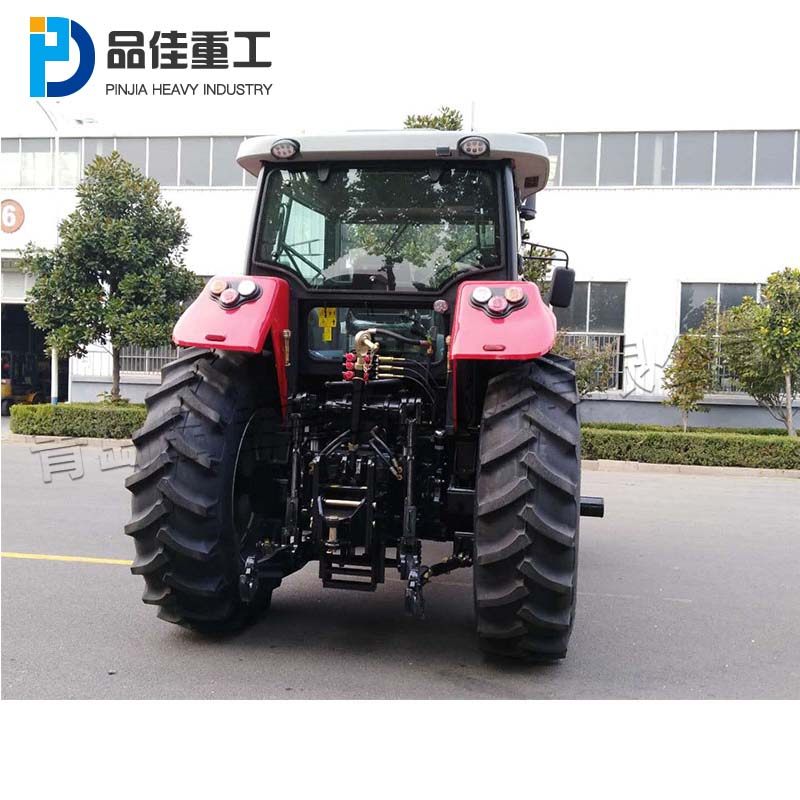

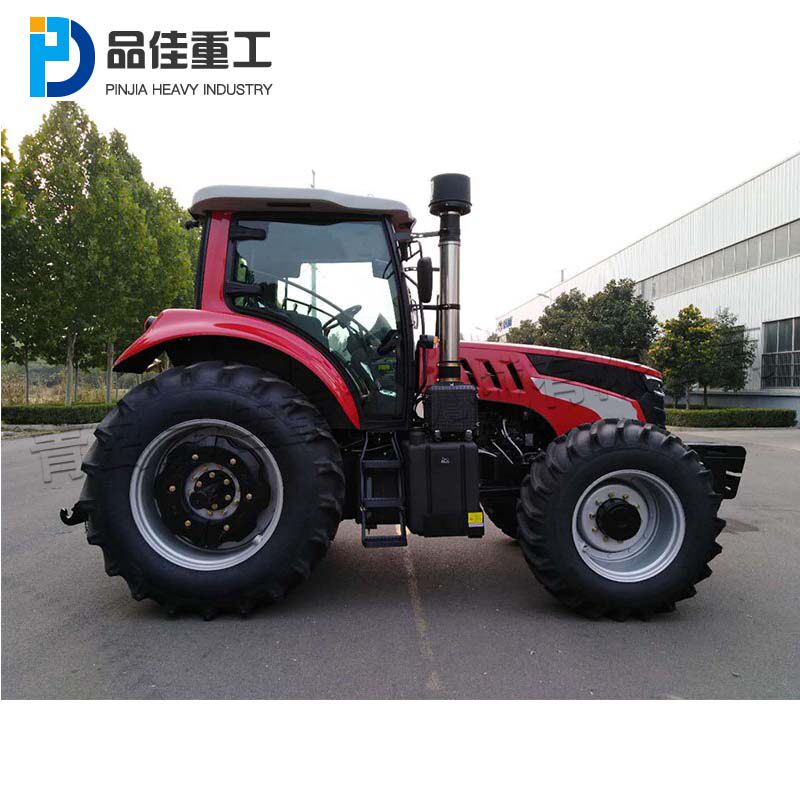

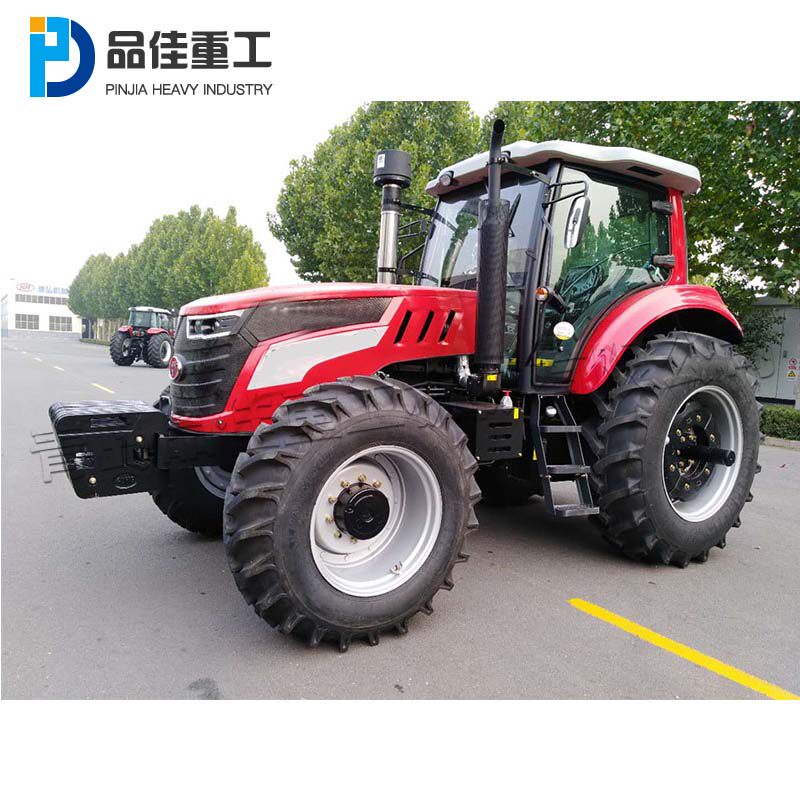

Four wheel drive tractor Agricultural grain conveyor Paddy field hilly grassland soft soil crop conveyor Item NO.: 1944971

There are both ordinary and improved luxury models, which can meet the needs of different customer groups. It can be divided into two-wheel drive and four-wheel drive tractors. The tractors have corresponding four-wheel drive deformation at the same power level. Compared with tractors with the same power, these models have the advantages of good adhesion, large traction, trafficability, operability, mobility and working stability, and can better meet the needs of paddy fields, hills, grasslands, soft and wet lands, It can be used in areas with complex terrain, with high productivity and good economic benefits. It can be equipped with hydraulic steering device, which is flexible and convenient to operate and reduces the labor intensity of drivers.

Tractor model

KH2204

Engine model

Weichai 220

Engine form

Six cylinder, in-line, direct injection, water cooling, four stroke, pressurized air-to-air cooling, electronically controlled high-pressure common rail

Calibration power

one hundred and ninety-one point three

Rated speed r / min

two thousand and two hundred

Overall dimension (length) × wide × Height (mm)

five thousand six hundred and sixty × （2130-2630） × 3200 (single row rear wheel)

five thousand six hundred and sixty × three thousand four hundred and twenty × 3200 (double row rear wheel)

Wheelbase mm

three thousand one hundred and twenty

Track width mm (front wheel)

1850, 2000 (single row rear wheel)

1850, 2000 (double row rear wheel)

Track width mm (rear wheel)

1600-2100 (single rear row), 2390 (double rear row)

Zui small ground clearance

four hundred and fifty

Rated traction kn

forty

Tire size (front wheel)

16.9-28 (single row rear wheel), 16.9-28 (double row rear wheel)

Tire size (rear wheel)

20.8-38 (single row rear wheel), 18.4-42 (double row rear wheel)

Zui small service mass kg

7410 (single rear row), 7865 (double rear row)

Clutch type

Dry, double sheet, double acting

Transmission type

Composition formula 4 × four × （1+1）

Central drive

Spiral bevel gear type / spiral bevel gear type

Final drive

Single stage planetary gear pair / single stage planetary gear pair

Steering system

Full hydraulic steering

Braking form

Disc, hydraulic control

Driving speed km / h

Forward 3.22-32.08 reverse 2.75-27.36 (single row of rear wheels) forward 4.14-39.69 reverse 2.81-29.05 (double row of rear wheels)

Maximum lifting force at 610mm of lower suspension kn

thirty-nine

Power output form

Rear mounted, independent

Power take-off shaft speed r / min

540 / 1000 (optional 760 / 850)
