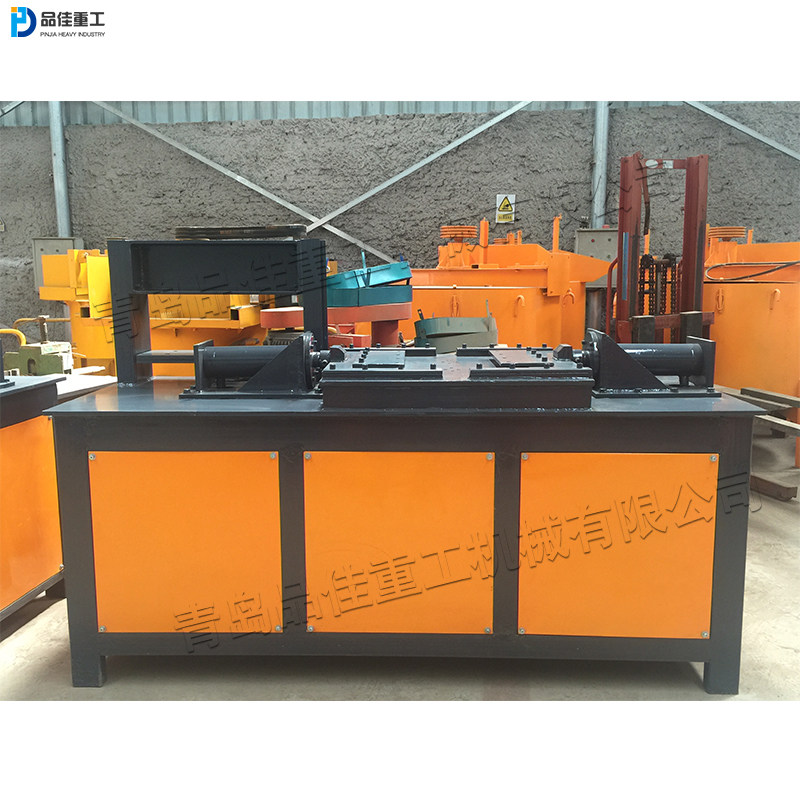

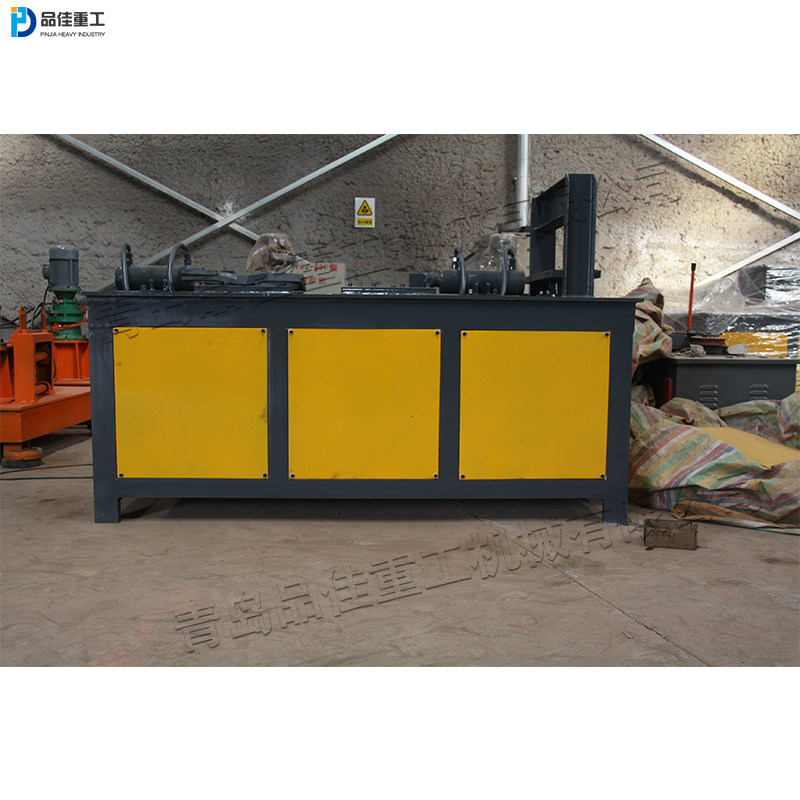

Tunnel grid flower arch full-automatic eight shaped bending press Splayed bar forming machine 8-knot processing machine Item NO.: 1938430

The forming process is mainly prefabricated reinforcement frame → horizontal plane bending forming on both sides → welding → longitudinal bending forming. Through this series of processing processes, the reinforcement splay bar forming machine can realize the processing of tunnel splay bar forming, which is a common processing process of tunnel.

The splayed bar forming machine equipment is mainly used for processing the longitudinal connecting bars of splayed steel with supporting function in tunnel reinforcement and grid arch projects, The stress of "8-shaped reinforcement skeleton grid is reasonable, which is more and more widely used. In all the environment of grid arch fabrication and construction process, the fabrication of 8-shaped reinforcement is complex, and some are self-made machines on the site. However, due to the lack of precision instruments, the data is not very accurate, which affects the construction quality.

1. Product model: yl8a-20 (reinforcement specification 20)

2. Total power: 4kw

3. Voltage: 380V

4. Hydraulic system pressure: 0-16mpa

5. Pushing speed of oil cylinder: 23-33mm / S

6. Weight: 1100kg

7. Overall dimension: 2.5m × 0.8m × 1.4m
