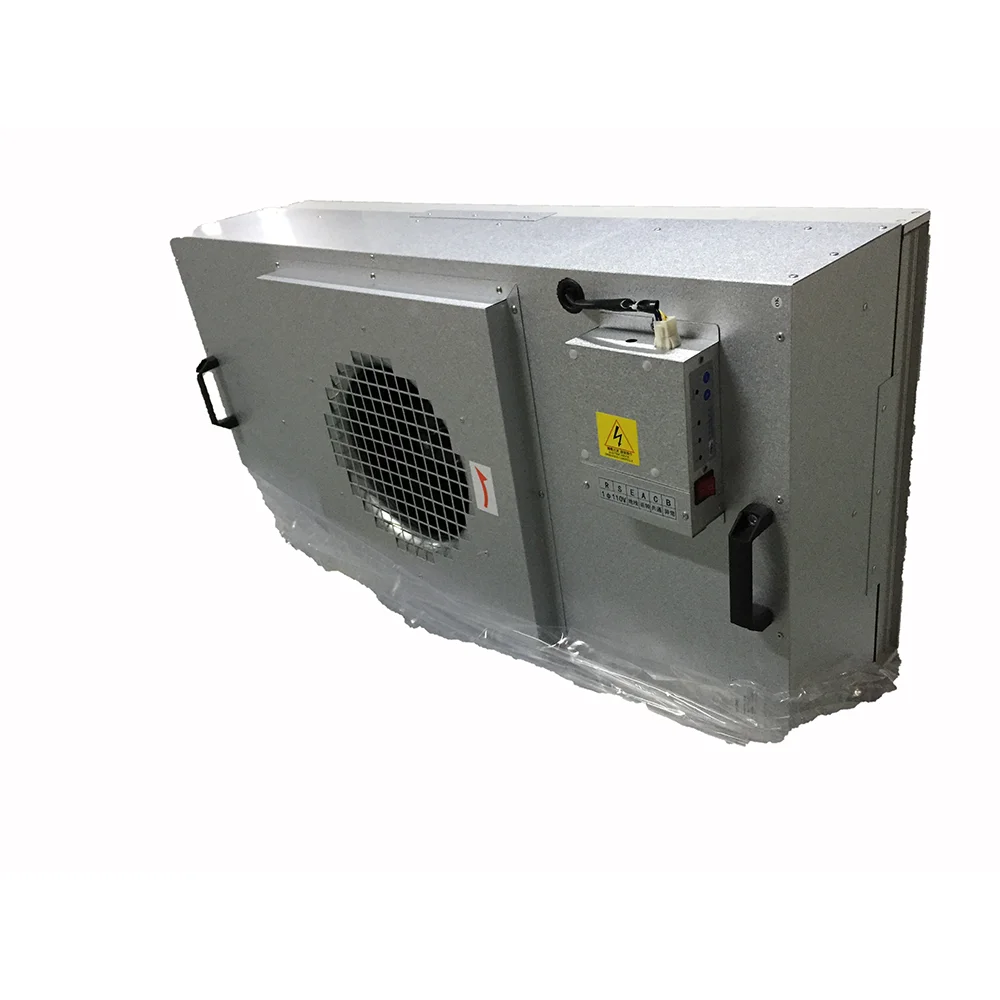

Fan Filter Unit (FFU) for Portable Class 10000 Clean Room HB575 1 order Item NO.: 1941940

Fan Filter Unit, consisting of separate HEPA filter and an attached fan housing made of aluminum.

1.The degree of cleanliness from class 1 up to 100,000 can be set and it can be set at individual area.

2.Because the back in the ceiling is a low-pressure area, the potential of the leakage is extremely low.

3.Bay method or through the wall method is possible by the arrangement of layout of FFU.

4.The volume of the air flow can be set at each area.

5.Flexible increase or change of the clean room is possible by the arrangement of Fan Filter Unit.

DESIGN:
--Air intake from above
- Turbulence displacement flow
- Turbulent mixed flow (with optional Lochblechauslass)
- Anodized aluminum body
- Individual sizes are available on request

MOTOR:
- EBM Pope EC external rotor motor
- Centrifugal fan with backward curved blades wheels
- Balancing quality G 2.5 (DIN ISO 1940)
- Control via ModBus possible

FILTER:
- G3 prefilter
- Main filter H13, H14, U15, U17 possible
- Filter frame made of aluminum
- Dry seal
- Protection grid on both sides

ABMESSUNGEN (MM)
