Home>Explosion-proof electrical apparatus>Factory Supply Industrial High Speed Mixing Reaction Stirring Pot China Liquid Pressure VESSEL Manufacturing Plant MOTOR Pump

Factory Supply Industrial High Speed Mixing Reaction Stirring Pot China Liquid Pressure VESSEL Manufacturing Plant MOTOR Pump Item NO.: 1943317

Write a Review

US$ 23000.00

Quantity: Stock ( 10 )

Estimate Shipping Cost

Factory Supply Industrial High Speed Mixing Reaction Stirring Pot China Liquid Pressure VESSEL Manufacturing Plant MOTOR Pump

Product Name	Factory Supply Industrial High Speed Mixing Reaction Stirring Pot China Liquid Pressure VESSEL Manufacturing Plant MOTOR Pump
Item NO.	1943317
Weight	20 kg = 44.0925 lb = 705.4792 oz
Category	Explosion-proof electrical apparatus
Creation Time	2022-04-19

Product Description

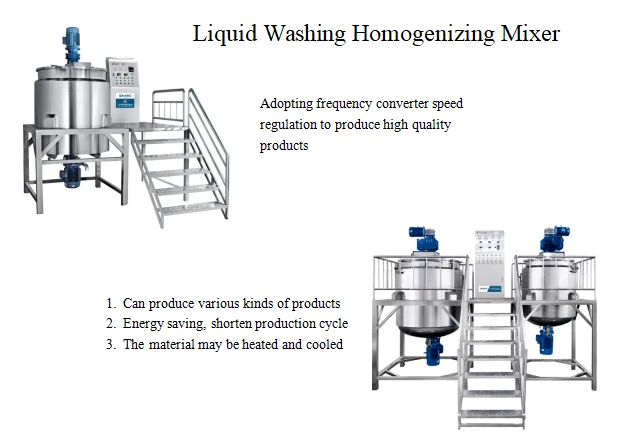

							The stirring reaction tank is mainly suitable for the preparation of liquid detergent products (such as detergent, shampoo, shower gel, etc.). This machine integrates the functions of stirring, dispersing, heating, cooling, pumping and discharging.

						The contact part of the container and the material is made of SUS316L, and the inner surface is mirror polished 300EMSH (sanitary level).


Model	Volume (L)	Blending power(kw)	Blenging rotation speed(r/min)	Homogenizing Power(kw)	Homogenizing Speed(r/min)	Heating Method
QHM-200	200	1.5	0-63	4	0-3200	Steam heating or electric heating
QHM-500	500	3	0-63	7.5	0-3200
QHM-1000	1000	4	0-63	11	0-3200
QHM-1500	1500	5.5	0-63	11~15	0-3200
QHM-2000	2000	7.5	0-63	11-18.5	0-3200
QHM-3000	3000	7.5~11	0-63	18.5-22	0-3200
QHM-5000	5000	11~15	0-63	18.5-22	0-3200

						Quality parts:

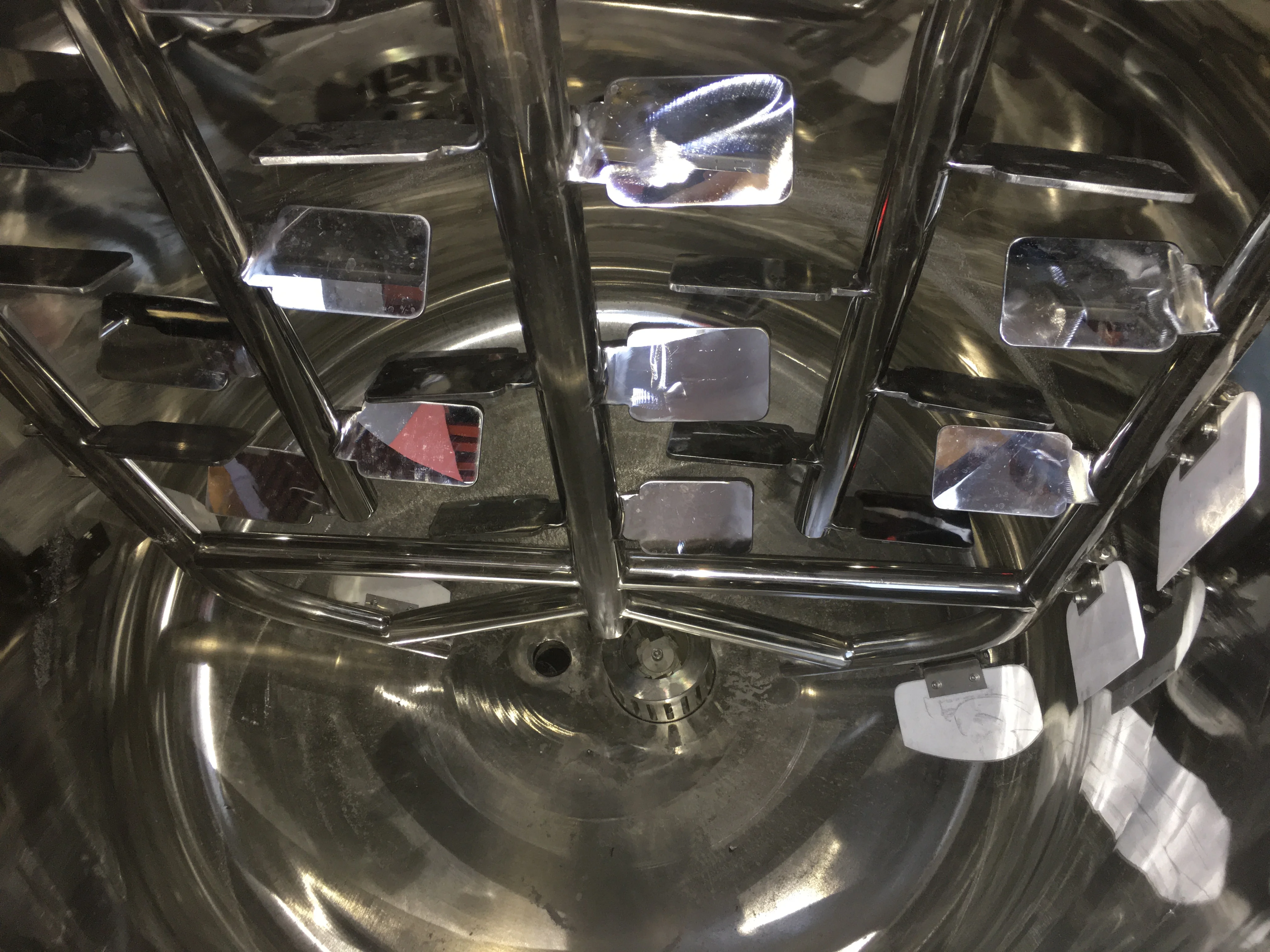

Mixing part:Material: SUS316L (GMP standard)

Speed: Slow wall scraping stirrer speed: 0-63r/min (frequency conversion speed regulation)

Siemens motor + reducer provide strong and stable power for mixer, Panasonic brand frequency inverter, PTFE material scrape blade.

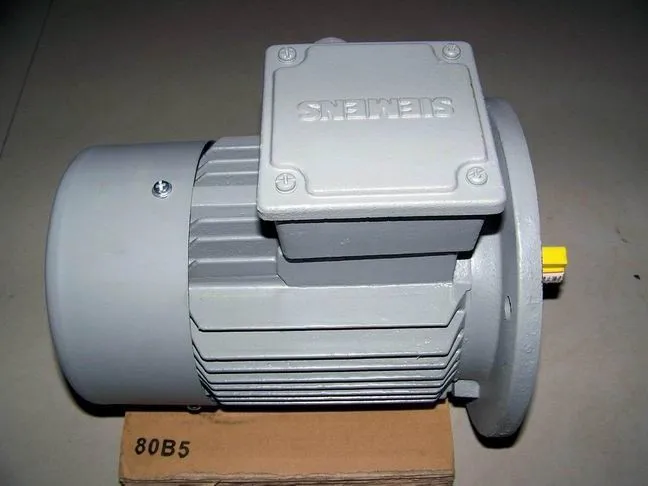

							Siemens Motor

							1. Higher efficiency levels reduce energy consumption and directly enable users to save costs!

2. The higher protection level (IP55) ensures safe and reliable use by customers.

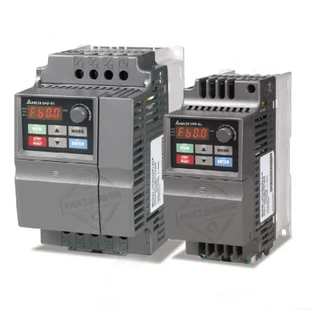

							Delta inverter

							1.High energy-saving machine efficiency

2.Efficient input and output power factor

3.Highly flexible expansion method

4.Low overall investment and maintenance costs

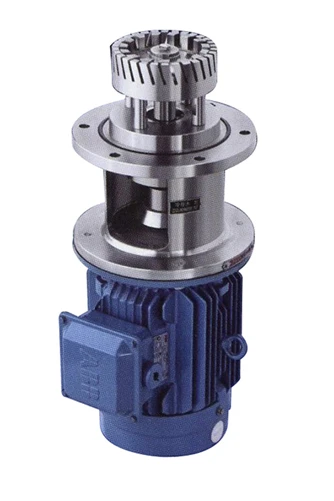

							High shear homogenizer

1. High uniformity, good polishing, energy saving, stable operation.

							2. Speed of fast homogenizing stirrer: 0-3500r/min (frequency conversion speed regulation)

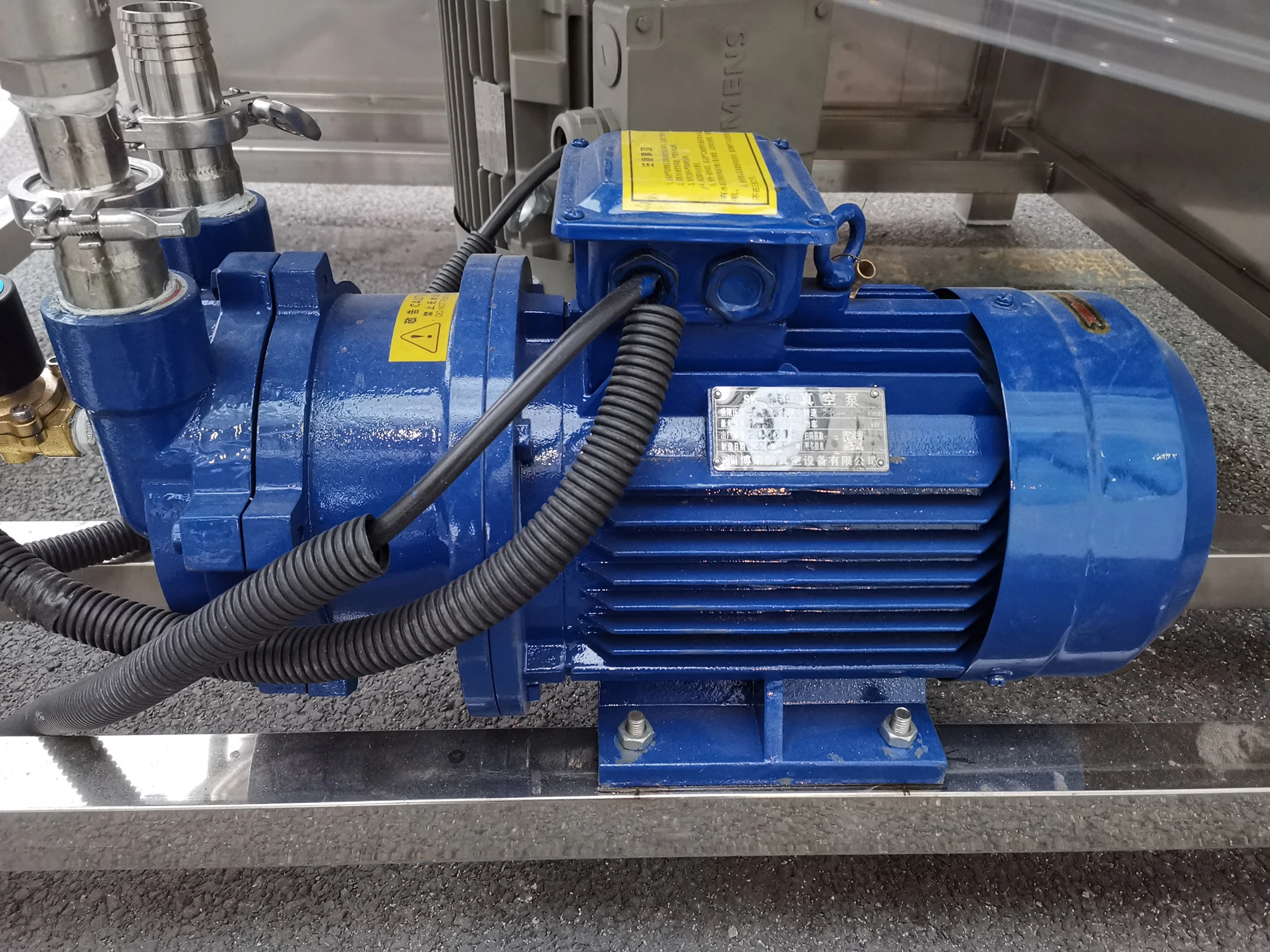

							vacuum Pump

							Effectively prevent powder materials from flying. The entire process is carried out under vacuum conditions to prevent the material from generating bubbles after high-speed stirring.

							Features:

							This unit has the characteristics of simple operation, stable performance, good homogenization performance, high production efficiency, convenient cleaning, reasonable structure, small floor area, and high degree of automation.
