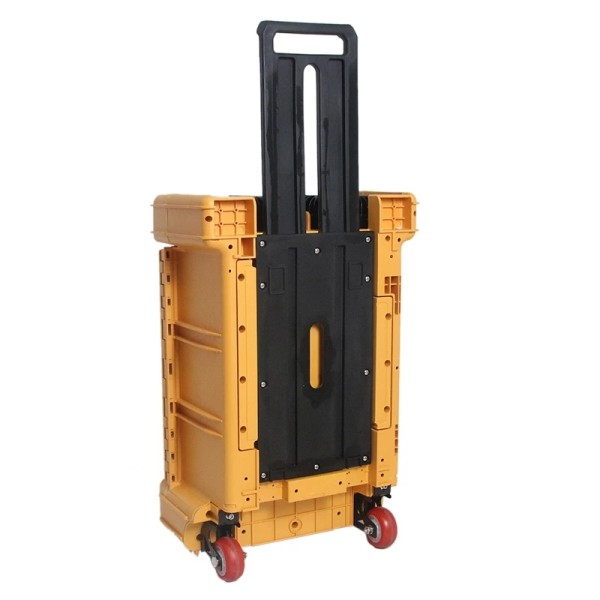

FW6118 Mobile lighting system FW6118A Outdoor survey emergency lighting maintenance construction charging lifting lamp Item NO.: 1935669

It is suitable for large-scale maintenance and construction lighting in railway public works, electricity, power supply, transportation and other places. It is also suitable for large-scale emergency lighting in power grid, public consumption and other industries.

characteristic

1. Imported high-power LED light source and double lamp cap design are adopted. The total power is up to 120W. The spotlight and floodlight can be adjusted to meet the lighting needs of different customers;

2. The integrated design is adopted, the maximum lifting height is 2m, and the lamp cap can shrink and fold quickly, which is convenient for transportation and movement;

3. The lamp uses large capacity and high energy lithium battery, which can work continuously for more than 8 hours with a full charge;

4. RFID scanning technology is adopted to quickly record the in and out of warehouse situation of spot inspection tools and equipment in batch;

5. Equipped with 3.5-inch high-definition display screen, it can vividly and intuitively indicate the entry and exit of tools and equipment, and has sound and light reminder function after spot check;

6. Light weight, equipped with walking wheel to meet the towing, portable, shoulder carrying mode, optional with rail wheel, convenient transportation and carrying.

technical parameter

1. Rated voltage: DC 21.6v

2. Rated capacity: 34ah

8. Continuous lighting time: > 8h

3. Light source (LED)

9. Charging time < 8 hours

Rated power: 2x 60W

10. Dimensions:

Shrinkage state: 650x410x260 (soil 50) mm

4. Lighting form: spotlight / floodlight

Raised state: 650x410x 2000 (soil 50) mm

5. Tool inspection induction mode: RFID

11. Weight: 20 + 1kg

6. RFID sensing distance: 0.5m

12. Protection grade: IP66 (lamp cap) / IP65 (Electrical cavity)
