Plasma flame cutting machine Portable small bee steel plate blanking machine Profiling nesting multi model cutting machine Item NO.: 1941577

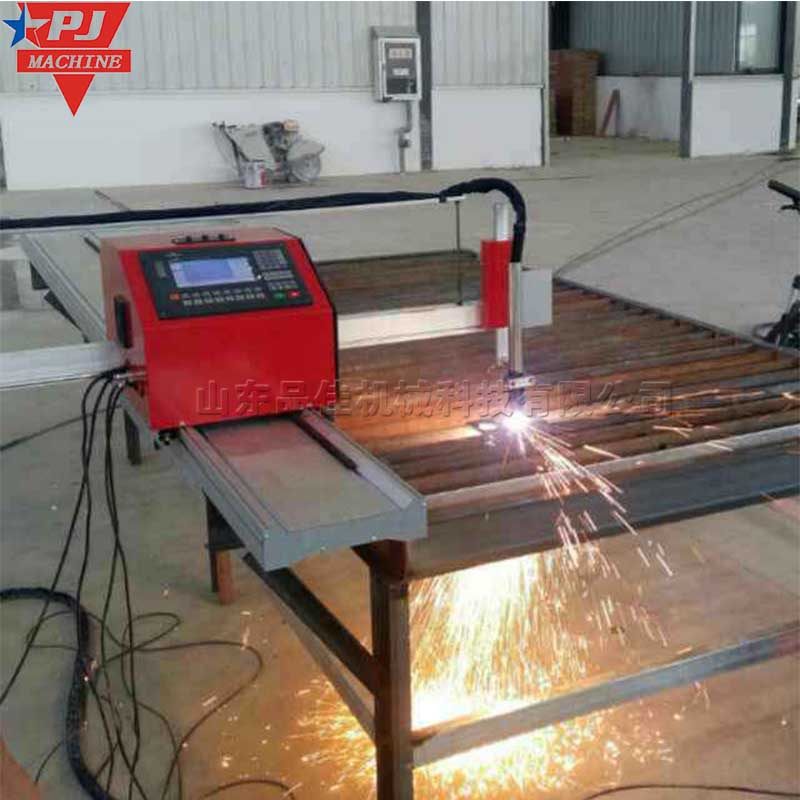

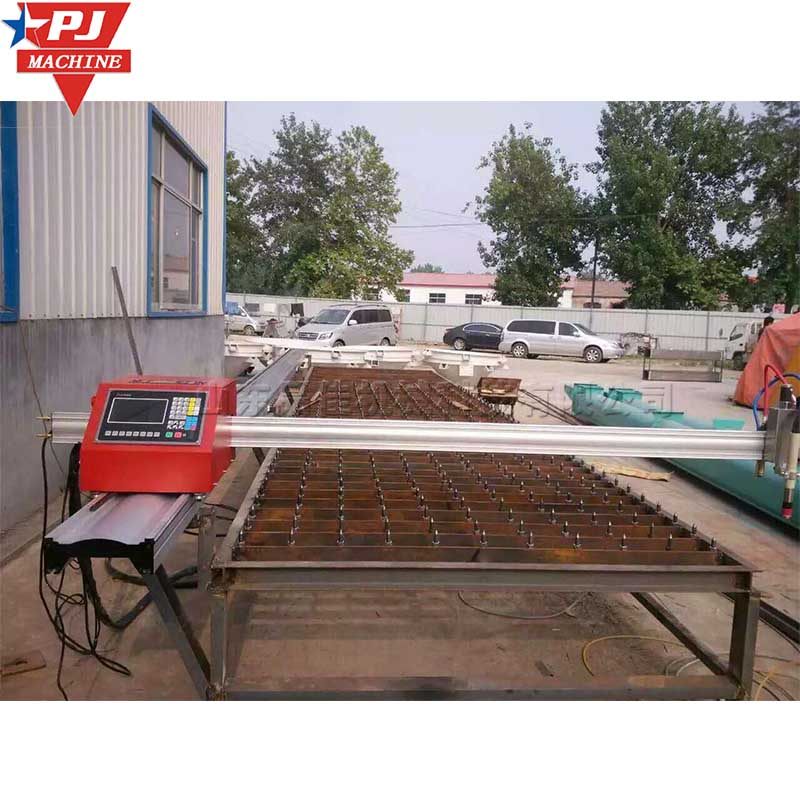

This product is a portable CNC cutting machine, which can cut any plane complex graphics and support flame and ion cutting. Reduce secondary processing and improve production efficiency. The product has reasonable mechanism, small volume, light weight, can move freely, does not occupy a fixed site, and is suitable for indoor and outdoor cutting. Software and nesting: it can convert CAD graphics or computer drawn graphics into G code for cutting parts, store the G code file in USB flash disk and input it into the cutting machine, and the system will automatically convert the G code into cutting program.

Model: 1525

Rated power: 180W

LCD specification: 5.7 inches

Main body size: 508 * 344 * 305 (length, width and height)

X-direction cutting (beam): 1500mm

Actual length of beam: 2200mm

Effective cutting in Y direction (track): 2500mm

Actual length of track: 3000mm

Track width: 196mm

Cutting speed: 0-2500mm / min

Cutting thickness (flame): 6-150mm

Cutting thickness (ion): 2-20mm

Overall weight: 70.5kg

Applicable gas types: acetylene, propane and methane

Built in 3000 kinds of optional graphics

Memory 2G can store CAD drawings

The monitor is Shanghai Fangling / Shanghai Jiaotong University

Software: American Haibao
