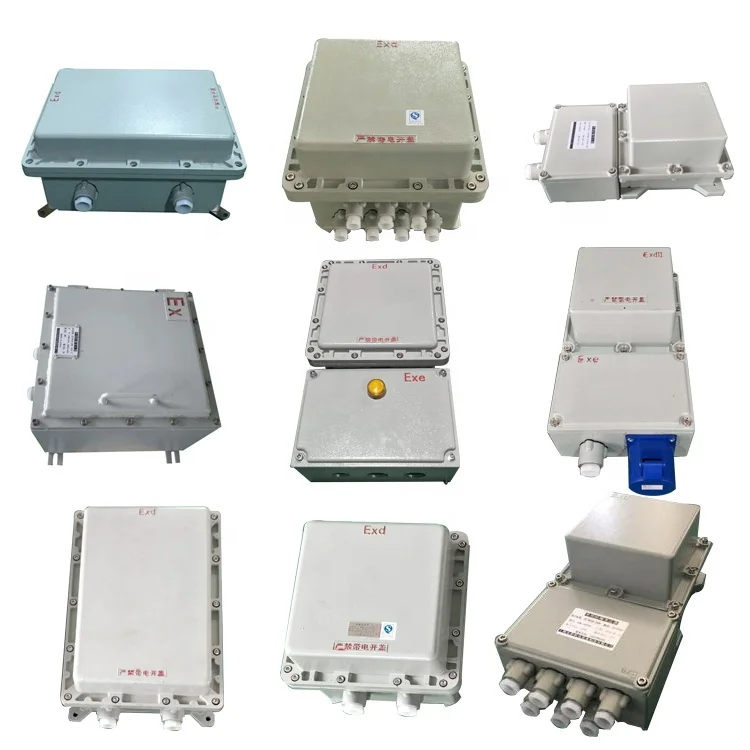

Explosion-proof transformer BBK Single-phase explosion-proof transformer Item NO.: 336154

Explosion-proof line lamp transformer

1. Applicable environment

1. Dangerous places with explosive gas mixture:

Dangerous places in zone 1 and 2;

2, with explosive air mixture: Ⅱ, Ⅱ B.

3. Temperature groups: T1 ~ T4.

4, explosion-proof marks: Exd Ⅱ

Ii. Product features

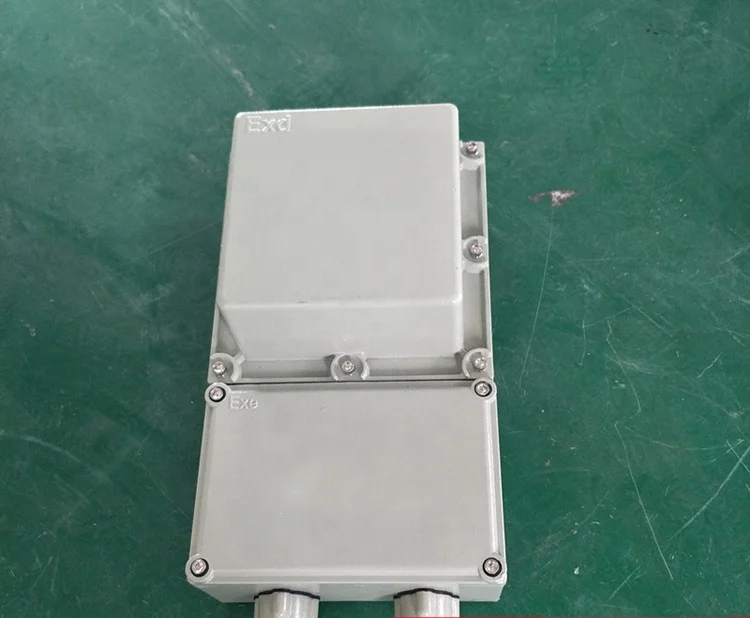

 the shell is die-cast aluminum alloy molding, if the capacity is large, you can choose to use iron box (more space to heat good) high voltage electrostatic spray surface;

 compact product structure, beautiful appearance, easy to install and maintain;

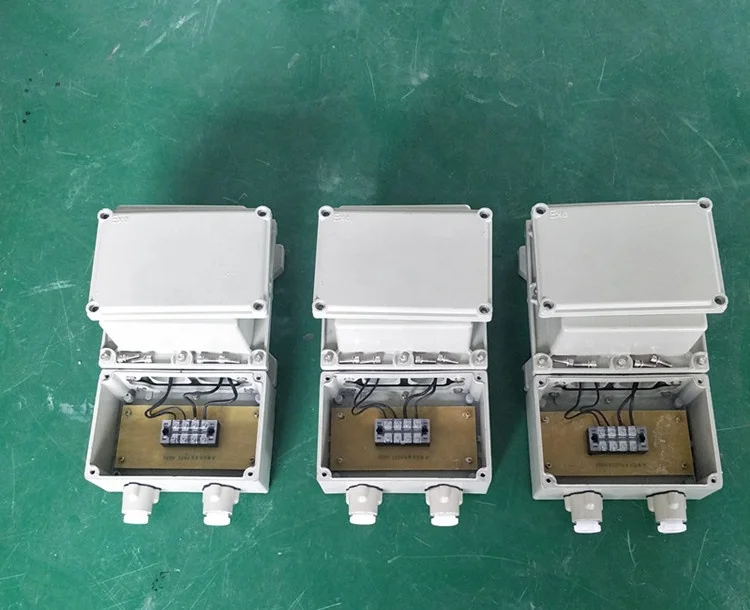

 cable or steel pipe wiring.

Iii. Technical parameters

 execution standards: gb3836.1-2000, gb3836.2-2000, gb3836.3-2000, IEC60079

S explosion-proof marks: Exd Ⅱ BT6

 protection level: IP54

 corrosion grade: WF1

 inlet specification: g3/4"

S into the wire cable: Φ 11 mm - Φ 18 mm

S wire cable: Φ 9 mm - Φ 14 mm

Primary capacity (KVA) :0.5 1

Primary voltage (V) : 220, 380

Secondary voltage (V) : 6.3 12 24 36 127

Bbk-150va150w explosion-proof transformer 220V to 24vbbk-1kva220v380v to 12V24V36V
