Explosion-proof junction box Explosion-proof round terminal box One pass two three four DN20 aluminum alloy material Item NO.: 335065

AH explosion-proof junction box

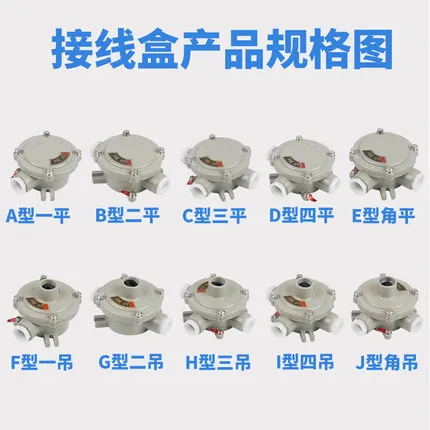

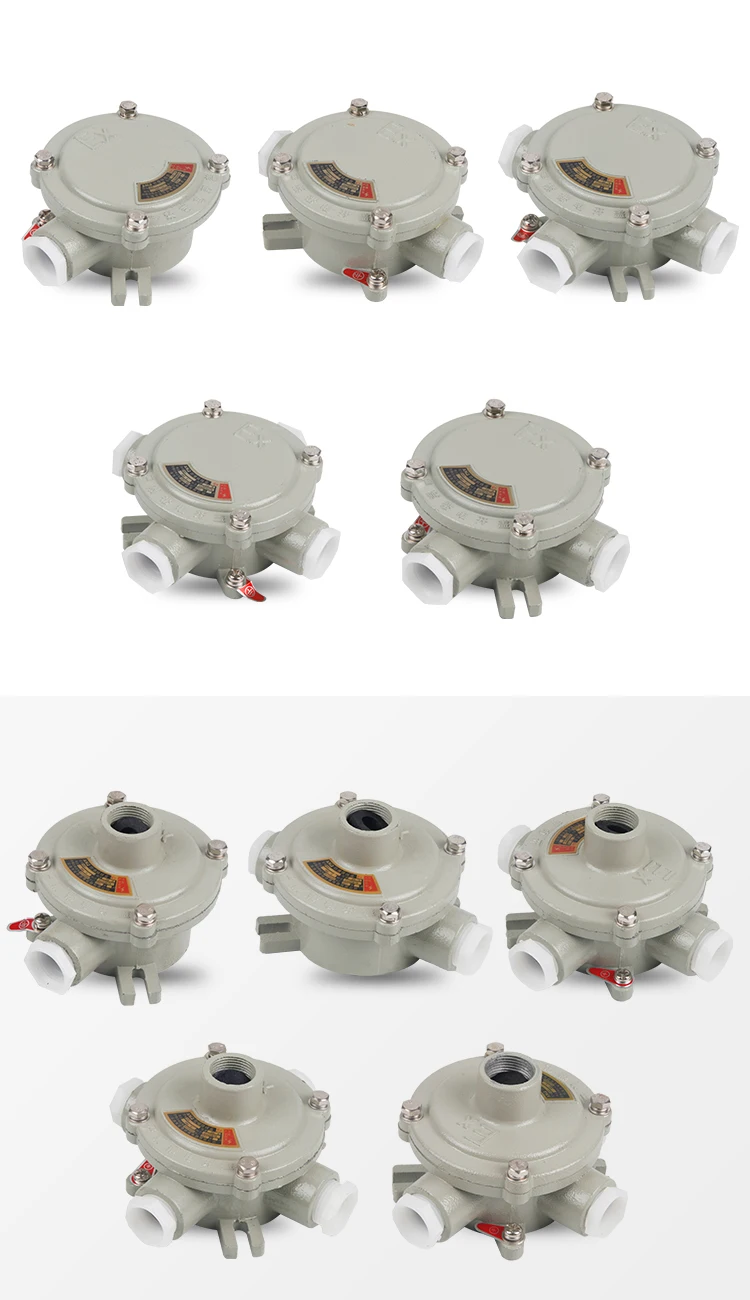

Structure code: A one-pass flat, B straight two-pass flat, C three-pass flat, D four-pass flat, E right Angle two-pass flat, F one-pass crane, G straight two-pass crane, H three-pass crane, I four-pass crane, J right Angle two-pass crane

Pipe thread: G 1/2, G 3/4, G 1, G 1 1/4, G 1 1/2, G 2

AH explosion-proof junction box application range

1. Suitable for dangerous places in zone 1 and zone 2

2. Suitable for dangerous places in areas 20, 21 and 22;

3. Suitable for IIA, IIB and IIC explosive gas environment

4. Combustible dust environment

5. Indoor and outdoor (IP65);

6. Widely used in petroleum exploitation, oil refining, chemical industry and military sites;

AH explosion-proof junction box: product features

1. Aluminum alloy shell die-casting molding, surface spray, beautiful appearance;

2. Tailor-made if diameter change is required;

3. Steel pipe or cable wiring.

AH explosion-proof junction box: main technical parameters

Rated voltage (V)

Rated current (A)

Explosion-proof marks

Specification of pipe screw (G)

Protection grade

380/220

20

Exd Ⅱ BT6 * Exd Ⅱ CT6

1/2, 3/4, 1

IP65
