Explosion-proof emergency control button switch rotary self-locking button box red mushroom head Item NO.: 335769

Name: Explosion-proof emergency control button switch rotary self-locking button box red mushroom head
SKU: 335769
Price: 15 USD
Availability: InStock

Write a Review

US$ 15.00

Customized Requirements

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Add to Cart

Product Name	Explosion-proof emergency control button switch rotary self-locking button box red mushroom head
Item NO.	335769
Weight	1 kg = 2.2046 lb = 35.2740 oz
Volume	0.02 CBM
Category	Explosion-proof electrical apparatus
Tag	Explosion-proof emergency control button switch rotary self-lock
Creation Time	2020-02-12

Packaging & Delivery

Packaging Details: Carton packaging

Port: Shanghai port and ningbo port

Lead Time :

Quantity(Pieces)	1 - 50	>50
Est. Time(days)	1	To be negotiated

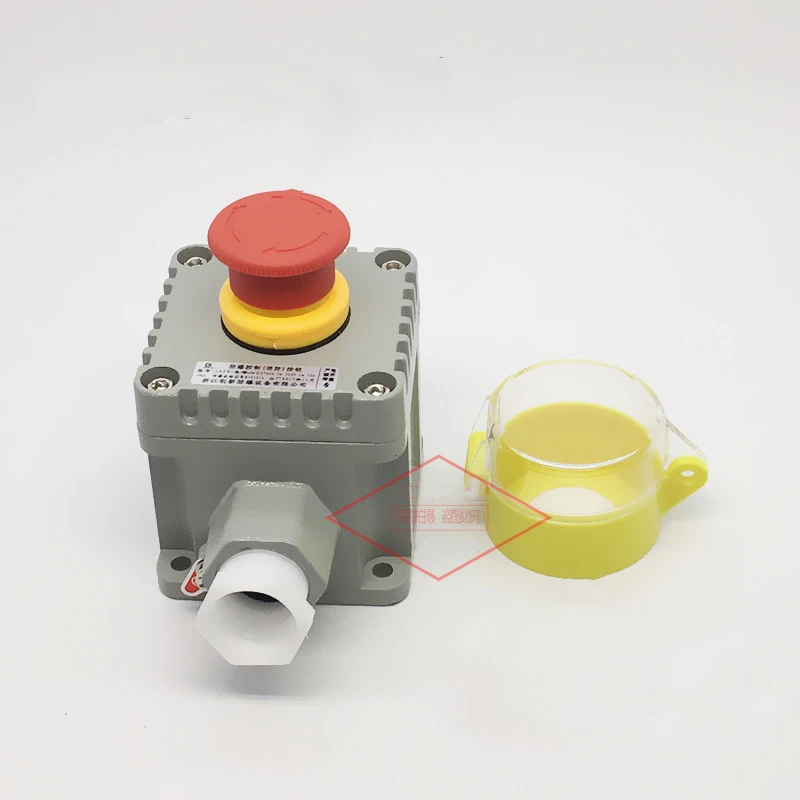

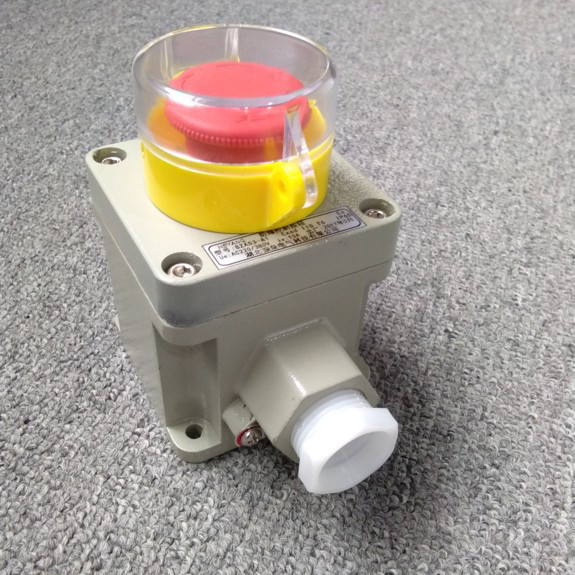

Full name: LA53 series explosion-proof control button box

[material] : cast aluminum

[color] : gray (high voltage electrostatic spraying is used on the surface)

[explosion-proof mark] : ExedIICT6

[rated voltage] : AC 380/220v /50HZ

[rated current] : 10A

[protection level] : IP65

[corrosion rating] : WF1

[specification of wire inlet] : g3/4"

[ cable specification ] : Φ 9 mm ~ Φ 14 mm

Overall dimension: 75*75*77

Emergency stop contact: one on and one off

Product features

1, cast aluminum alloy shell, plastic sprayed surface.
2. The overall structure is composite, the shell is of increased safety type, and the button, indicator light and ammeter are explosion-proof components.

3, adopt curved sealing structure, with strong waterproof, dustproof ability.

4, steel pipe or cable wiring.

Scope of application

Dangerous places in zone 1, 1 and 2.
2. IIA and IIB explosive gas environment.
