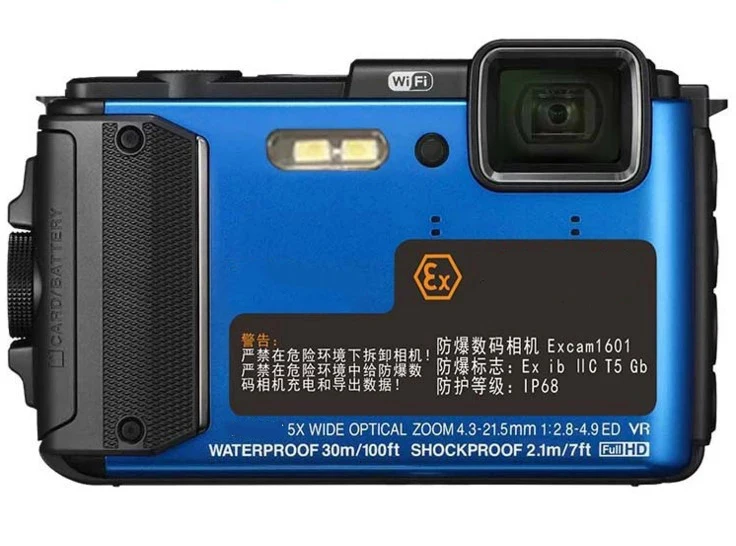

Explosion-proof camera Intrinsically safe Explosion-proof digital camera Item NO.: 1938777

Please contact customer service

Innovative advantages:
U use intrinsically safe explosion-proof technology, equipment is safer!
U only weighs 220 g, lighter!
U innovative embedded intrinsically safe LED flash, double the battery life!
U waterproof (30m), shock proof (2.1m), frost proof (- 10 C) dust proof, more comprehensive protection!
U supports WiFi and NFC, and wireless data transmission is more convenient!
Main performance parameters:
L Explosion-proof Mark: Ex IB IIC T4 Gb
1/2.3 inch CMOS image sensor
The total number of pixels is about 16.76 million.
L 5-fold optical zoom and 10-fold dynamic zoom
About 3 inches OLED display
L Waterproof (about 30m) anti-falling (2.1m) anti-freezing (-10 C)
L Built-in Wi-Fi/NFC (short range wireless communication)
L Self-contained innovative embedded intrinsically safe LED flash
L Provides 1080/60i full HD animation shooting, sound distortion
About 20G storage medium (3.6GB memory + 16G SD/SDHC/SDXC memory card, can be replaced)
L weighs only 220g
Detailed technical parameters
type
Intrinsically safe explosion-proof digital camera
Total pixel
16 million 760 thousand
Number of effective pixels
16 million 50 thousand
Image Sensor
6.2 x 4.7 mm (1/2.3 inch) CMOS (Complementary Metal Oxide Semiconductor Devices)
Camera lens
Nickel lens with 5-fold optical zoom
focal length
Focus 4.3-21.5 mm (viewing angle equivalent to that of a 24-120 mm lens in 35mm [135] format)
F value
F/2.8-4.9
Form
10 groups of 12 pieces (2 ED lens assemblies)
Digital zoom magnification
Maximum 4 times (viewing angle equivalent to about 480 mm lens in 35mm [135] format)
Shock absorption
Combination of lens displacement and electronic shock absorption
Dynamic Fuzzy Reduction
Dynamic Detection (Static Photos)
Autofocus (AF)
Contrast Detection of AF
Focus Range
[Wide-angle end]: about 50 cm to infinity, [telephoto end]: about 50 cm to infinite-distance mode: about 1 cm to infinite-distance (in wide-angle zoom position) (all distances are measured from the center of the front surface of the lens)
Focus area selection
Face priority, manual (99 focusing areas), center, object tracking, target search AF
Display
7.5 cm (about 3 inches), about 921,000 dots, OLED display with anti-reflection coating and five levels of brightness adjustment
Picture coverage (shooting mode)
About 98% horizontally and 98% vertically (compared with the actual photograph); about 98% horizontally and 98% vertically (compared with the actual photograph); about 100% horizontally and 100% vertically (compared with the actual photograph).
storage medium
About 20G (about 3.6GB of memory + 16G SD/SDHC/SDXC memory card, replaceable)
file system
Compatible with DCF, Exif 2.3
file format
Static Photos: JPEG Animation: MOV (Video: H.264/MPEG-4 AVC, Audio: LPCM Stereo)
Image size (pixels)
* 16M (high) 4608*3456*16M 4608*3456*8M 3264*2448*4M 2272*1704*2M 1600*1200*VGA 640*480*16:9 12M 4608*2592*1:1 3456*3456
ISO Sensitivity (Standard Output Sensitivity)
ISO 125 - 1600 * ISO 3200, 6400 (available in automatic mode)
metering
Matrix photometry, central focus photometry (when digital zoom is less than 2 times), point photometry (when digital zoom is 2 times or larger)
Exposure control
Programmed automatic exposure and exposure compensation (- 2.0 to + 2.0 EV, step size 1/3 EV)
shutter
Mechanical and CMOS electronic shutters
speed
* 1/1500 - 1 second * 1/4000 second (maximum speed in high-speed continuous shooting) * 4 seconds (fireworks show scene mode)
aperture
Electronically controlled preset aperture (-1 AV) and ND filter (-2 AV) selection
Range
3 (f/2.8, f/4.1, f/8.2 [wide angle end])
Selfie
You can choose 10 seconds or 2 seconds.
Flash Range (about) (ISO Sensitivity: Automation)
[Wide Angle End]: 0.5-5.2 m [Telephoto End]: 0.5-4.5 M
Flash control
TTL Automatic Flash Band Monitor Pre-Flash
Flash control
TTL Automatic Flash Band Monitor Pre-Flash
Interface
Miniature USB interface (do not use USB connectors other than UC-E21), high-speed USB
USB interface
Support for direct printing (PICBridge)
HDMI Output Interface
HDMI Micro Interface (Type D)
Wi-Fi (Wireless Local Area Network) Standard
IEEE 802.11b/g/n (Standard Wireless Local Area Network Protocol)
Scope (intuitive)
About 10m
Operational frequency (actual measured value)
IEEE 802.11b:5Mbps IE802.11g:17Mbps IE802.11n:17Mbps
security
OPEN/WPA2
access protocol
Infrastructure
