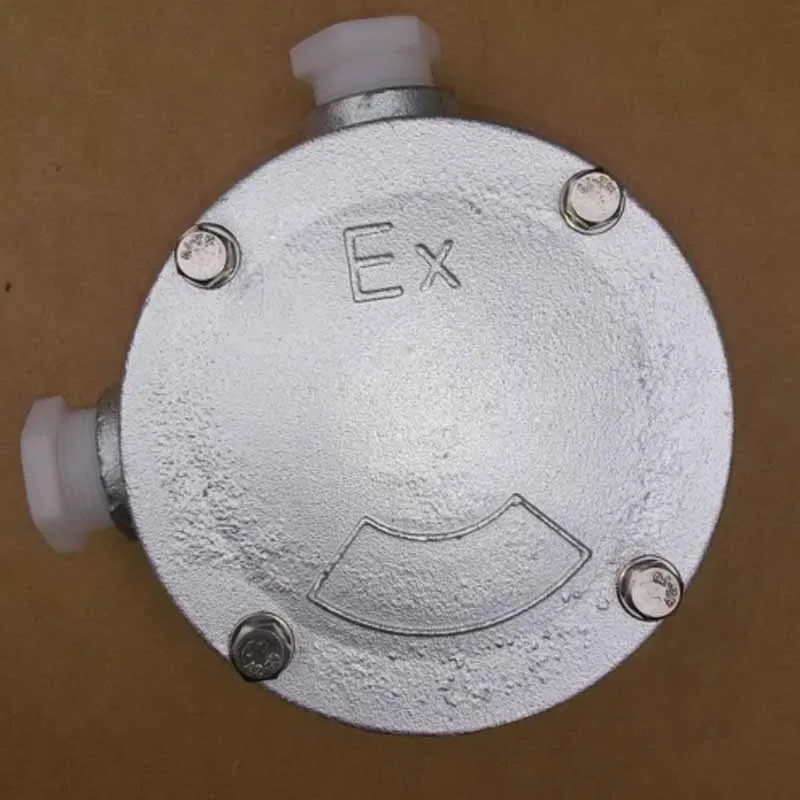

Cast steel explosion-proof junction box round cast iron explosion-proof junction box Item NO.: 335530

Cast steel junction box explosion-proof cast steel junction box cast iron wire box explosion-proof application scope:
Explosive gas environment: zone 1, zone 2,
Gas or steam categories: Ⅱ, Ⅱ, Ⅱ C B A
Standard: GB3836.1, GB3836.2, GB3836.3
Rated voltage: 380v, rated current: 20A
Explosion-proof marks: Exd Ⅱ BT6

Cast steel junction box explosion-proof cast steel junction box cast iron thread box explosion-proof ordering instructions:
When ordering, please select each item according to the meaning of the model, and specify the specifications of thread, appearance code and other parameters.
Note: 1. The type of introduced thread is pipe thread, which can also be customized according to user requirements;
2. In the conventional supply, the specifications of the lifting cover introduction port and the shell introduction port thread are the same. If there are special requirements, please indicate when ordering AH explosion-proof junction box;
3. Please specify the explosion proof type of the required products after the model number when ordering.
Example: 1. If you need to order the waterproof, dust-proof and anticorrosive junction box, and the inlet specification is g12/2 ", erping and IIC grade products, the order model will be used

Is "fhd-g12/2 2-ping (IIC)"
2. If you need to order the waterproof, dustproof and anticorrosive junction box, the specification of the entry port is g3/4 ", the product with three cranes and increased safety, then the ordering model

Is "fhd-g3/4 triple crane (e)"

Cast steel junction box explosion-proof cast steel junction box cast iron wire box explosion-proof products:
Dustproof and waterproof three-way junction box fhd-3/4 "shell is made of cast steel and its surface is sprayed with high-voltage electrostatic plastics.
There are many ways and specifications for the inlet and outlet.
The thread of inlet and outlet can be specially made, which can be made into metric thread, NPT thread and other forms.
Dustproof and waterproof three-way junction box fhd-3/4 "adopts steel pipe wiring and cable wiring.
