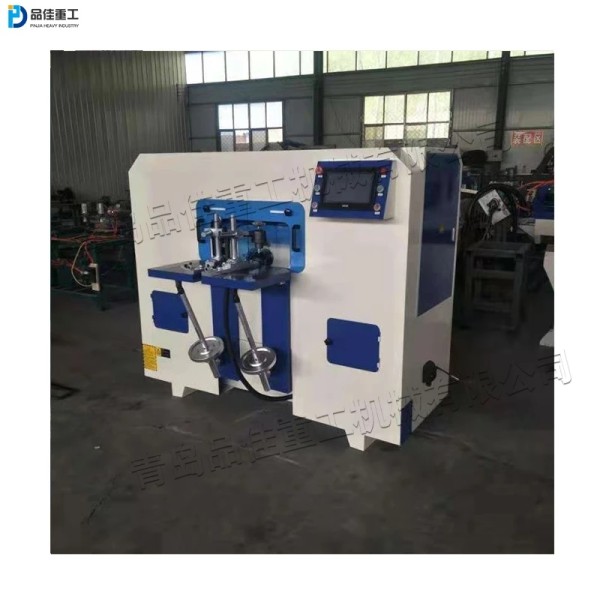

CNC woodworking automatic tenon square tenon cutting machine CNC cross waist tenon making machine Servo driven wood grinding mac Item NO.: 1944579

Write a Review

US$ 7429.00

Quantity: Stock ( 10 )

Estimate Shipping Cost

CNC woodworking automatic tenon square tenon cutting machine CNC cross waist tenon making machine Servo driven wood grinding mac

Product Name	CNC woodworking automatic tenon square tenon cutting machine CNC cross waist tenon making machine Servo driven wood grinding mac
Item NO.	1944579
Weight	3 kg = 6.6139 lb = 105.8219 oz
Category	Explosion-proof electrical apparatus
Creation Time	2022-04-22

CNC woodworking automatic tenon square tenon machine is an assembly welding cutter head. The direction of the cutter axis can be adjusted in the horizontal, vertical and inclination directions, and the tenon depth can be adjusted from the outside without opening the cover. It adopts double worktable processing and fast tenon making.

1. Total equipment power 6kw (motor power 3kw, servo motor power 1.5kw/2)

2. Processing tenon: square tenon / round tenon / horizontal waist tenon / vertical waist tenon (various tenon angles are adjustable)

3. Control system: PLC system 4. Processing speed: 45m / min

5. Tool diameter: 90 / 30 wave teeth / flat teeth 6. Air pressure requirements: 0.6/0.8mpa

7. Voltage: 380V 8. Adjustable angle of platform: 45 degrees

9. Workpiece Zui large machining size: width 140, height 120mm 10, spindle speed: 9000 rpm

11. Overall dimension: 1820 * 1100 * 1550mm 12. Weight: 900kg
