500L Stainless steel reactor Item NO.: 1936023

Write a Review

US$ 3200.00

Quantity: Stock ( 8 )

Estimate Shipping Cost

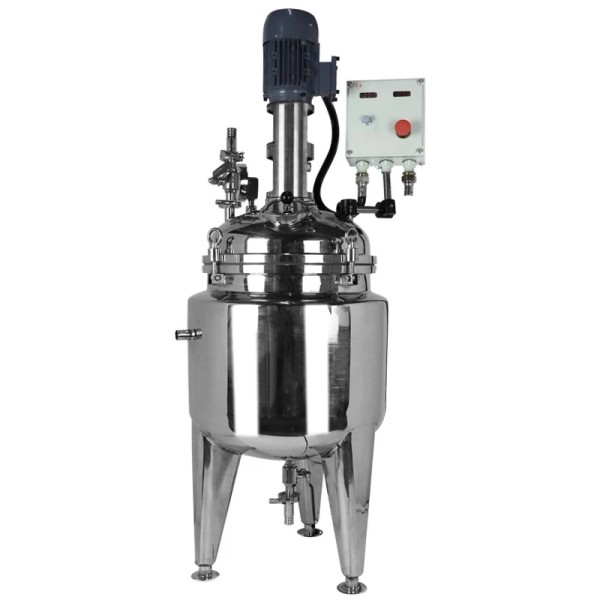

500L Stainless steel reactor

Product Name	500L Stainless steel reactor
Item NO.	1936023
Weight	15 kg = 33.0693 lb = 529.1094 oz
Category	Explosion-proof electrical apparatus
Creation Time	2022-04-09

Product Description

						 Stainless steel reactor is a new type of reaction equipment developed on the basis of absorbing domestic and foreign advanced technology. It has the characteristics of rapid heating, high temperature resistance, corrosion resistance, hygienic, no environmental pollution, no need for automatic heating of boiler, easy to use and so on. Used in petroleum, chemical, rubber, pesticide, dyes, medicine, food, used to complete the curing, nitrification, hydrogenation, alkylation, polymerization, condensation and other process



							( Different mixing methods, different mixing speeds. )

							1.Material:

							a) kettle and cover: SS 304 , SS 316, carton steel , enamel or glass lined ;

							b) jacket: SS304 or carton steel;

								2.Heating way: Electric heating, oil heating, oil, water, steam heating or firing heating. optional.

3. Structure type: Outer coil heating reactor, Inner coil heating reactor, Jacket heating reactor.

4. Jacketed type reaction kettle, coil pipe reaction still, electric heating reaction vessel, multi-function reactor, high-speed

dispersing reactor etc. for choice.

5. Mechanical seal or packing seal.

6. Supply complete production line, as well as producing technology. Other related machines as kneader, disperser, blending machine etc.are available. Quality Assurance 50~50000L Chemical reactor.

								7. OEM & ODM are welcome. We could do equipment according to your detail requirements.

Specification

Surface treatment requirements	The inner surface of the equipment is mirror polished Ra≤0.6μm, and the outer surface is treated with a matt finish Ra≤0.8μm, no sanitary corner
Container categories	Atmospheric pressure vessel.
Equipment structure	Upper and lower elliptical heads, flange connection of the cylinder, with jacket and insulation layer.
Pressure	Design pressure in tank: normal pressure, working pressure: normal pressure; Jacket design pressure is 0.3Mpa, working pressure: 0.25Mpa.
Temperature	The design temperature in the tank: 110℃, the operating temperature: 100℃; Jacket design temperature: 133℃, service temperature: 125℃
Mixing system	The motor power is 0.75KW, and the stirring speed is 36r/min.
Stirring type	Anchor stirrer;
The main material	The equipment material adopts 304;
Sheet thickness	Inner cylinder δ=4mm, jacket δ=3mm, insulation layer δ=3mm;
Insulation Materials	Rock wool

						 Corrosion resistance: organic or inorganic acid, organic solvent and weak alkaline corrosion

(not including hydrofluoric acid, containing fluorine medium, phosphoricacid, and alkali concentration greater -than 30% and temperature greater-than or equal 180 Degree;

Reactor is widely used for reaction, mixing, condensation, polymerization, vulcanization, nitration, hydrogenation in food, pharmaceutical, chemical, Alkyd resin,Polyester Resin, Epoxy Resin, Glue, Adhesive, Petroleum etc industries.
