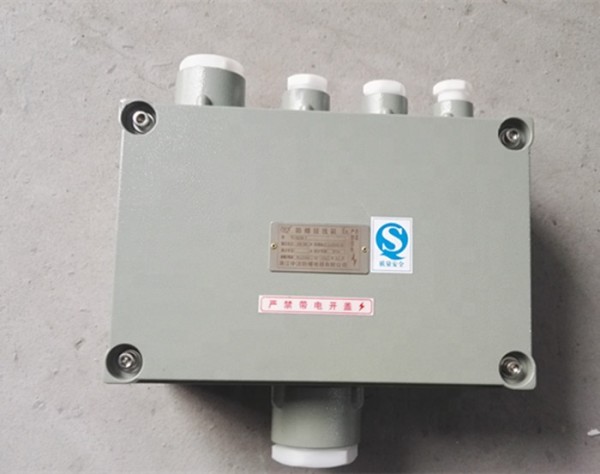

BXJ51 200 200 90 300 300 140 zeng 'an explosion-proof junction box terminal box distribution box Item NO.: 335133

Various specifications have a large number of spot: 135* 135,200 *135, 200*200, 200*200, 300*200, 300*300, 400*300, 500*400, 600*500,700*600,800*600 and other specifications can be opened according to the requirements of the line hole

Various specifications have a large number of spot: 135* 135,200 *135, 200*200, 200*200, 300*200, 300*300, 400*300, 500*400, 600*500,700*600,800*600 and other specifications can be opened according to the requirements of the line hole

I. scope of application:

Hazardous gas sites in zone 1, 1 and 2;

2, A and B Ⅱ Ⅱ, Ⅱ C T1 - T5 series of explosive gas or steam environment;

3. Indoor and outdoor IP54 and IP65

Ii. Technical features

1. Explosion-proof junction box is used for wiring and wiring of various electrical equipment in circuits below 380V.

2, the material has glass fiber unsaturated resin, stainless steel, aluminum alloy shell, surface spraying, beautiful appearance.

3. The explosion-proof junction box adopts curved sealing structure, with good waterproof and dustproof effect.

4, adopt modular structure, terminal number, inlet and outlet direction, unlimited number, can meet various requirements of users.

5, steel pipe or cable wiring.

3. Commodity features

1, shell selection of cast aluminum alloy or excellent 304 stainless steel welding molding, polished surface mirror!

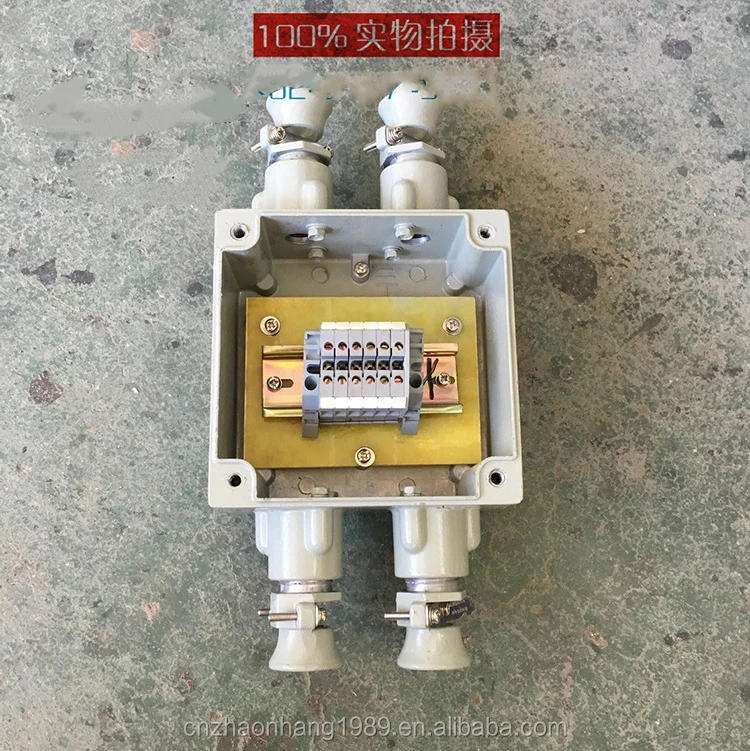

2. The connection terminals are specially designed with added safety type. The connection is easy to be robust and reliable.

3. The direction of the inlet can be determined according to the user's needs, and the BDM series cable clamping sealing connector can be directly installed according to the user's needs.

4, the thread can be specially made, can be made into metric thread, NPT thread and other types!
