Home>Explosion-proof electrical apparatus>American Large Waterproof Fireproof Junction Box,Square Explosion Proof Junction Box Aluminum soft starter, starting from 80A +

American Large Waterproof Fireproof Junction Box,Square Explosion Proof Junction Box Aluminum soft starter, starting from 80A + Item NO.: 1943324

Write a Review

US$ 180.00

Quantity: Stock ( 10 )

Estimate Shipping Cost

American Large Waterproof Fireproof Junction Box,Square Explosion Proof Junction Box Aluminum soft starter, starting from 80A +

Product Name	American Large Waterproof Fireproof Junction Box,Square Explosion Proof Junction Box Aluminum soft starter, starting from 80A +
Item NO.	1943324
Weight	10 kg = 22.0462 lb = 352.7396 oz
Category	Explosion-proof electrical apparatus
Creation Time	2022-04-19

Products Description

American Large Waterproof Fireproof Junction Box,Square Explosion-proof Junction Box Aluminium


Product Feature

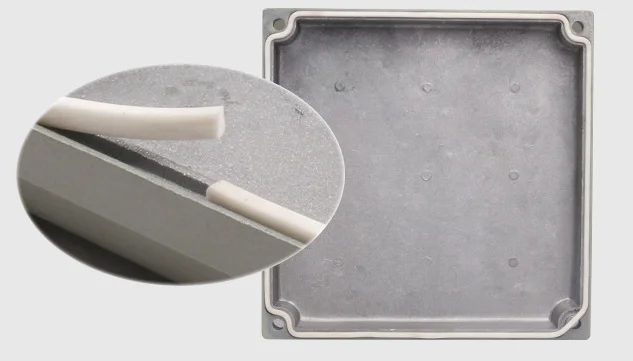

							1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray. Shell compact structure, high density material strength, explosion-proof performance, the surface of plastic powder adhesion ability with good anti-corrosion, the surface smooth, elegant appearance. 

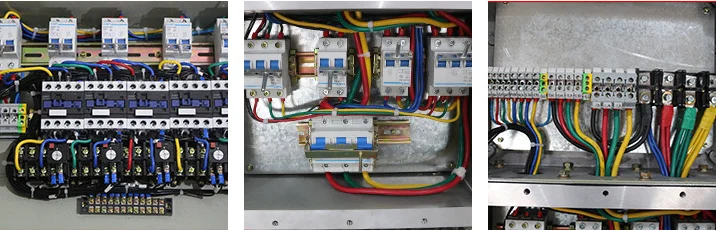

							2.Install inside component: C65, C120, NSK, D247, CM1 breaker, signal light and so on. If other special components are needed, it should contact with the engineering technical of company. 

							3.It has functions of overload protection, short-circuit protection, earth leakage protection and light control. 

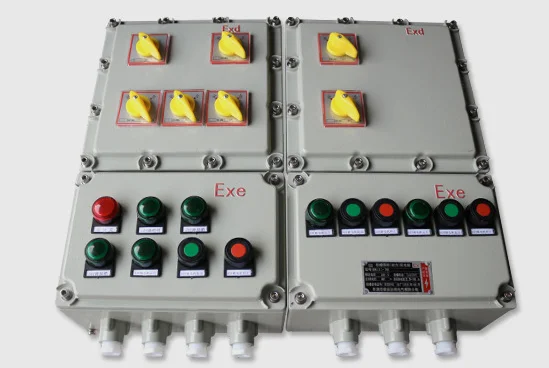

							4.This product is compound modular construction, switch cavity is flame-proof type, generatrix cavity and connecting line cavity are increased-safety type, it can combine each loop freely in terms of customer’s requirements. 

							5.It can be customized: like adding SPD (surge protection device), ampere meter, voltmeter, mutual inductor and so on. The material of conventional products’ operating handle is engineering plastics, and the operating handle can add padlock. The material of miniature circuit breaker’s padlock handle is high-strength aluminum alloy. 

							6.Steel tube, explosion-proof flexible pipe, explosion-proof cable, wiring is ok.

Product Paramenters

Model	Rated Voltage (v)	Rated current of major loop	Branch number	Master switch number of major loops (set)	Nominal voltage of branch
BXM(D)51-4	380 220	60-250	4		1 3
BXM(D)51-6			6		5
BXM(D)51-8			8		10
BXM(D)51-10			10		15
BXM(D)51-12			12		20
BXM(D)51-4k			4	1	25
BXM(D)51-6k			6		32
BXM(D)51-8k			8		40
BXM(D)51-10k			10		56
BXM(D)51-12k			12		60

Model	Explosionproof Sign	Pipe Thread		Cable's Outside Diameter		Protection Grade
		Inlet	Outlet	Inlet	Outlet
BXM(D)-51-4	ExdeIIB=II2G ExdeIIBT5(European standard) DIP A20 TA，T5=II1D ExtD A20 T5(European standard)	G11/4"	G11/2"	ф18 ф22	ф10~ф22
BXM(D)-51-6
BXM(D)-51-8				ф30
BXM(D)-51-10
BXM(D)-51-12							IP54 *IP65
BXM(D)-51-4K		G3"	G11/2"	ф18 ф22	ф10~ф22
BXM(D)-51-6K
BXM(D)-51-8K				ф30
BXM(D)-51-10K
BXM(D)-51-12K

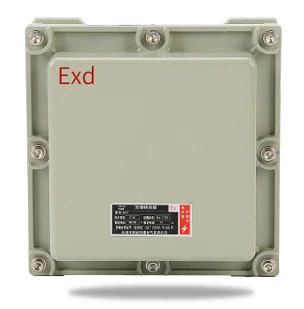

Details Images

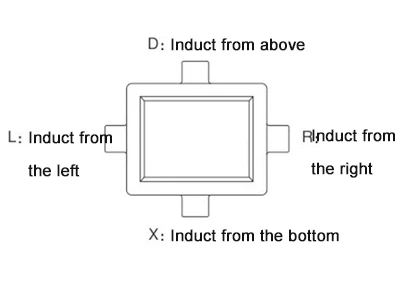

Size

Applications

Dangerous places like zone 1, zone 2, zone 20, zone 21 and zone 22 
IIA, IIB explosive gas atmosphere or flammable dust atmosphere 

Indoor, outdoor (IP54, IP65*) 

Temperature group: T1~T4/T5/T6 

Widely used in petroleum, chemical industry, aviation & military industry
