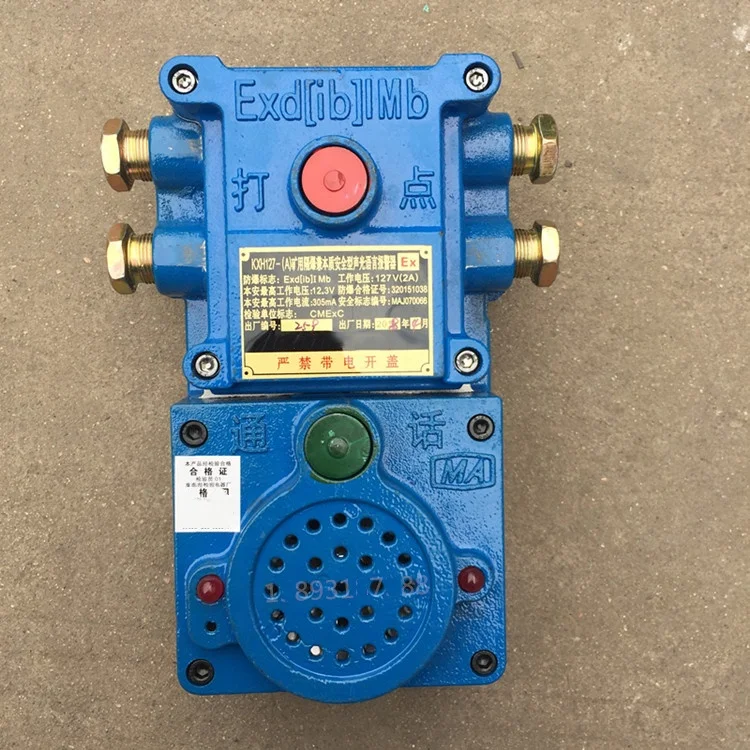

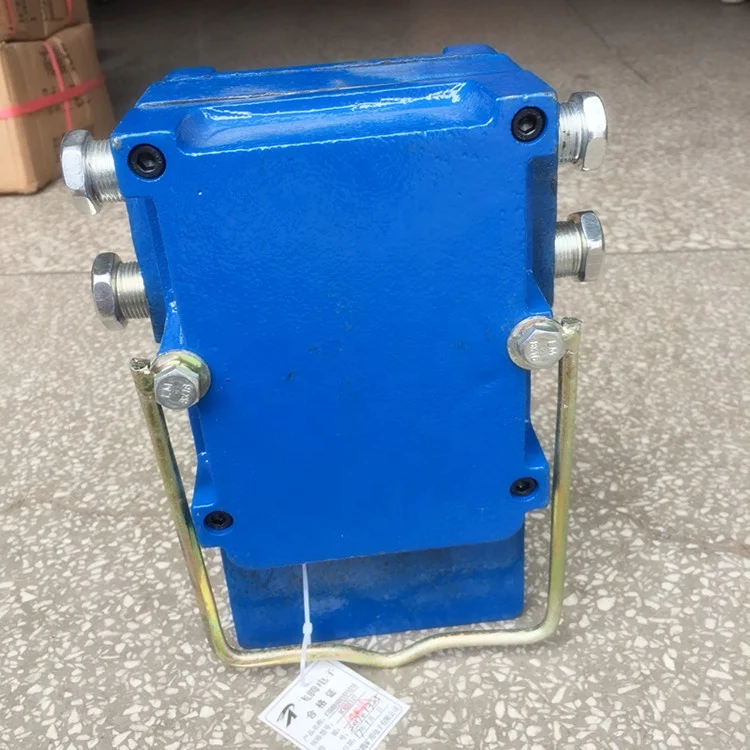

KXH127 mine flameproof and intrinsic sound and light signal device with emergency stop type voice sound and light alarm Item NO.: 335138

1. An overview of the
This product is a comprehensive mine explosion-proof and intrinsically safe acousto-optic signal device, which integrates voice call, electric bell and emergency stop blocking.
Use 8.8 inner hexagon screw fastening, product technical requirements are more strict.
The model of the acousto-optic annunciator is KXH127. The explosion-proof type of the annunciator is mine explosion-proof and safety type. Explosion mark :EXDIMB.
Model description of mine explosion-proof and intrinsically safe acoustooptic annunciator:
KXH: mine signal equipment
127: rated working voltage is 127V
Suitable for coal mine underground methane, coal dust explosive mixture, but no damage to the corrosive gas insulation occasion.

2. Product structure features
Acousto-optic signal set acousto-optic, signal, call, emergency stop function as one.

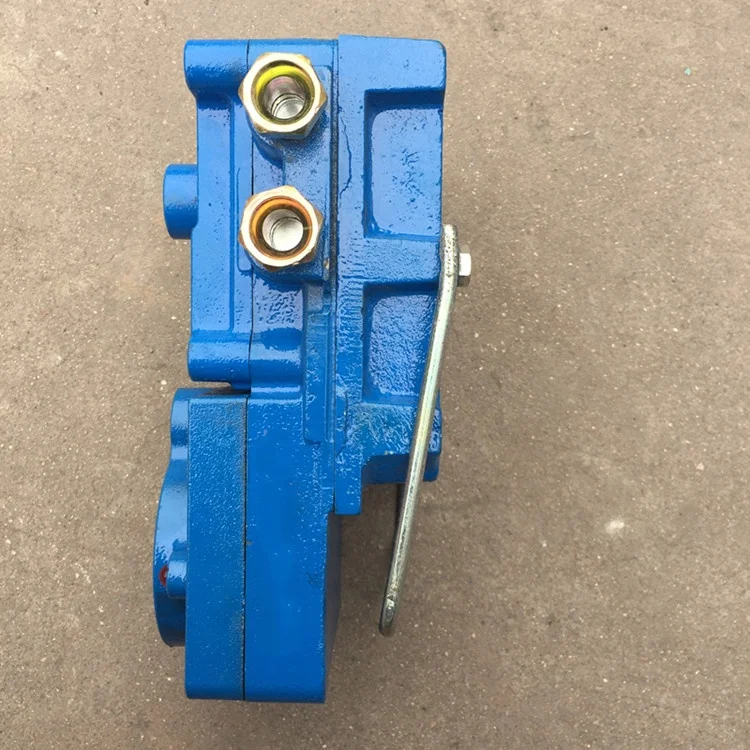

The structure is designed to directly introduce the flameproof structure, and the flameproof wiring terminal is installed in an independent wiring cavity. There are four wiring outlets in the wiring cavity, and two wiring outlets are used for signal power supply input and output.
The circuit diagram is optimized. The power supply adopts linear circuit with better safety performance, double overcurrent voltage protection, and relay isolation for higher safety.

3. Main technical parameters
Size: 325 * 193 * 125 mm
Weight: 8.5kg/ piece
Power supply: working voltage AC127V, working current ≤200mA
Working mode: dot and simplex intercom
Dot signal form: red light signal
Light visibility: no less than 30m
Carrier operating frequency range :(196~204) kHz
Maximum communication distance: not less than 1000m
Number of online stations: at least 2, can connect more than 20.

4. Main functions
The annunciator can communicate with the on-line acousto-optic annunciator;
An electric bell is emitted when the signal is activated, accompanied by a red light-emitting tube display.

5. Installation and operation
Open the front cover of the flack proof chamber, connect the terminal post to the power supply (127V), and connect the middle output line of the other terminal post. Ground core. System access power first press the dot button to see if the other instrument has dot ring and flashing light signal; Press the call button again and talk into the microphone to see if the other one can hear you, and if so, connect. Press the emergency stop button, the emergency terminal should be a path, and the indicator light will be on. Shut down the power supply first remove, when not in use the outlet hole sealed.
