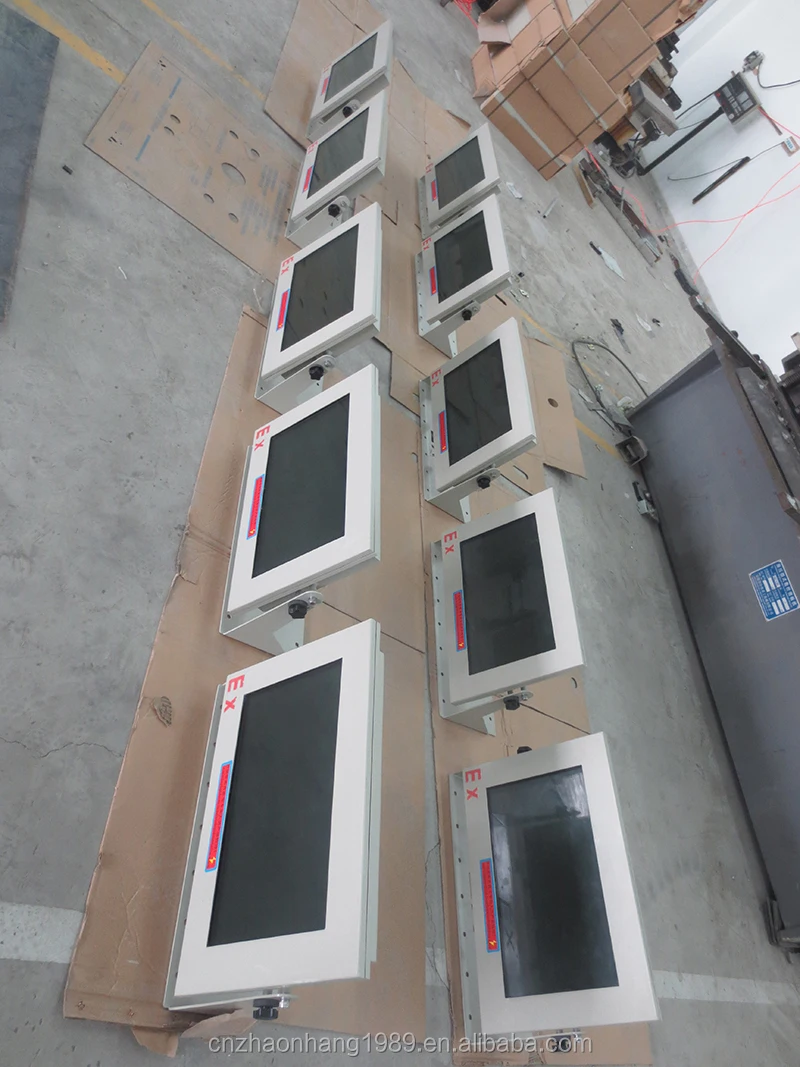

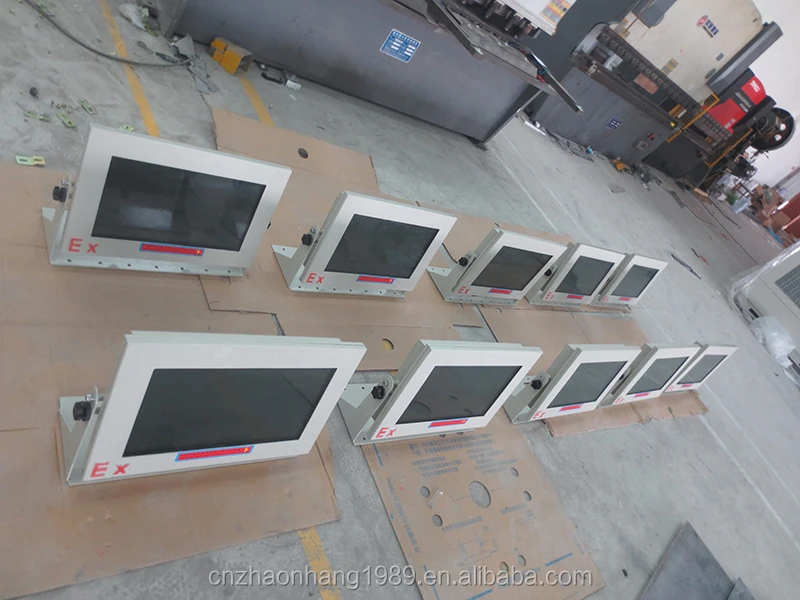

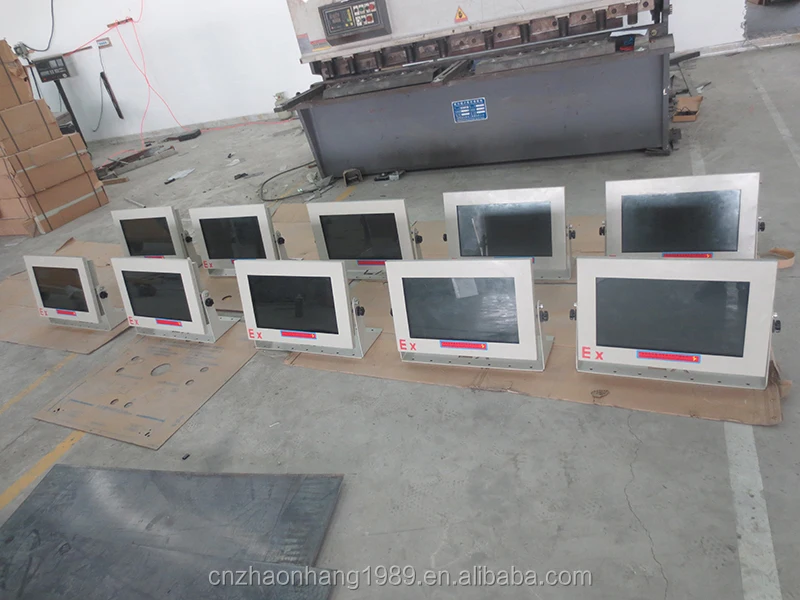

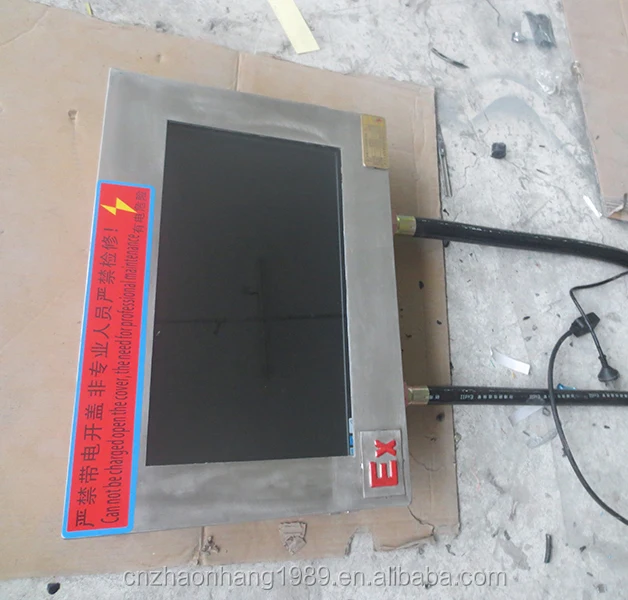

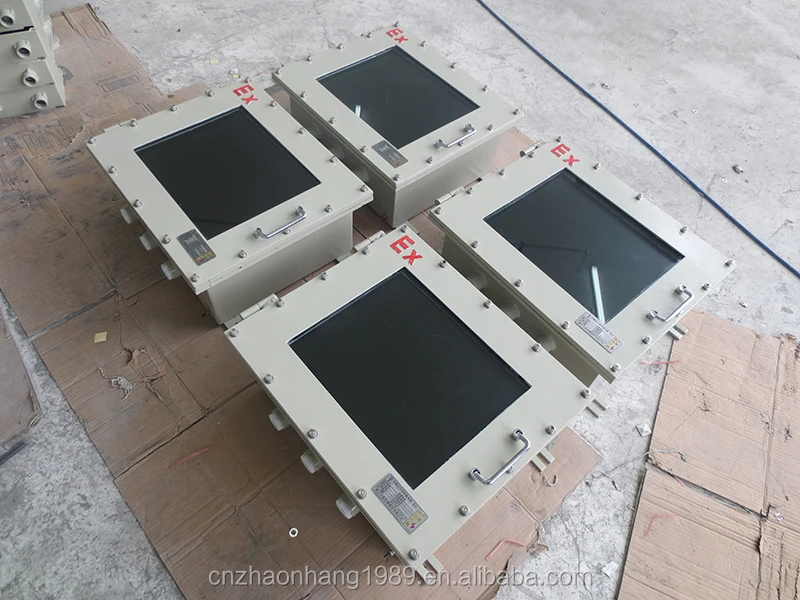

17 explosion-proof display yhj-171 explosion-proof display LED screen Item NO.: explosion-proof display

I. product features
It can be used for on-site monitoring in explosion-proof areas. The high-quality LCD panel VGA signal input or composite video signal input plane board design can fully save space. Lightweight appearance, easy to handle and use can be adjusted according to the usage of viewing Angle protection grade IP65.
Ii. Product description
Explosion-proof display is a special equipment designed for explosion-proof industrial TV system, which changes the situation that the display can only be placed in the control room, and can provide clear and intuitive monitoring screen for users in the dangerous explosion-proof area, greatly improving the flexibility of system configuration
The explosion monitor USES a high-quality 17-inch LCD panel with a resolution of 1280x1024 and a point distance of 0.264mm. Working range of 220VAC voltage.
VGA interface and standard video interface, support NTSC and PAL system.
The display window is made of special tempered flat glass, which ensures the display effect of the picture while being durable. The equipment can work stably from -20℃ to +60℃ for a long time.

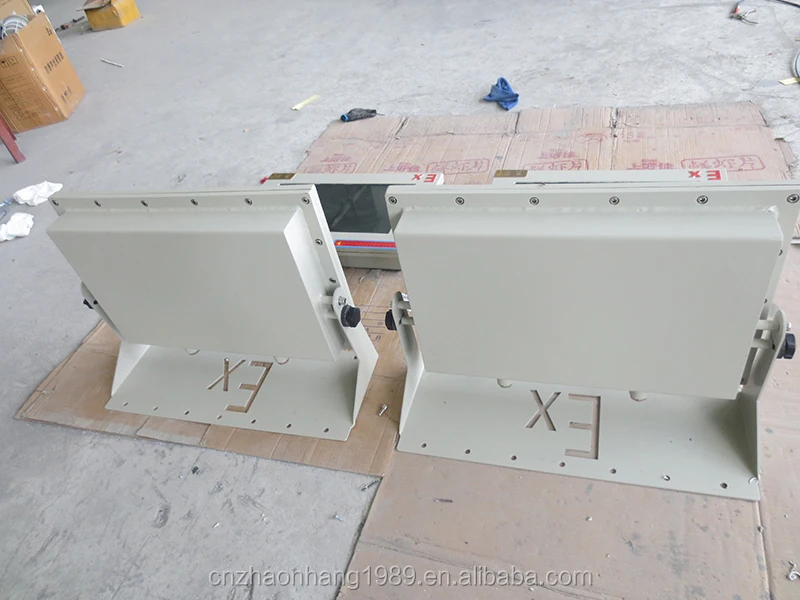

The explosion-proof display is mainly installed on the desktop or platform, or can be lifted by special bracket.
Three, certification
Explosion-proof marks Exd Ⅱ BT6 explosionproof qualification card number
4. Mechanical indicators
Stainless steel 304 or 316L. Protection grade IP65
Weight 22.5Kg transport weight 25Kg
Number of outlet holes 2 specifications of outlet hole thread g-3/4"
Vertical placement or special bracket hoisting
V. electrical indicators
Input voltage 100VAC~240VAC power consumption 30W
Input signal 1 way composite video signal or 1 way RGB analog signal input, factory support one of them
Panel switch 1 self - locking power switch. Electrical connection 3 core power cable, video input 1
Root coaxial cable with BNC plug, RGB analog input 1 cable with 15-pin d-sub
