Product features

The lamp cap can be pulled arbitrarily to adjust the irradiation angle to improve the work efficiency. The battery box is equipped with the power real-time display function, and the remaining power of the battery can be known at any time without any operation, which is convenient for the charge and discharge maintenance of the lamp.

The high-energy memoryless Ni MH battery pack can be charged and discharged at any time. It has the advantages of small volume, light weight, green environmental protection, long service life, extremely low self discharge rate, and the storage capacity within half a year after one drink charging is not less than 85% of the full capacity.

Aluminum alloy die-casting shell, the outer surface is treated by high-temperature surface spraying process, tight internal structure design, the product is light and exquisite, fully sealed process, can work normally in rainstorm environment, and can withstand strong collision and impact; technical parameter

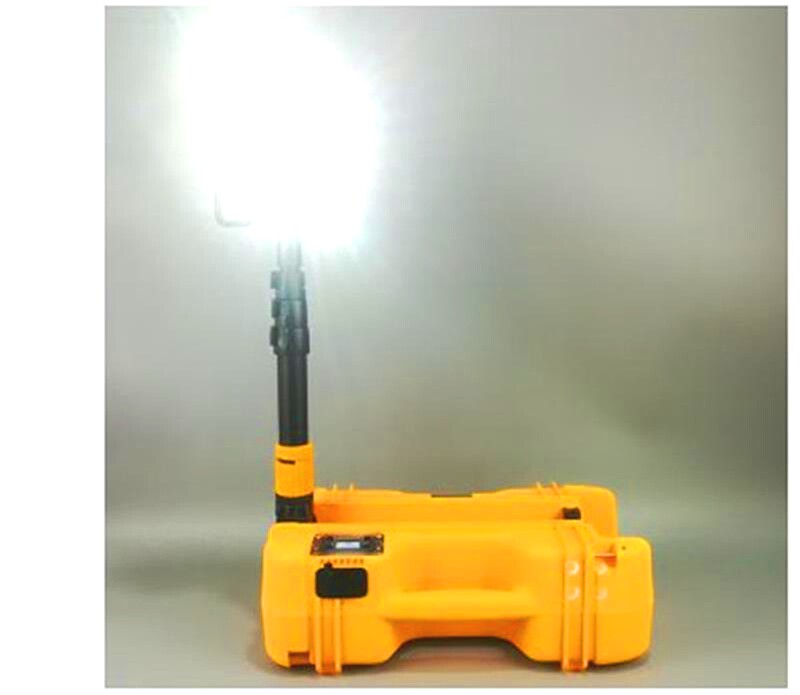

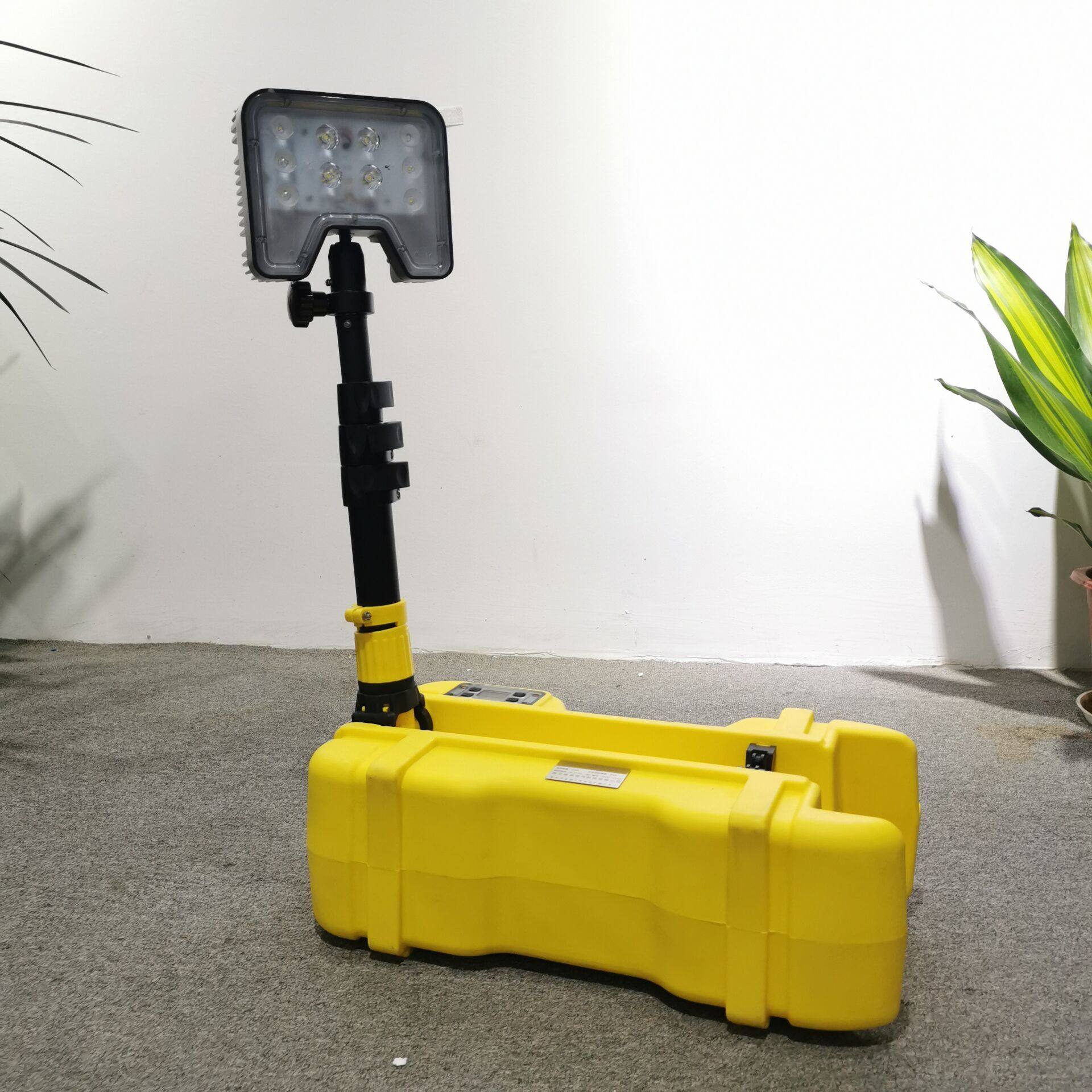

The lamp has the advantages of small volume, light weight and convenient carrying. It can be carried by hand and back. It can be installed with rail wheels to facilitate users to move on the railway monorail. The unique lamp cap structure design can be used as long-distance lighting with spotlight, and can also be easily converted into floodlight for large-area lighting. With standard USB output interface, it can charge mobile phones and other digital products, which solves the problem that users can't use mobile phones or other digital products when they run out of power during outdoor operation.

Humanized design, LCD display screen is adopted to display different lighting modes in real time, intuitive power display, stepless dimming can be realized manually, and LCD display screen can intuitively display the lighting time of battery power.

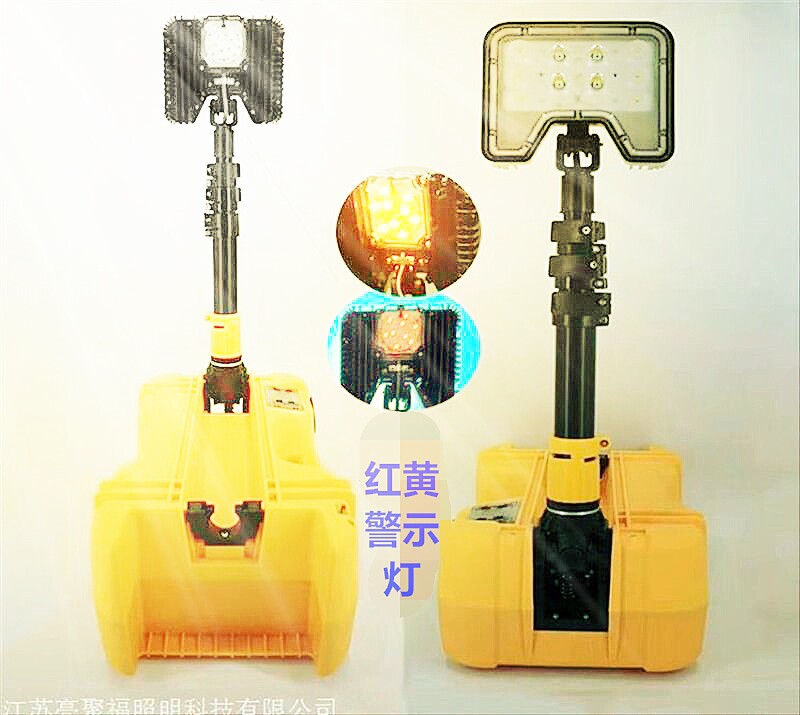

International brand LED light source is adopted, with high luminous efficiency, service life up to 100000 hours, ultra-low power consumption, strong light can work continuously for more than 8 hours, floodlight can reach 12 hours, spotlight can reach 16 hours, lighting can be turned on separately, and 10% ~ 100% stepless dimming can be used to match on-site use. It fully meets the needs of lighting duration of various operations. Safety and humanized design. Red and yellow (optional) warning lights are set on the back of the lighting lamp cap, which can effectively warn the traffic at the use site, protect the safety of on-site operators and meet the lighting needs of different places.

Technical parameters:

1. Rated voltage of battery: dc21.6v

2. Rated capacity of battery: 13Ah

3. Light source (LED); Rated power: 35W; Service life: 100000h

4. Lighting form: spotlight / Omni

5. Dimming form: 10% - 100% stepless dimming

6. Warning light color: Red / yellow

7. Continuous lighting time: more than 8 hours

8. Charging lighting: about 6 hours

9. Battery life: about 100 cycles

10. Overall dimension: shrinkage state 510 * 290 * 220mm; Lifting state: 510 * 290 * 1500mm

11. Weight: less than 8kg

12. Protection grade: IP65 (lamp cap) IP54 (box)
