Outdoor High Voltage Three Phase 15KV 20KV 27kV Vacuum Circuit Breaker VCB Pole Mounted Auto Automatic Recloser

Product Name	Outdoor High Voltage Three Phase 15KV 20KV 27kV Vacuum Circuit Breaker VCB Pole Mounted Auto Automatic Recloser
Item NO.	1942203
Weight	3 kg = 6.6139 lb = 105.8219 oz
Category	Explosion-proof electrical apparatus
Creation Time	2022-04-18

Product Description

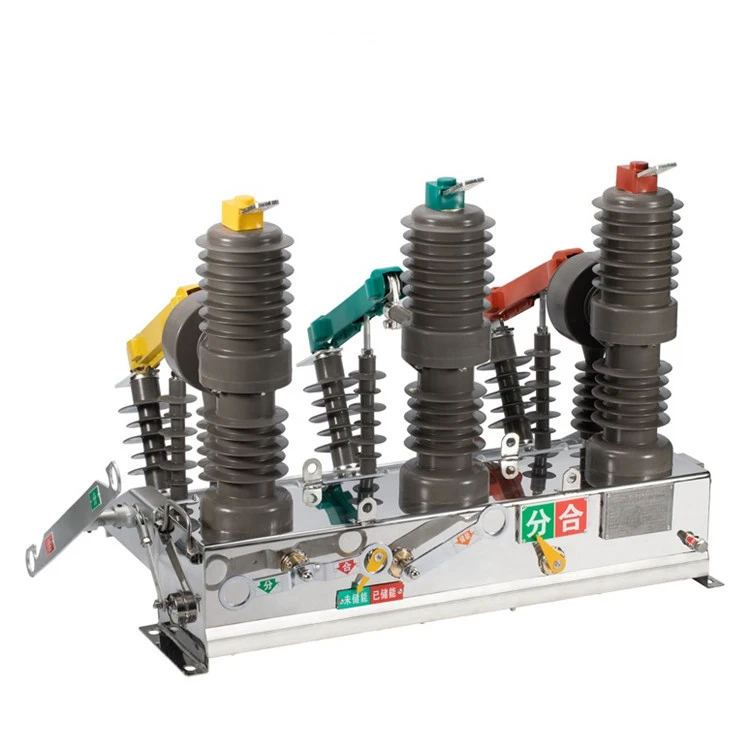

						YNOT-VCBtype high voltage Outdoor 3 pole Vacuum Capacitor Switch(auto circuit recloser) is designed for special purpose and electrical application, it is a long mechanical life vacuum switch that provides an operational life of over 100,000 (30,000 open / close) maintenance-free operations. YNOT-VCB vacuum circuit breaker will result in substantial savings from reduced maintenance and maximized bank uptime and will also improve power quality. It complies with standards ANSIC37.66 and China standard. The vacuum switch is availiable for 33KV 35KV 36KV 38KV 40.5KV.

						It is an outdoor high voltage circuit breaker which is used for three-phase power system of AC 50Hz and voltage 10-12KV, to make and break the load current, it has the overload and short-circuit protection, meeting the requirements of control and measurement, it also can realize the remoter control and monitor. It is suitable for the control and protection of distribution system in the transformer substation and industrial and mining enterprise or in the location which needs the frequent operation at rural power grid.

						It also has motorized spring type & magnetic actuator (with control box) type.

Feature

					* No arcing distance and high safety

* High breaking capacity, and complete accessories

* Compact structure

* With complete and reliable intelligent protection functions

* Integration communication, compatible to many protocols

* Simple installation, fixed or drawer out connection for main circuit

* It can bring communication interface, realize remote control, telemetry, remote communication, remote adjustment.

* Phase spacer door frames are standard
